Copure SPE (HLB family)
Biocomma Copure HLB: PS/DVB copolymer, pH 0–14, 500–750 m²/g, 200–400 Å, cartridges from 30 mg/1 mL to 500 mg/12 mL.
View product
Reference: COHLB24200-lim

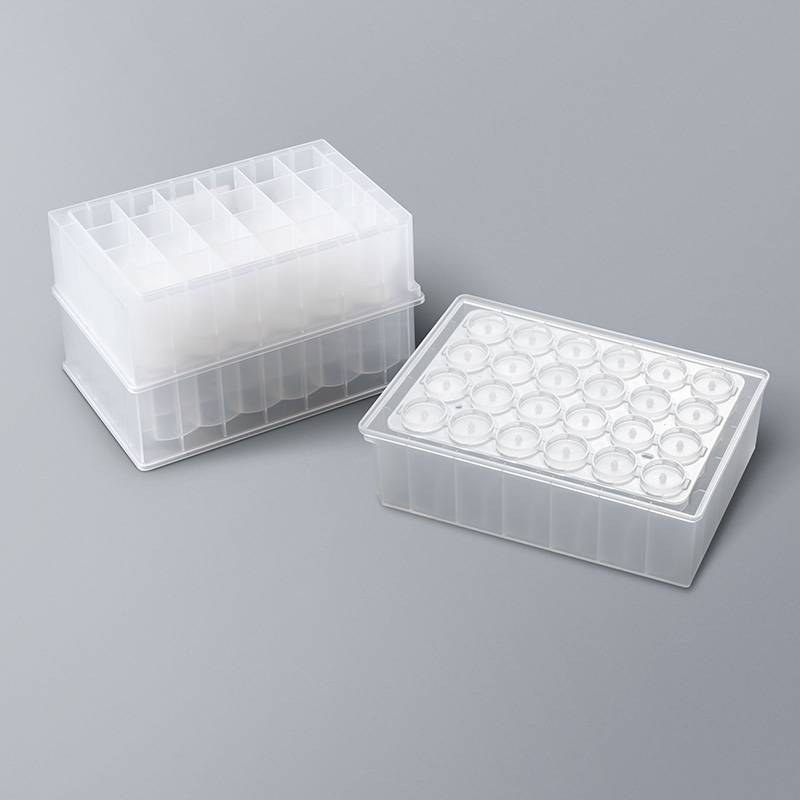

Copure® 24-Well HLB Lim Plates
24-well HLB Lim clean-up plates that remove fat, phospholipid and pigment interferences without activation or equilibration, shown for 36 veterinary drug residues in pork, chicken and shrimp.
Key specifications
- Format
- 24-well clean-up plate
- Sorbent
- HLB Lim media (removes fat, phospholipid and pigment interferences)
- Workflow
- Activation and equilibration steps skipped
- Validation example
- LC-MS/MS of 36 residues (tetracyclines, sulfonamides, quinolones) in pork, chicken and shrimp; recoveries 60-110% at 10 and 20 ng/g spikes; CV < 10% (n=8)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Copure® 24-Well HLB Lim Plates
Request a quoteOverview
Product overview
Copure® 24-Well HLB Lim Plates process 24 samples at a time and suit automated preparation workstations. The HLB Lim sorbent removes interfering impurities such as fat, phospholipid and pigment quickly and efficiently, limiting matrix effects.
Activation and equilibration steps are skipped, and use with the biocomma® Positive Pressure 24 Processor simplifies the purification process. Biocomma reports good stability, with reduced experimental error and higher reproducibility.
In the application example, an LC-MS/MS method for 36 residues of tetracyclines, sulfonamides and quinolones in pork, chicken and shrimp gave recoveries of 60-110% at 10 and 20 ng/g spikes, with CV values below 10% (n=8). The plate is listed as COHLB24200-lim, with a vortex mixer, processor, collection plate and nitrogen evaporator as related items.
Specifications
Technical specifications
9 parameters
Product
- Format
- 24-well clean-up plate
- Sorbent
- HLB Lim media (removes fat, phospholipid and pigment interferences)
- Workflow
- Activation and equilibration steps skipped
Application example
- Validation example
- LC-MS/MS of 36 residues (tetracyclines, sulfonamides, quinolones) in pork, chicken and shrimp; recoveries 60-110% at 10 and 20 ng/g spikes; CV < 10% (n=8)
Ordering information
- COHLB24200-lim
- Copure® 24-Well HLB Lim Plates; 1 pc/box
Related products
- SDC-3000-D
- biocomma® Multi-Tube Vortex Mixer; 1 set/carton
- BCY2402
- Positive Pressure 24 Processor; 1 set/carton
- 24WP-S100
- 24-well collection plate, square well; 1 pc/box
- BCN2403
- 24-Well Intelligent Nitrogen Evaporator, flat-bottom plate; 1 set/carton
Features
Key features
- 01
High throughput
24 samples at a time for automated preparation workstations.
- 02
Limited matrix effects
HLB Lim media removes fat, phospholipid and pigment interferences quickly.
- 03
Simplified workflow
Activation and equilibration steps are skipped.
- 04
Documented performance
Recoveries of 60-110% and CV below 10% (n=8) for 36 residues in pork, chicken and shrimp.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
