Crimp-Top Headspace Vials (20 mm)
20 mm crimp-top headspace vials in 10 mL and 20 mL sizes, clear or amber USP Type 1 borosilicate glass, with aluminum caps and septa for headspace autosamplers.
Key specifications
- Material
- USP Type 1 borosilicate glass
- Opening
- 20 mm crimp-top
- Bottom style
- Flat bottom
- Pack quantity
- 100 pcs/box
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Crimp-Top Headspace Vials (20 mm)
Request a quoteOverview
Product overview
These crimp-top headspace vials are supplied with aluminum caps and have excellent sealing properties, making them suitable for headspace autosamplers. They are made of USP Type 1 borosilicate glass with a flat bottom and a 20 mm crimp-top opening.

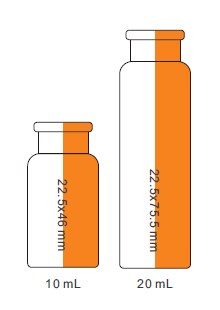

Two capacities are listed: 10 mL (22.5 x 46 mm) and 20 mL (22.5 x 75.5 mm), each in clear or amber glass. Matching crimp-top aluminum caps with a 10 mm hole are available either plain or with PTFE/silicone septa in several colour combinations. All items are packed 100 per box.
Specifications
Technical specifications
8 parameters
General
- Material
- USP Type 1 borosilicate glass
- Opening
- 20 mm crimp-top
- Bottom style
- Flat bottom
- Pack quantity
- 100 pcs/box
Vial catalog numbers
- 10 mL vial
- V8-10T (clear), V8-10A (amber); 22.5 x 46 mm O.D. x L
- 20 mL vial (write-on spot)
- V8-20T (clear), V8-20A (amber); 22.5 x 75.5 mm O.D. x L
Caps and septa
- Aluminum cap
- C8-1: crimp-top aluminum cap, 10 mm hole
- Aluminum caps with septa
- SC8-1 to SC8-5: PTFE/silicone septa in white, natural, blue and yellow combinations, 10 mm hole
Features
Key features
- 01
Headspace autosampler use
Excellent sealing properties for headspace autosamplers.
- 02
Two capacities
10 mL (22.5 x 46 mm) and 20 mL (22.5 x 75.5 mm) vials.
- 03
Clear or amber
Both capacities are offered in clear or amber glass.
- 04
Aluminum caps and septa
Crimp-top aluminum caps (10 mm hole) plain or with PTFE/silicone septa; catalog numbers C8-1 and SC8-1 to SC8-5.
- 05
Pack of 100
All vials and caps are supplied 100 per box.
