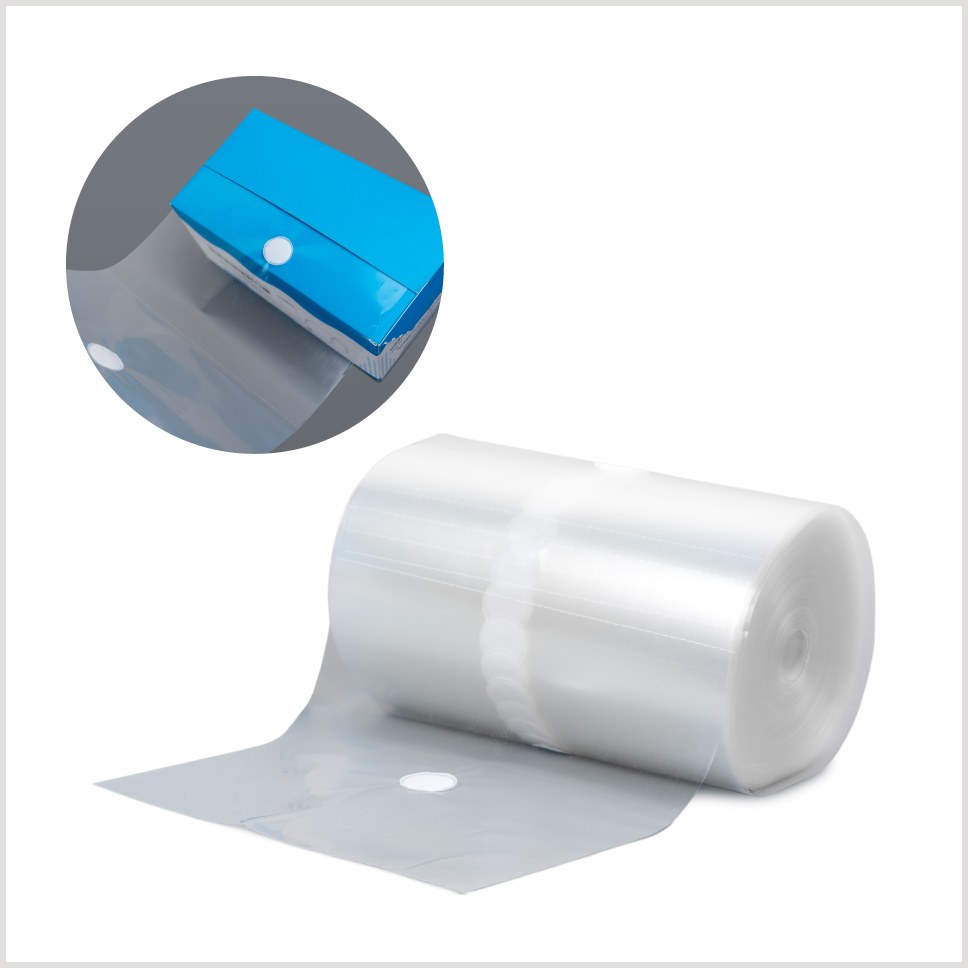

Sealing Films for Tissue Culture, SF1616N / RN
Autoclavable polypropylene sealing films with a PTFE microporous filter window that allows air exchange while keeping microorganisms out of culture vessels.
Key specifications
- SF1616N
- High-temperature-resistant sealing film; 50 pcs/pack
- SF1616RN / SF1630RN
- 160×160 mm; filter diameter 16 mm / 30 mm; 500 pcs per roll/box
- SF1416RN / SF1430RN
- 140×140 mm; filter diameter 16 mm / 30 mm; 500 pcs per roll/box
- SF1216RN / SF1230RN
- 120×120 mm; filter diameter 16 mm / 30 mm; 500 pcs per roll/box
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sealing Films for Tissue Culture, SF1616N / RN
Request a quoteOverview
Product overview
This high-temperature-resistant sealing film is made of high-quality polypropylene that is non-toxic to cultures and can be sterilised under high temperature and pressure. It is mainly used to seal culture bottles and can also seal flasks of medium during sterilisation. It lets air exchange take place while blocking entry of other microorganisms, preventing bacterial contamination.
The film is transparent, 0.06 mm (6 mil) thick, with an edge-sealed PTFE microporous membrane of 0.2–0.3 µm pore size. Filter windows of 16 mm or 30 mm diameter are offered on 120, 140 and 160 mm films. Operating temperature must not exceed 135 °C. A high-temperature-resistant rubber band is available as an accessory.
Specifications
Technical specifications
10 parameters
Ordering
- SF1616N
- High-temperature-resistant sealing film; 50 pcs/pack
- SF1616RN / SF1630RN
- 160×160 mm; filter diameter 16 mm / 30 mm; 500 pcs per roll/box
- SF1416RN / SF1430RN
- 140×140 mm; filter diameter 16 mm / 30 mm; 500 pcs per roll/box
- SF1216RN / SF1230RN
- 120×120 mm; filter diameter 16 mm / 30 mm; 500 pcs per roll/box
- QC0402
- High-temperature-resistant rubber band, 1.5 mm thick; 50 pcs/pack
Material
- Film material
- Polypropylene, transparent
- Film thickness
- 0.06 mm (6 mil)
- Filter membrane
- PTFE microporous membrane, edge-sealed
Performance
- Filtration pore size
- 0.2–0.3 µm
- Maximum operating temperature
- 135 °C
Features
Key features
- 01
Breathable yet bacteria-proof
Edge-sealed PTFE microporous filter membrane permits air exchange and blocks microorganisms.
- 02
Autoclavable
Withstands high temperature and pressure, with operating temperature not exceeding 135 °C.
- 03
Transparent film
0.06 mm polypropylene with good light transmission.
- 04
Two filter diameters
16 mm and 30 mm filter windows.
- 05
Three film sizes
120×120, 140×140 and 160×160 mm.
