Reference: SPEMF12G-E / SPEMF24G-S-E

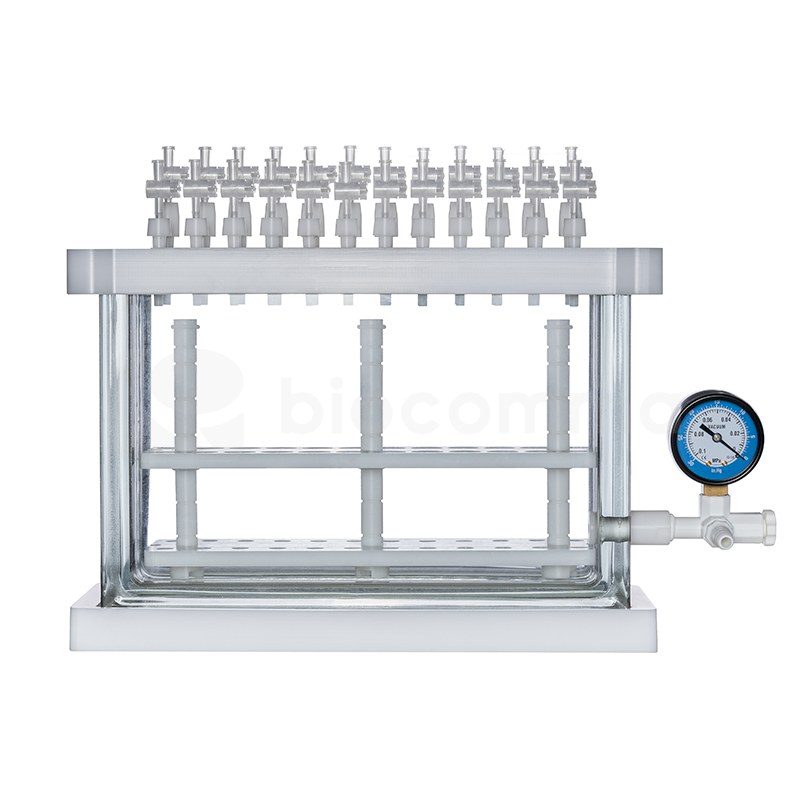

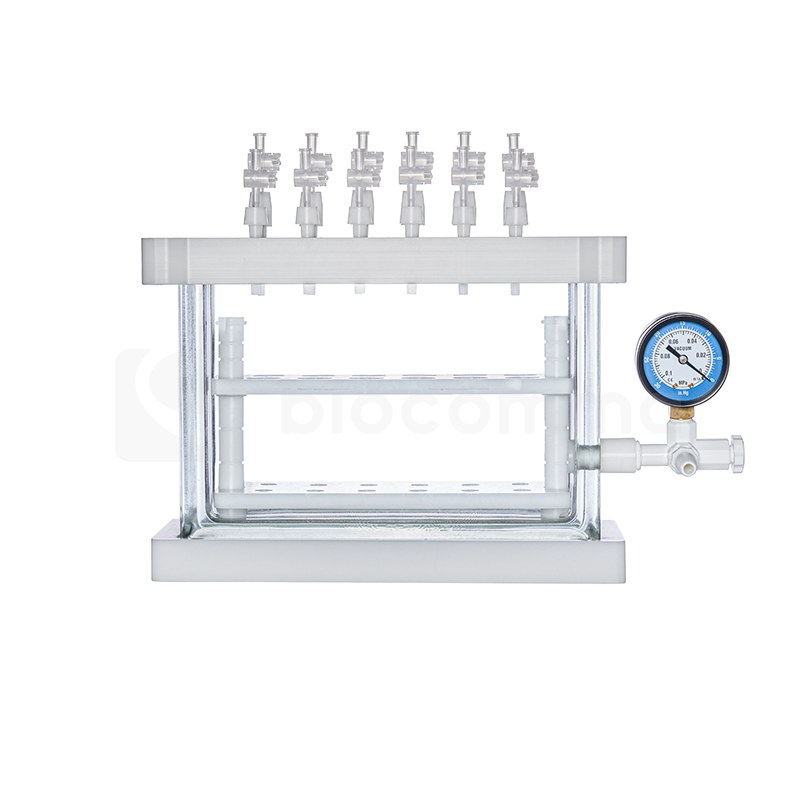

Solid Phase Extraction Vacuum Manifolds (12- and 24-Port)
12- and 24-port SPE vacuum manifolds with a quartz chamber and individual flow valves, controlling pressure through activating, loading, rinsing and eluting.
Key specifications
- Catalog number (12-port)
- SPEMF12G-E: 12-port SPE vacuum manifold, square shape, individual flow valve, transparent glass
- Catalog number (24-port)
- SPEMF24G-S-E: 24-port SPE vacuum manifold, square shape, individual flow valve, transparent glass
- Ports
- 12 or 24
- Lid
- Polyoxymethylene
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Solid Phase Extraction Vacuum Manifolds (12- and 24-Port)
Request a quoteOverview
Product overview
These SPE vacuum manifolds carry out activating, loading, rinsing, eluting and other steps of SPE sample pretreatment by controlling pressure. Individual valves set the flow rate independently for each port, and the height of the test-tube rack is adjustable.
Both the 12-port and 24-port versions use a polyoxymethylene lid and a quartz glass vacuum chamber, tolerate -80 kPa and hold a stable pressure of 0 to 80 kPa. They accept test tubes up to 105 mm long in φ10, φ13 and φ15 mm sizes.
Specifications
Technical specifications
9 parameters
Ordering
- Catalog number (12-port)
- SPEMF12G-E: 12-port SPE vacuum manifold, square shape, individual flow valve, transparent glass
- Catalog number (24-port)
- SPEMF24G-S-E: 24-port SPE vacuum manifold, square shape, individual flow valve, transparent glass
- Package
- 1 set/carton
Parameters
- Ports
- 12 or 24
- Lid
- Polyoxymethylene
- Glass vacuum chamber
- Quartz
- Pressure resistance
- -80 kPa
- Stable pressure
- 0 to 80 kPa
- Test tubes
- ≤105 mm; φ10 / φ13 / φ15
Features
Key features
- 01
Independent flow control
Individual valves control the flow rate of each port independently.
- 02
Adjustable rack
Test-tube rack height is adjustable.
- 03
Transparent quartz chamber
Quartz glass vacuum chamber with polyoxymethylene lid.
- 04
Two port counts
12-port (SPEMF12G-E) and 24-port (SPEMF24G-S-E) versions.
