Solvent Filter

In-line solvent filters for 1/16, 1/8, 3/16 and 1/4 inch OD tubing in 5 to 100 µm porosities, to filter impurities and prevent pipeline blockage.

Key specifications

IFA064-16-1 / -16-20 / -16-50: 10 µm / 20 µm / 50 µm porosity
IFA065-8-1 / -8-20 / -8-50: 5 µm / 20 µm / 50 µm porosity
IFA110-4-1 / -4-20 / -4-50: 5 µm / 20 µm / 50 µm porosity
IFA096-150-100: 100 µm porosity

Configured to your application by our specialists
Installed and commissioned on site
Training and after-sales support across Jordan, the GCC and MENA

Solvent Filter

Overview

Product overview

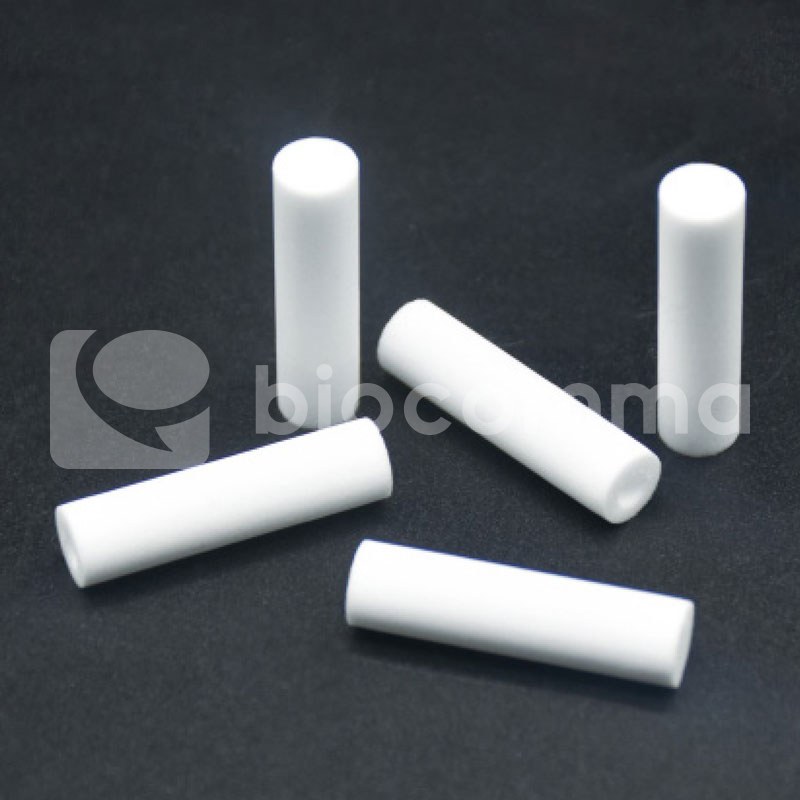

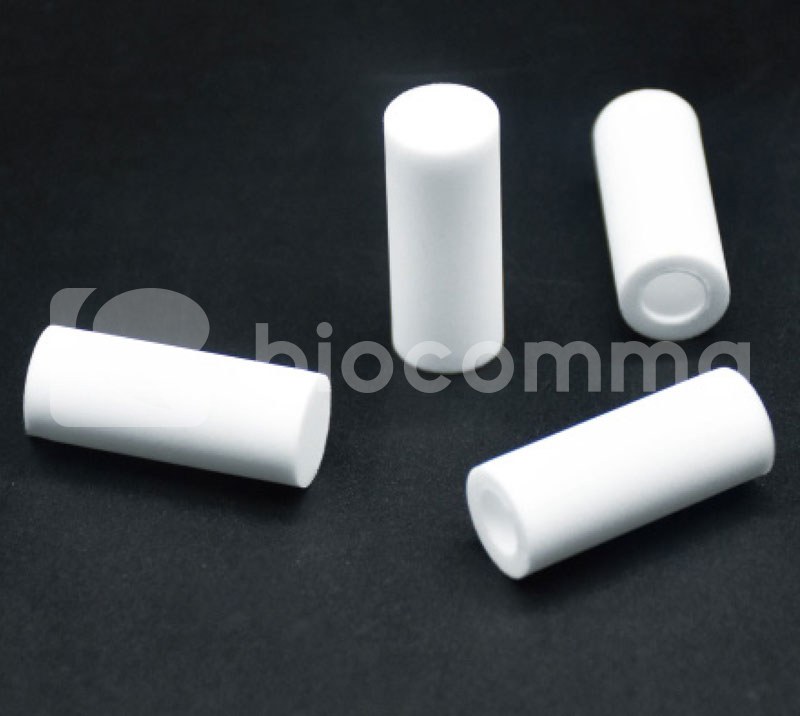

Biocomma solvent filters remove impurities and larger particles from solutions so they do not block the pipeline. They are listed for tubing of 1/16, 1/8, 3/16 and 1/4 inch outer diameter.

Porosity options run from 5 µm to 100 µm: 10, 20 and 50 µm for 1/16 inch tubing, 5, 20 and 50 µm for 1/8 and 1/4 inch tubing, and 100 µm for 3/16 inch tubing. Each item is packed 100 per pack, and custom items can be requested.

Specifications

Technical specifications

5 parameters

IFA064-16-1 / -16-20 / -16-50: 10 µm / 20 µm / 50 µm porosity
IFA065-8-1 / -8-20 / -8-50: 5 µm / 20 µm / 50 µm porosity
IFA110-4-1 / -4-20 / -4-50: 5 µm / 20 µm / 50 µm porosity
IFA096-150-100: 100 µm porosity
Package: 100 pcs/pack

Features

Key features

01
Protects the pipeline
Filters impurities and larger particles to avoid blockages.
02
Four tubing sizes
1/16, 1/8, 3/16 and 1/4 inch OD.
03
Several porosities
5, 10, 20, 50 and 100 µm depending on tube size.
04
Custom items
Non-standard filters can be requested.
