SpinFlow® 96-Well Micro-Filter Plates
Injection-molded 96-well micro-filter plates with PVDF, MCE, PTFE and other membranes, in removable (R), non-removable (NR) and integrated (ONE) series.
Key specifications
- Plate series
- R-Series (removable), NR-Series (non-removable), ONE-Series (integrated)
- Plate format
- 96 wells
- Filtration plate material (R / NR)
- PS
- Filtration plate material (ONE)
- PP
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SpinFlow® 96-Well Micro-Filter Plates
Request a quoteOverview
Product overview

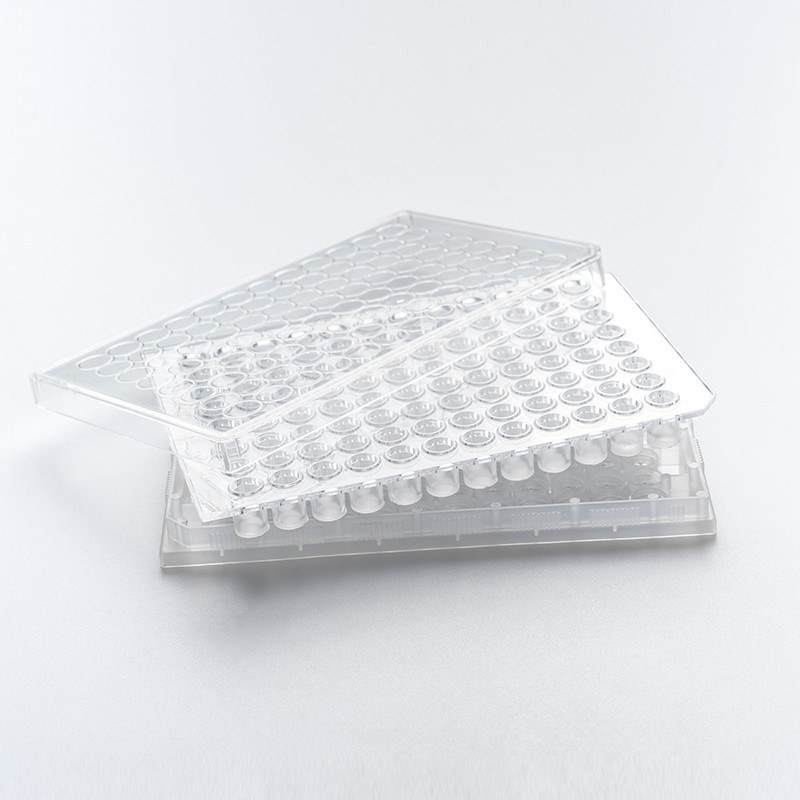

SpinFlow® 96-well micro-filter plates are precision injection molded and fitted with a choice of membranes, including PVDF, mixed cellulose esters (MCE), PTFE and other microporous types. Each well is individually sealed, and the guide plate and collection plate are removable for seamless integration.
Three product lines cover different workflows. The removable R-Series (filtration plate, membrane and manifold) suits Elispot, PAMPA and cell screening such as migration, invasion or chemotaxis. The non-removable NR-Series has the manifold welded to the plate and is made for high-throughput use on automated workstations. The integrated ONE-Series has no manifold, tolerates greater centrifugal force and reduces non-specific binding and interference, which suits biochemical screening.
The R-Series is listed in 300 µL formats with hydrophilic CA, MCE, nylon, PES and PTFE membranes at 0.22 µm or 0.45 µm, including a sterile 0.22 µm MCE plate, packed 10 plates per box.
Specifications
Technical specifications
18 parameters
Series
- Plate series
- R-Series (removable), NR-Series (non-removable), ONE-Series (integrated)
- Plate format
- 96 wells
Materials
- Filtration plate material (R / NR)
- PS
- Filtration plate material (ONE)
- PP
- Distribution plate material
- R: LDPE transparent; NR: LDPE translucent; ONE: none
Volumes
- Maximum plate volume (R / NR)
- 350 µL
- Maximum plate volume (ONE)
- 600 µL
- Working volume (R / NR)
- 50-250 µL
- Working volume (ONE)
- 50-500 µL
Dimensions
- Filtration area (R / NR)
- 0.28 cm²
- Filtration area (ONE)
- 0.44 cm²
- Height (R / NR / ONE)
- 11.8 / 16.01 / 14.6 mm
- Length (R / NR / ONE)
- 128.2 / 128 / 128 mm
- Width (R / NR / ONE)
- 85.8 / 85.6 / 85.5 mm
Compatibility
- Compatible negative pressure device
- 009807-B / 009807-R
Membranes
- Membranes offered
- PVDF, MCE, PTFE and other microporous membranes; examples in R-Series: CA, MCE, nylon, PES, PTFE
Ordering
- R-Series example codes
- M0096-CA-45 (hydrophilic CA, 0.45 µm); M0096-MCE-22 (hydrophilic MCE, 0.22 µm); M0096-MCE-22-S (sterile); M0096-MCE-45; M0096-NL-22 (nylon, 0.22 µm); M0096-PES-H-22 (PES, 0.22 µm); M0096-PTFE-22
- Packaging
- 10 plates per box
Features
Key features
- 01
R-Series removable plates
Filtration plate, membrane and an easily removed manifold; suited to Elispot, PAMPA and cell migration, invasion or chemotaxis screening.
- 02
NR-Series non-removable plates
Manifold tightly welded to the filtration plate for high-throughput use on automated workstations.
- 03
ONE-Series integrated plates
No manifold, higher centrifugal force tolerance and less non-specific binding and interference; 600 µL maximum volume.
- 04
Choice of membranes
PVDF, MCE, PTFE and other microporous membranes, including hydrophilic CA, nylon and PES in the R-Series.
- 05
Individually sealed wells
Precision injection-molded polystyrene plates with individually sealed wells and removable guide and collection plates.
- 06
Sterile option
A sterile 0.22 µm hydrophilic MCE plate (M0096-MCE-22-S) is listed.
