Reference: MN096-PES-22 / MN096-PVDF-H-45
SpinFlow® NR Series Non-Removable 96-Well Micro-Filter Plates
SpinFlow® NR series 96-well micro-filter plates with a polystyrene filter plate, a choice of membranes and a welded flow plate, developed for high-throughput work on automated workstations.
Key specifications
- Format
- 96-well, non-removable flow plate (filter plate, membrane and welded flow plate)
- Filter plate material
- Polystyrene, precision molded
- Membrane types
- CA, MCE, nylon, PES, PTFE (hydrophobic and hydrophilic), PVDF (hydrophobic and hydrophilic)
- Pore sizes
- 0.22 and 0.45 µm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SpinFlow® NR Series Non-Removable 96-Well Micro-Filter Plates
Request a quoteOverview
Product overview

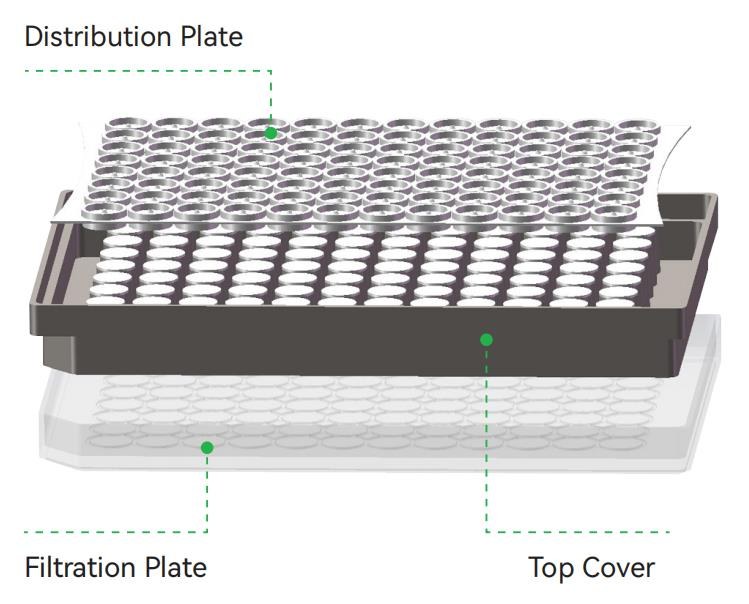

The SpinFlow® NR series (non-removable) micro-filter plates consist of a filter plate, a membrane and a flow plate. The filter plate is precision molded from polystyrene and accepts various membrane materials, including PVDF, mixed cellulose esters (MCE) and PTFE microfiltration membranes. Each well is individually sealed and works with the flow plate for seamless integration.
The flow plate is tightly welded to the filter plate, an arrangement developed specifically for high-throughput applications on automated workstations. Listed options cover hydrophilic and hydrophobic membranes in 0.22 and 0.45 µm, including sterile versions, packed 10 plates per box.
Specifications
Technical specifications
7 parameters
Plate
- Format
- 96-well, non-removable flow plate (filter plate, membrane and welded flow plate)
- Filter plate material
- Polystyrene, precision molded
- Membrane types
- CA, MCE, nylon, PES, PTFE (hydrophobic and hydrophilic), PVDF (hydrophobic and hydrophilic)
- Pore sizes
- 0.22 and 0.45 µm
Ordering
- Sterile versions
- MN096-CA-22-S, MN096-PVDF-H-22-S
- Catalog numbers
- MN096-CA-22, MN096-CA-22-S, MN096-CA-45, MN096-MCE-22, MN096-MCE-45, MN096-NY-22, MN096-NY-45, MN096-PES-22, MN096-PTFE-22, MN096-PTFE-45, MN096-PTFE-H-22, MN096-PTFE-H-45, MN096-PVDF-22, MN096-PVDF-45, MN096-PVDF-H-22-S, MN096-PVDF-H-45
- Packaging
- 10 pieces/box
Features
Key features
- 01
Welded flow plate
Flow plate tightly welded to the filter plate (non-removable design).
- 02
Individually sealed wells
Each well is individually sealed.
- 03
Wide membrane choice
CA, MCE, nylon, PES, PTFE and PVDF in 0.22 and 0.45 µm.
- 04
Built for automation
Developed for high-throughput applications on automated workstations.
- 05
Sterile options
Sterile versions are listed for selected membranes.
