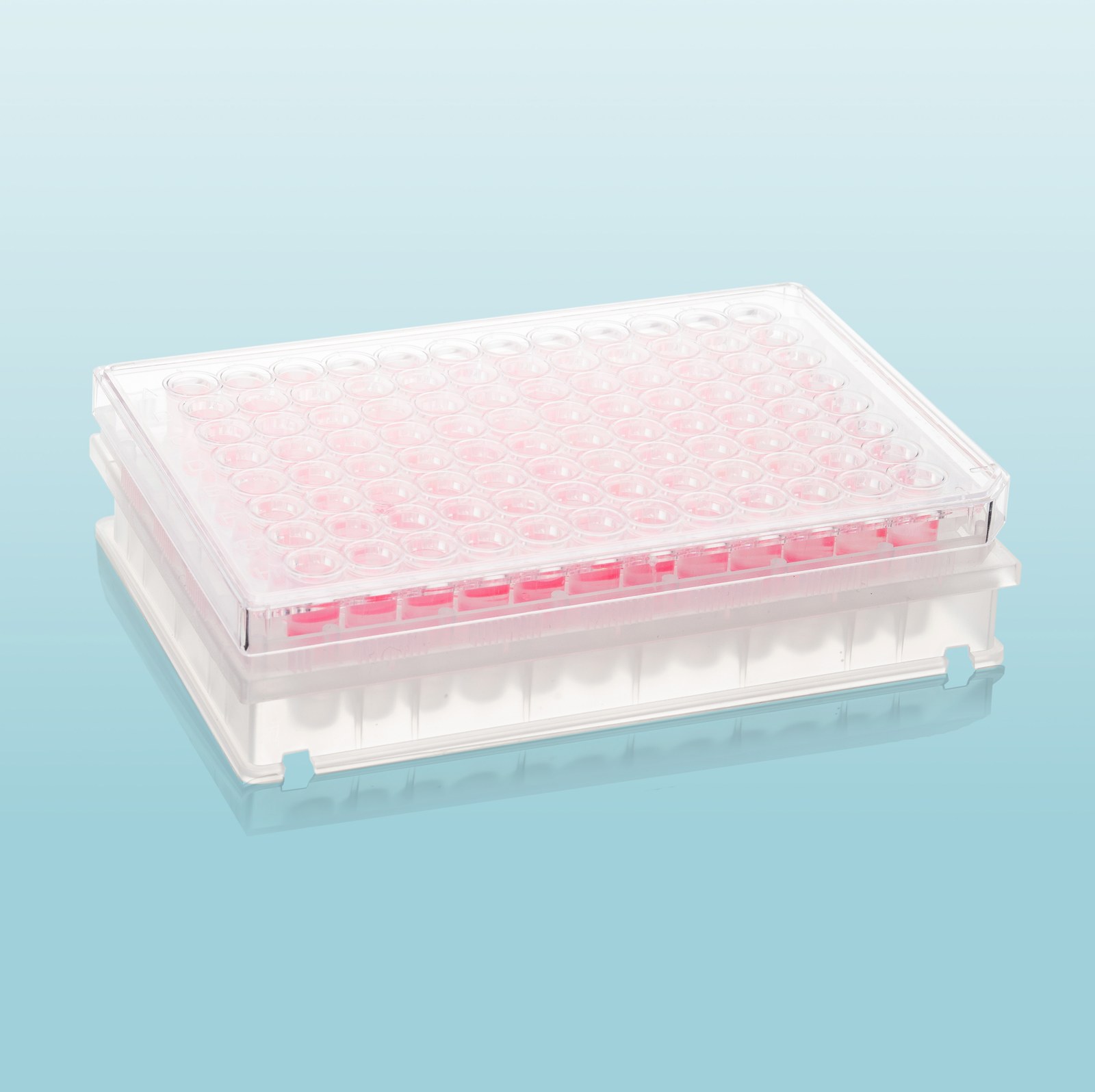

SpinFlow® R Series Removable 96-Well Micro-Filter Plates
SpinFlow® R series 96-well micro-filter plates (300 µL) with a removable distribution plate, designed for experiments that need the membrane to be observed, such as Elispot, PAMPA and cell screening.
Key specifications
- Format
- 96-well removable micro-filter plate (filtration plate, membrane, distribution plate)
- Well volume
- 300 µL
- Filtration plate material
- Polystyrene, precision injection molded
- Membrane types
- CA, MCE, nylon, PES, PTFE, PVDF
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SpinFlow® R Series Removable 96-Well Micro-Filter Plates
Request a quoteOverview
Product overview

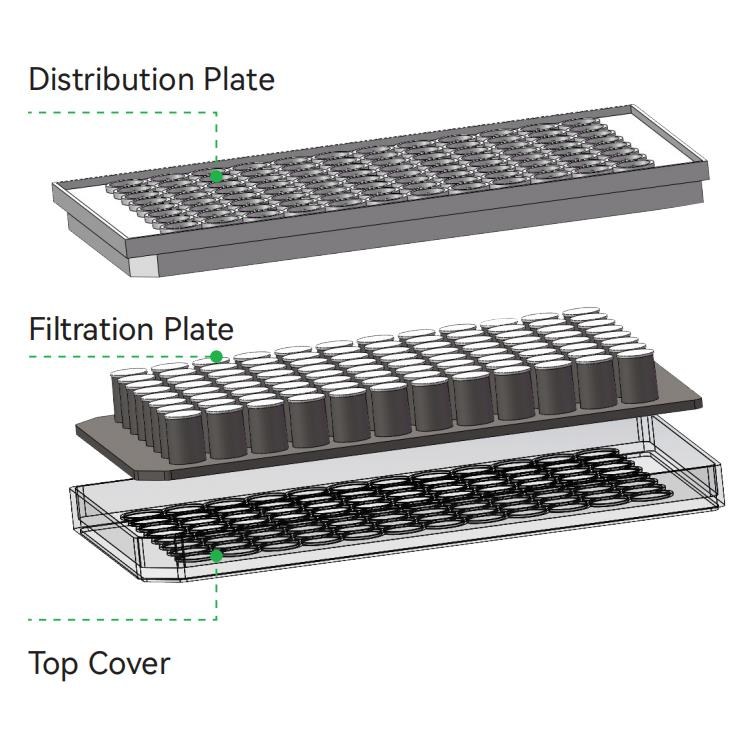

The SpinFlow® R series (removable) micro-filter plates have three parts: the filtration plate, the membrane and the distribution plate. The filtration plate is precision injection molded from polystyrene and accepts membranes such as PVDF, mixed cellulose esters (MCE) and PTFE. Each well is individually sealed, which allows seamless integration with the removable distribution plate.
The easy-to-remove distribution plate suits experiments in which the membrane structure must be observed, such as Elispot, PAMPA and cell screening (migration, invasion or chemotaxis). The 300 µL plates are listed with CA, MCE, nylon, PES, PTFE and PVDF membranes at 0.22 and 0.45 µm, including a sterile MCE option, and are packed 10 per box.
Specifications
Technical specifications
7 parameters
Plate
- Format
- 96-well removable micro-filter plate (filtration plate, membrane, distribution plate)
- Well volume
- 300 µL
- Filtration plate material
- Polystyrene, precision injection molded
- Membrane types
- CA, MCE, nylon, PES, PTFE, PVDF
- Pore sizes
- 0.22 and 0.45 µm
Ordering
- Catalog numbers
- M0096-CA-45, M0096-MCE-22, M0096-MCE-22-S, M0096-MCE-45, M0096-NL-22, M0096-PES-H-22, M0096-PTFE-22, M0096-PTFE-45, M0096-PTFE-H-22, M0096-PTFE-H-45, M0096-PVDF-22, M0096-PVDF-45, M0096-PVDF-H-22, M0096-PVDF-H-45
- Packaging
- 10 pieces/box
Features
Key features
- 01
Removable distribution plate
Easy to remove for access to the membrane.
- 02
Membrane observation
Suited to experiments requiring observation of membrane structure.
- 03
Elispot, PAMPA and cell screening
Including migration, invasion and chemotaxis assays.
- 04
Individually sealed wells
Each well is individually sealed.
- 05
Many membrane options
CA, MCE, nylon, PES, PTFE and PVDF in 0.22 and 0.45 µm.
