Reference: SPEMFP01-E / SPEMFP02-E

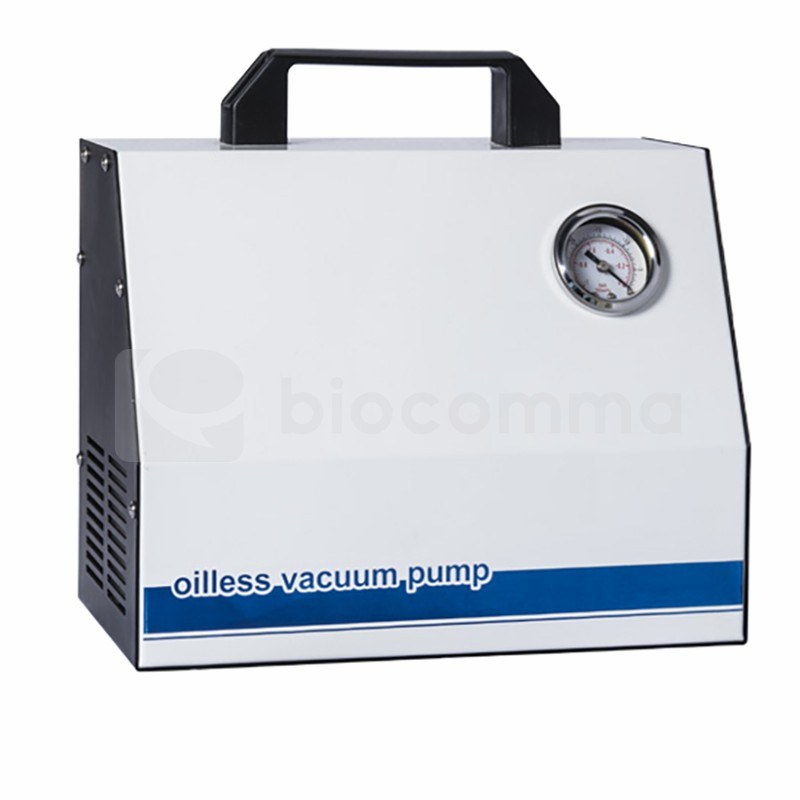

Biocomma Oil-Free Vacuum Pump
Oil-free diaphragm vacuum pumps for use with vacuum manifolds, offered as a portable fixed-pressure model or an adjustable-pressure model.
Key specifications
- Pump type
- Oil-free diaphragm vacuum pump
- Catalog number
- SPEMFP01-E
- Ultimate pressure
- 0.08 MPa
- Max. flow
- 10 L/min
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Biocomma Oil-Free Vacuum Pump
Request a quoteOverview
Product overview
The Biocomma vacuum pump range is built to work with vacuum manifolds. Both models use diaphragm vacuum technology with no oil in the pumping path, which avoids the contamination of media that can occur with rotary vane pumps.
Two versions are available. SPEMFP01-E is a portable pump with an ultimate pressure of 0.08 MPa and a maximum flow of 10 L/min. SPEMFP02-E offers adjustable pressure from 0.02 to 0.08 MPa and a flow range of 5 to 30 L/min, and ships with a waste collection bottle.
Specifications
Technical specifications
15 parameters
General
- Pump type
- Oil-free diaphragm vacuum pump
- Packing
- 1 set per carton
Portable model
- Catalog number
- SPEMFP01-E
- Ultimate pressure
- 0.08 MPa
- Max. flow
- 10 L/min
- Power
- 55 W
- Power supply
- A.C. 220 V, 50/60 Hz
- Weight
- 3 kg
Adjustable model
- Catalog number
- SPEMFP02-E
- Ultimate pressure
- 0.02~0.08 (adjustable) MPa
- Max. flow
- 5~30 L/min
- Power
- 90 W
- Power supply
- A.C. 220 V, 50/60 Hz
- Weight
- 3.8 kg
- Supplied with
- Waste collection bottle
Features
Key features
- 01
Oil-free diaphragm technology
Removes the oil contamination risk associated with rotary vane pumps.
- 02
Designed for vacuum manifolds
Intended to be paired with vacuum manifolds in sample-preparation workflows.
- 03
Portable and adjustable options
SPEMFP01-E is a portable 55 W unit; SPEMFP02-E adds adjustable pressure (0.02~0.08 MPa) and 5~30 L/min flow.
- 04
Waste collection bottle included
Supplied with the adjustable model, SPEMFP02-E.
