Reference: 3520

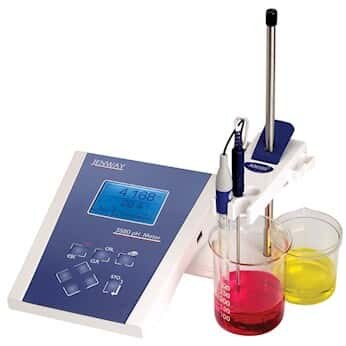

Jenway 3520 Advanced Benchtop pH Meter Kit with GLP
Advanced benchtop pH/mV/temperature meter with 0.001 pH resolution, ±0.003 pH accuracy, 1 to 3 point calibration, GLP functions and 500-reading memory.
Key specifications
- Meter Type
- Benchtop
- Display type
- Backlit 1/8 VGA monochrome LCD
- Connections
- BNC
- Min pH
- -2
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Jenway 3520 Advanced Benchtop pH Meter Kit with GLP
Request a quoteOverview
Product overview
The Jenway 3520 is the advanced model of the Jenway benchtop pH meter range, measuring pH, mV and temperature. It reads from -2 to 20 pH with selectable resolution down to 0.001 pH and ±0.003 pH accuracy, and from -1999.9 to 1999.9 mV.
Calibration uses one, two or three points with automatic recognition of DIN, NIST and JIS buffers or custom values, and temperature compensation is automatic or manual from 0 to 100 °C. GLP support includes calibration reminder intervals, alarm outputs and security code protection.
Up to 500 readings are stored, and data can be exported over RS-232, IrDA or analogue output to a printer or computer. The kit supplies the meter with a pH electrode, ATC probe and pH buffers, and a large backlit LCD shows status, pH and temperature.
Specifications
Technical specifications
28 parameters
- Meter Type
- Benchtop
- Display type
- Backlit 1/8 VGA monochrome LCD
- Connections
- BNC
- Min pH
- -2
- Max pH
- 20
- pH Resolution
- 0.001, 0.01, 0.1
- pH Accuracy
- ±0.003
- Buffer Recognition
- DIN, NIST, JIS, and custom
- Calibration
- User selectable 1, 2 or 3 point
- Min mV
- -1999.9 mV
- Max mV
- 1999.9 mV
- mV Resolution
- 0.1, 1
- mV Accuracy
- ±0.2
- Min Temperature
- -10 °C
- Max Temperature
- 105 °C
- Temperature Resolution
- 1°F (0.1°C)
- Temperature Accuracy
- ±1°F (±0.5°C)
- Temperature compensation
- Automatic or manual from 32 to 212°F (0 to 100°C)
- Interface
- Analog, RS-232, IrDA
- Output
- Analog, RS-232, IrDA, and alarm
- Data Logging (points)
- 500 data sets
- Memory Size
- 500
- Supply voltage
- 230 V AC
- Length
- 25 cm
- Width
- 21 cm
- Height
- 5.5 cm
- Probe Included
- pH electrode and ATC probe
- Warranty
- 3 years
Features
Key features
- 01
0.001 pH resolution
Accuracy of ±0.003 pH across -2 to 20 pH.
- 02
1 to 3 point calibration
Auto recognition of DIN, NIST, JIS and custom buffers.
- 03
GLP functions
Calibration reminders, alarms and security code.
- 04
500-reading memory
Manual, timed or alarm-triggered logging.
- 05
RS-232, IrDA and analogue outputs
Send data to a printer or computer.
- 06
Complete kit
pH electrode, ATC probe and buffers included.
