Reference: 7410

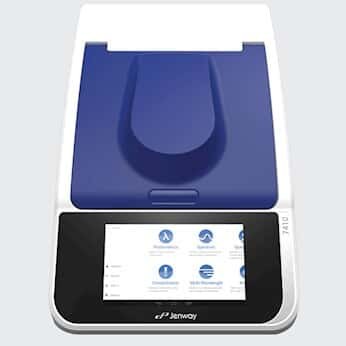

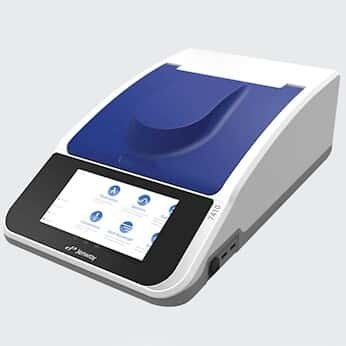

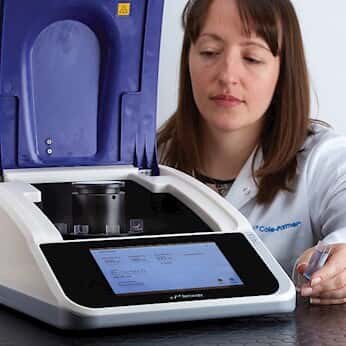

Jenway 7410 Scanning Visible Spectrophotometer
Scanning visible spectrophotometer covering 320 to 1000 nm with a tungsten halogen lamp, 7-inch colour touchscreen, six measurement modes and USB/Ethernet.
Key specifications
- Stray Light
- <0.5% at 340nm
- Source Lamp
- Tungsten halogen
- Beam Type
- Single
- Bandwidth
- 5 nm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Jenway 7410 Scanning Visible Spectrophotometer
Request a quoteOverview
Product overview
The Jenway 7410 is the visible-range model of the 74 Series, intended for teaching, routine QC and water and food analysis where UV wavelengths are not needed. A tungsten halogen lamp covers 320 to 1000 nm with a 5 nm bandwidth, ±2 nm wavelength accuracy and stray light below 0.5% at 340 nm.
It shares the 74 Series interface: a 7-inch glove-friendly colour touchscreen and modes for photometrics, concentration, spectrum scanning, quantitation with up to 20 standards, kinetics and multi-wavelength readings.

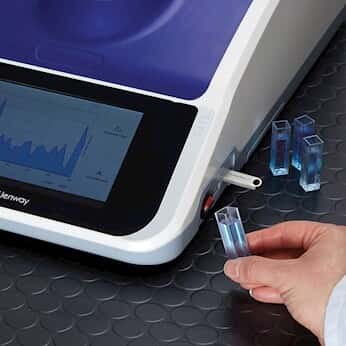

Results and methods are saved in 3.6 GB of internal memory and exported through front USB ports or Ethernet. The domed lid accepts tall accessories, and the standard 10 x 10 mm cuvette holder takes 3 mL samples.
Specifications
Technical specifications
26 parameters
- Stray Light
- <0.5% at 340nm
- Source Lamp
- Tungsten halogen
- Beam Type
- Single
- Bandwidth
- 5 nm
- Min Wavelength
- 320 nm
- Max Wavelength
- 1000 nm
- Wavelength Accuracy
- ± 2nm
- Wavelength Reproducibility
- ± 0.5nm
- Pathlength
- 10-100 mm
- Min Photometric - Transmittance
- 0 %T
- Max Photometric - Transmittance
- 199.9 %T
- Min Photometric - Absorbance
- -0.3 A
- Max Photometric - Absorbance
- 2.5 A
- Photometric Accuracy
- ±1%T, ±0.01Abs at 1.000 Absorbance
- Detector
- Silicon photodiode
- Concentration
- -300 to 9999
- Data Logging Capability
- 3.6GB
- Output
- USB Type A x 2; USB Type B x 1; Ethernet RJ45
- Display Type
- Touchscreen
- Materials of Construction
- White ABS Plastic
- Width
- 28 cm
- Height
- 15.6 cm
- Depth
- 50 cm
- Supply voltage
- 100 to 240 V AC
- Frequency
- 50/60 Hz
- Warranty
- 3 years
Features
Key features
- 01
320 to 1000 nm range
Tungsten halogen source for visible work.
- 02
7-inch colour touchscreen
Glove-friendly navigation of scans and curves.
- 03
Six measurement modes
From single wavelength to kinetics and quantitation.
- 04
3.6 GB internal memory
Saves methods and results.
- 05
USB and Ethernet
Data export and printer connection.
- 06
Interchangeable accessories
Domed lid fits tall cell changers.
