Reference: V-200

Cole-Parmer V-200 Stuart Vortex Mixer, Variable Speed

Variable-speed vortex mixer from 200 to 2500 rpm with a heavy die-cast body, touch or continuous mode and a rubber cup head for many tube sizes.

Key specifications

Orbit Size
4.2 mm
Min Speed
200 rpm
Max Speed
2500 rpm
Max Load
1 kg
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

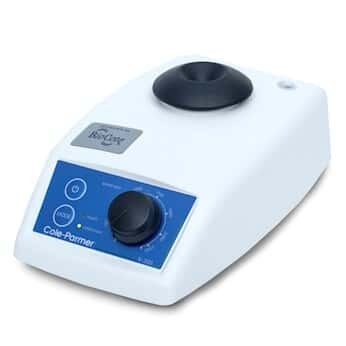

The V-200, formerly the Stuart SA8, is a variable-speed vortex mixer for rapid mixing of samples in test tubes, small flasks and bottles. The supplied rubber cup head accepts a wide variety of tube sizes and shapes.

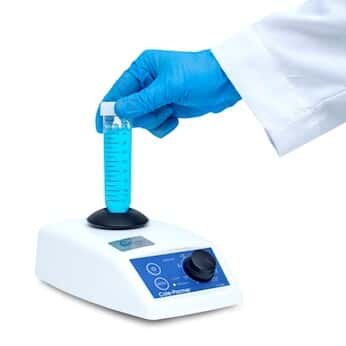

In touch mode the mixer starts when the cup is pressed down and stops as soon as the vessel is lifted away; continuous operation can also be selected. Speed is adjustable from 200 to 2500 rpm on a 4.2 mm orbit.

A heavy die-cast body keeps the unit stable on the bench, and a retort rod holder lets a vessel be clamped in place for longer mixing runs. It runs on 90 to 240 V and carries a three-year warranty.

Specifications

Technical specifications

11 parameters

Orbit Size
4.2 mm
Min Speed
200 rpm
Max Speed
2500 rpm
Max Load
1 kg
Number of Tubes
1
Width
13.5 cm
Height
7.8 cm
Depth
21.5 cm
Supply voltage
90 to 240 V AC
Frequency
50/60 Hz
Warranty
3 years
Features

Key features

  • 01

    200 to 2500 rpm

    Variable speed on a 4.2 mm orbit.

  • 02

    Touch or continuous mode

    Starts on pressing the cup or runs continuously.

  • 03

    Universal rubber cup

    Takes many tube sizes and shapes.

  • 04

    Heavy die-cast body

    Stays put on the bench during mixing.

  • 05

    Retort rod holder

    Clamp vessels for long-term mixing.
