Autoclave
Vertical steam autoclave from Kesar (KGAC series, 35 to 215 litres) for sterilising instruments, glassware and media at 120-125 °C and 15-25 PSI.
Key specifications
- Temperature range
- 120 °C to 125 °C
- Working temperature range
- 100 °C to 127 °C (factory set 120.0 °C)
- Working pressure range
- 15 PSI to 25 PSI (factory set 15 PSI)
- Temperature control accuracy
- ±0.5 °C or better
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Autoclave
Request a quoteOverview
Product overview

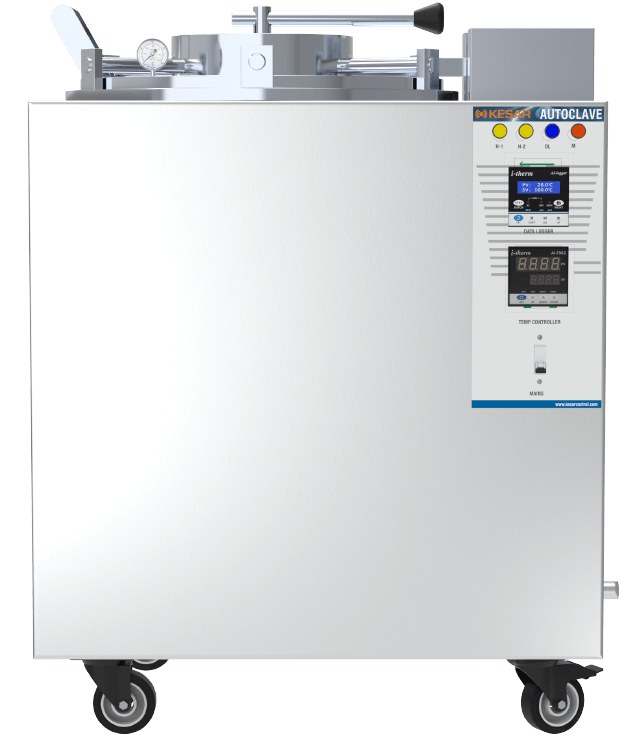

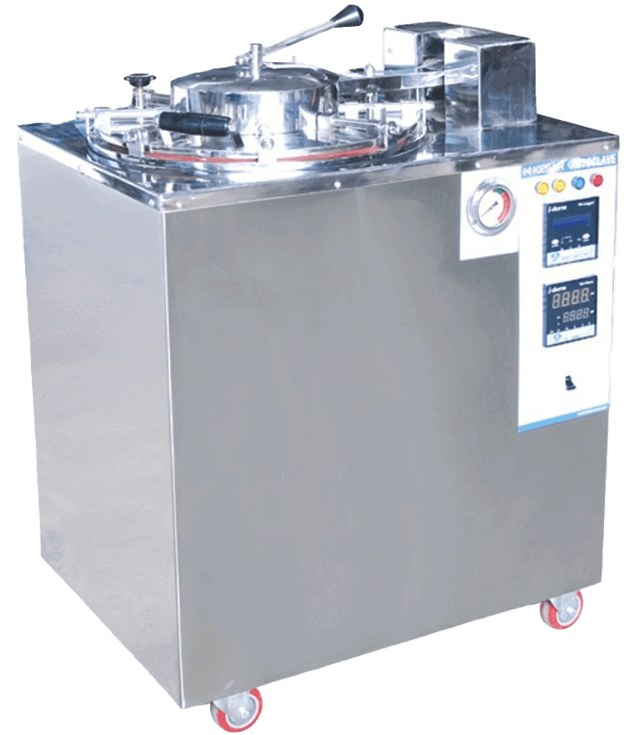

The Kesar autoclave is a high-pressure steam sterilizer that uses moist heat at about 121 °C to 125 °C and 15 to 25 psi to decontaminate laboratory glassware, culture media, medical instruments and biological waste. It is aimed at microbiology labs, pharma QC, QA and R&D and waste treatment.

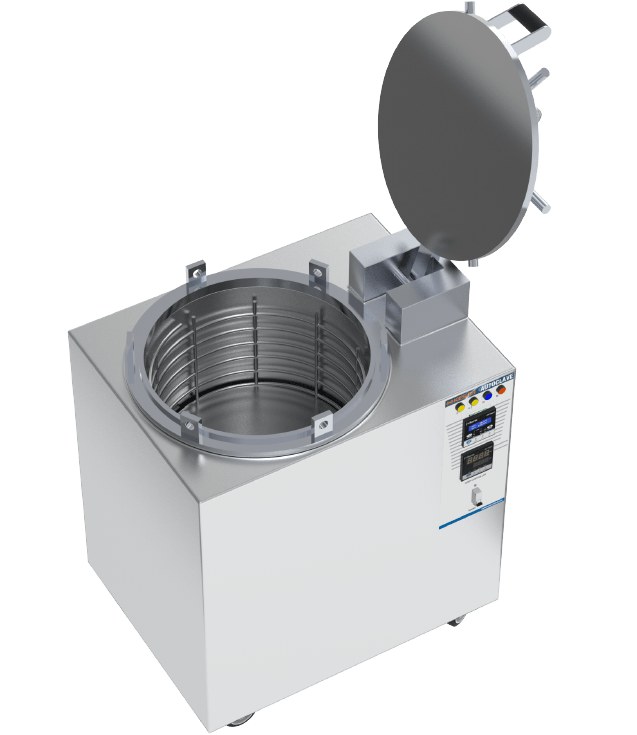

The outer body is stainless steel or powder-coated mild steel with a high-grade stainless steel chamber, a single-lever door lock, silicone gasket, integrated water reservoir and steam generator, and pressure safety valves and gauges.
A microprocessor PID controller with digital display handles temperature, pressure and cycle time, with pre-set cycles, automatic pressure, steam and water release, low-water alarm with heater cut-off and data logging. An optional controller-cum-data-logger with F0 value software and a pressure transducer are listed.
Specifications
Technical specifications
14 parameters
Performance
- Temperature range
- 120 °C to 125 °C
- Working temperature range
- 100 °C to 127 °C (factory set 120.0 °C)
- Working pressure range
- 15 PSI to 25 PSI (factory set 15 PSI)
- Temperature control accuracy
- ±0.5 °C or better
- Timer range
- 1-99 minutes
Control
- Temperature sensor
- PT-100
Electrical
- Power supply
- 230 V AC, single phase, 50 Hz
Models
- KGAC-35
- Size 12 dia x 20 Ht in (35 dia x 55 Ht cm); 2000 W; capacity 35 L; 1 basket(s)
- KGAC-53
- Size 14 dia x 22 Ht in (35 dia x 55 Ht cm); 3000 W; capacity 53 L; 1 basket(s)
- KGAC-75
- Size 16 dia x 24 Ht in (40 dia x 60 Ht cm); 4000 W; capacity 75 L; 1 basket(s)
- KGAC-95
- Size 18 dia x 24 Ht in (45 dia x 65 Ht cm); 4000 W; capacity 95 L; 1 basket(s)
- KGAC-125
- Size 18 dia x 30 Ht in (45 dia x 75 Ht cm); 5000 W; capacity 125 L; 2 basket(s)
- KGAC-185
- Size 22 dia x 30 Ht in (55 dia x 75 Ht cm); 6000 W; capacity 185 L; 2 basket(s)
- KGAC-215
- Size 22 dia x 35 Ht in (55 dia x 90 Ht cm); 6000 W; capacity 215 L; 2 basket(s)
Features
Key features
- 01
Steam sterilisation
Moist heat at 120-125 °C and 15-25 PSI for complete decontamination.
- 02
Pre-set cycles
Multiple programs for different materials with 1-99 minute timer.
- 03
Safety systems
Pressure safety valves and gauges, automatic pressure release, overheat protection, secure door lock.
- 04
Integrated steam generator
Water reservoir and steam generator give continuous steam supply.
- 05
Digital control and logging
PID controller, real-time display and data logging with server connectivity.
- 06
Optional F0 data logger
Software with F0 value, purging system and pressure transducer data.
