BOD Incubator
Refrigerated BOD (biological oxygen demand) incubator from Kesar, 90 to 1,000 litres, with 10-60 °C range for water, wastewater and microbial culture work.
Key specifications
- Temperature range
- 10 °C to 60 °C
- Accuracy
- ±1.0 °C
- Uniformity
- ±2.0 °C
- Control system
- PLC or PID based
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
BOD Incubator
Request a quoteOverview
Product overview

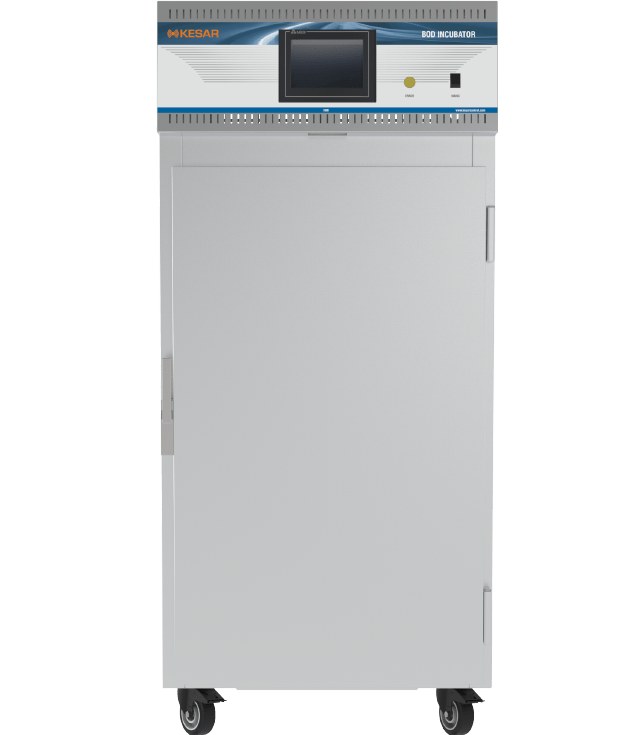

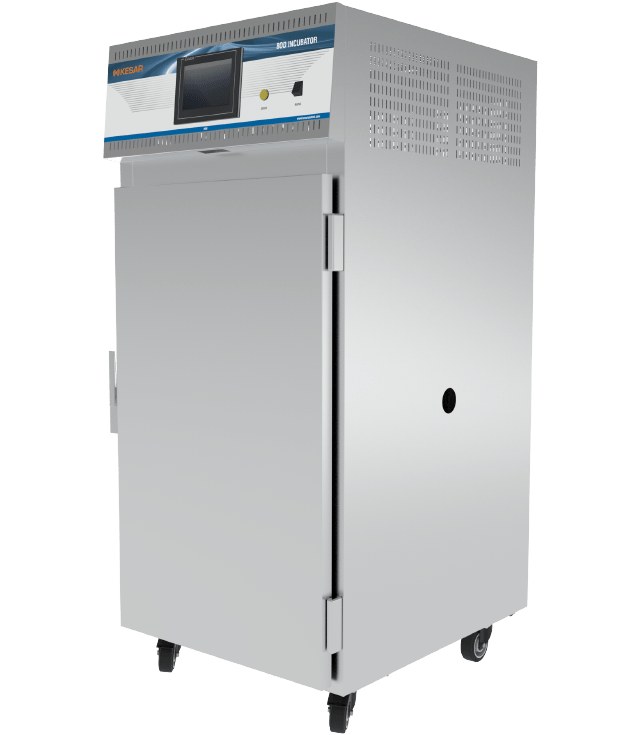

The Kesar BOD incubator holds cultures and biological samples at a stable temperature under controlled artificial conditions, isolated from the surrounding environment. It is intended for work such as BOD testing of water and wastewater samples, microbial growth and tissue culture observation.

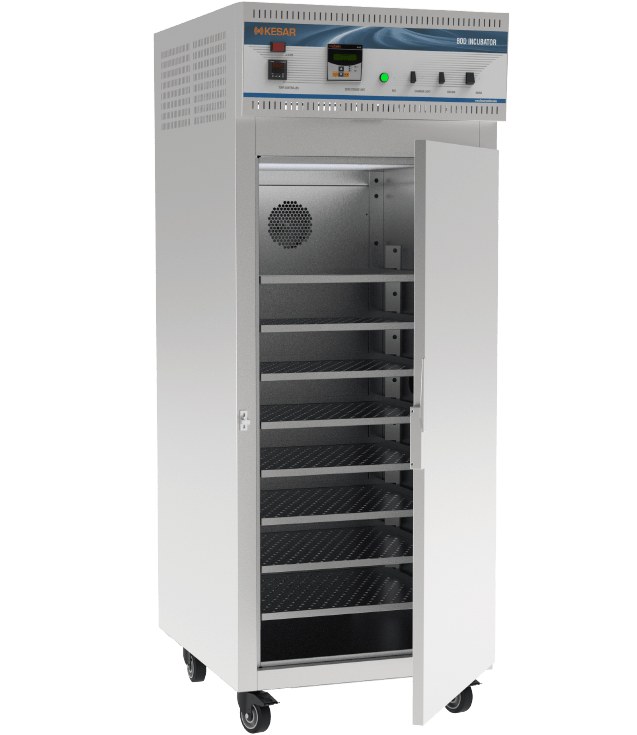

The body is CNC fabricated with a stainless steel interior that is smooth and easy to clean, high-density PUF insulation, a silicone-gasketed door and a transparent inner glass door for viewing without disturbing conditions. Adjustable stainless steel trays accommodate different sample sizes.
Control is PID or HMI plus PLC based with auto tuning, programmable temperature cycles, over-temperature cut-off and alarms. Optional extras include a standby refrigeration system, scanner, GSM and security alarms.
Specifications
Technical specifications
13 parameters
Performance
- Temperature range
- 10 °C to 60 °C
- Accuracy
- ±1.0 °C
- Uniformity
- ±2.0 °C
Control
- Control system
- PLC or PID based
Construction
- Material of construction
- Interior SS 304 dull finish; exterior G.I. powder coated (STD). GMP: SS 304 interior and exterior. CGMP: SS 316 interior, SS 304 exterior.
Models
- KGOB-90
- 90 L; internal 450 x 450 x 450 mm; external 600 x 920 x 1060 mm; max 2 trays
- KGOB-227
- 227 L; internal 600 x 630 x 600 mm; external 750 x 1100 x 1210 mm; max 3 trays
- KGOB-325
- 325 L; internal 600 x 630 x 900 mm; external 750 x 1100 x 1510 mm; max 5 trays
- KGOB-400
- 400 L; internal 600 x 630 x 1060 mm; external 750 x 1100 x 1670 mm; max 6 trays
- KGOB-500
- 500 L; internal 600 x 630 x 1330 mm; external 750 x 1100 x 1940 mm; max 8 trays
- KGOB-600
- 600 L; internal 800 x 800 x 950 mm; external 950 x 1270 x 1560 mm; max 5 trays
- KGOB-800
- 800 L; internal 800 x 800 x 1250 mm; external 950 x 1270 x 1860 mm; max 7 trays
- KGOB-1000
- 1000 L; internal 800 x 800 x 1570 mm; external 950 x 1270 x 2180 mm; max 10 trays
Features
Key features
- 01
Stainless steel chamber
Smooth, easy-to-clean interior; STD, GMP and cGMP material options.
- 02
PUF insulation
High-density polyurethane foam minimises heat loss and improves energy efficiency.
- 03
Viewing door
Transparent inner glass door with silicone gasket and multi-pane condensation-free option.
- 04
Programmable control
7-inch HMI/PLC or PID with auto tuning and programmable temperature cycles.
- 05
Safety and alarms
Password door access, temperature deviation, power failure and open-door alarms, extreme temperature cut-off.
- 06
Even air circulation
Air circulation system for uniform temperature distribution.
- 07
Optional extras
Standby refrigeration system, scanner, GSM alert, security alarm.
