Eco Smart Walk-in Stability Chamber
Room-sized, energy-saving walk-in stability chamber from Kesar for large-batch ICH studies. Works on dew point control with 20-60 °C and 40-95 %RH.
View product
Reference: KGOC series
Cold Chamber
2-8 °C cold chamber from Kesar (KGOC series, 90 to 1,000 litres) for pharmaceutical storage, material testing and low-temperature simulation.
Key specifications
- Temperature range
- 2 °C to 8 °C
- Accuracy
- ±1.5 °C
- Uniformity
- ±3.0 °C
- Control system
- PLC or PID based
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Cold Chamber
Request a quoteOverview
Product overview

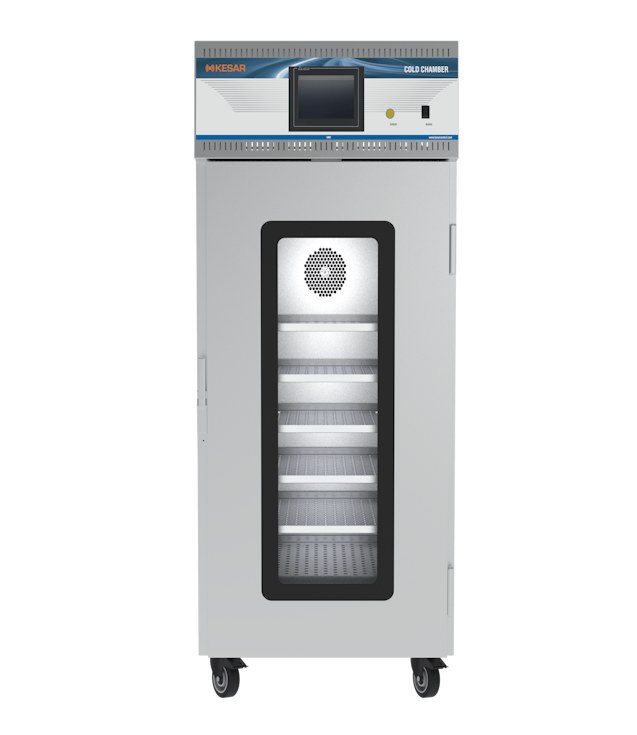

The Kesar cold chamber provides a controlled low-temperature environment of 2 °C to 8 °C for storing pharmaceutical products and biological samples, material testing and simulating cold climatic conditions.
It has a CNC-fabricated body with a stainless steel interior, double-walled PUF insulation, a silicone-gasketed door and an optional double-glazed observation door. Forced air circulation keeps cooling uniform, and adjustable stainless steel shelves or trays suit different sample sizes.
Control is PID or HMI plus PLC based, with a safety thermostat, door open alarm, automatic restart of previous settings after a power cut, and optional standby cooling, scanner, GSM and security alarm systems.
Specifications
Technical specifications
13 parameters
Performance
- Temperature range
- 2 °C to 8 °C
- Accuracy
- ±1.5 °C
- Uniformity
- ±3.0 °C
Control
- Control system
- PLC or PID based
Construction
- Material of construction
- Interior SS 304 dull finish; exterior G.I. powder coated (STD). GMP: SS 304 interior and exterior. CGMP: SS 316 interior, SS 304 exterior.
Models
- KGOC-90
- 90 L; internal 450 x 450 x 450 mm; external 600 x 900 x 1060 mm; max 2 trays
- KGOC-227
- 227 L; internal 600 x 630 x 600 mm; external 750 x 1080 x 1220 mm; max 3 trays
- KGOC-325
- 325 L; internal 600 x 630 x 900 mm; external 750 x 1080 x 1520 mm; max 5 trays
- KGOC-400
- 400 L; internal 600 x 630 x 1060 mm; external 750 x 1080 x 1680 mm; max 6 trays
- KGOC-500
- 500 L; internal 600 x 630 x 1330 mm; external 750 x 1080 x 1950 mm; max 8 trays
- KGOC-600
- 600 L; internal 800 x 800 x 950 mm; external 950 x 1260 x 1860 mm; max 5 trays
- KGOC-800
- 800 L; internal 800 x 800 x 1250 mm; external 950 x 1380 x 1860 mm; max 7 trays
- KGOC-1000
- 1000 L; internal 800 x 800 x 1570 mm; external 950 x 1380 x 2190 mm; max 10 trays
Features
Key features
- 01
2-8 °C operation
Designed for pharmaceutical and biological sample cold storage.
- 02
Forced air circulation
Uniform cooling and reduced temperature fluctuation.
- 03
Double-walled PUF insulation
Reduces heat exchange and improves energy efficiency.
- 04
Viewing door
Illuminated interior with multi-pane or optional double-glazed observation door.
- 05
Safety
Safety thermostat, door open alarm, automatic restart of previous settings.
- 06
PID or HMI/PLC control
7-inch HMI with PLC or microprocessor PID with auto tuning; USB and Ethernet data transfer.
- 07
Optional extras
Standby cooling system, scanner, security alarm, GSM alert.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
