Eco Smart Walk-in Stability Chamber
Room-sized, energy-saving walk-in stability chamber from Kesar for large-batch ICH studies. Works on dew point control with 20-60 °C and 40-95 %RH.
View product
Reference: KGO2C series
Dual Chamber
Two-compartment chamber from Kesar combining a 2-8 °C upper section with a -20 °C or -40 °C lower section for simultaneous multi-condition testing in one unit.
Key specifications
- Temperature range
- Upper: 2-8 °C; lower: -20 °C or -40 °C
- Accuracy
- ±3.0 °C
- Uniformity
- ±10.0 °C
- Control system
- PLC or PID based
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Dual Chamber
Request a quoteOverview
Product overview

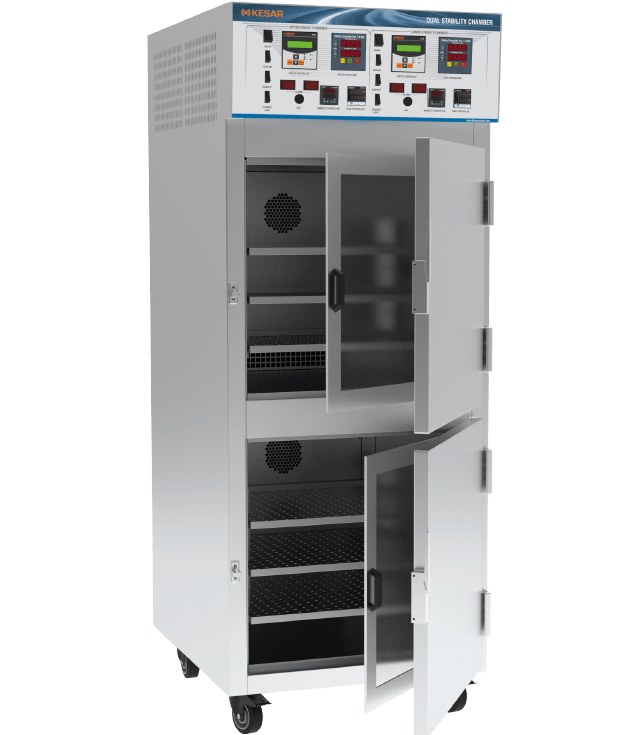

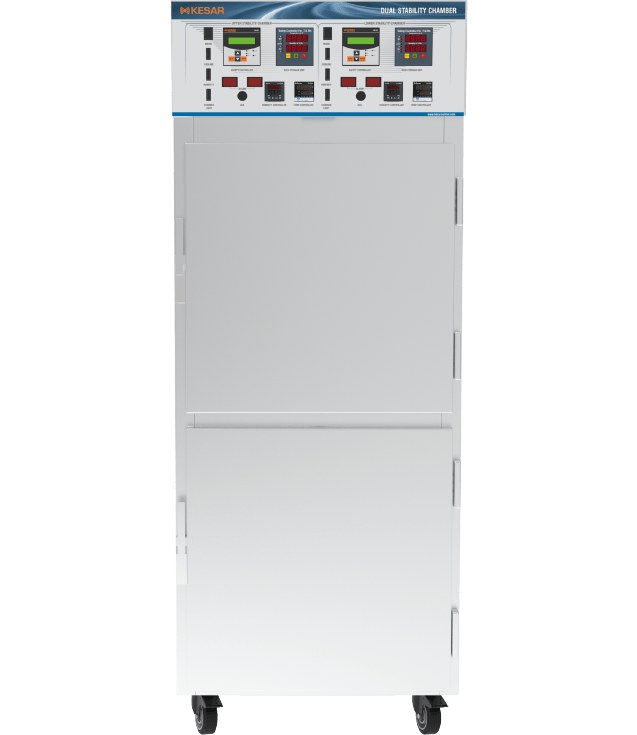

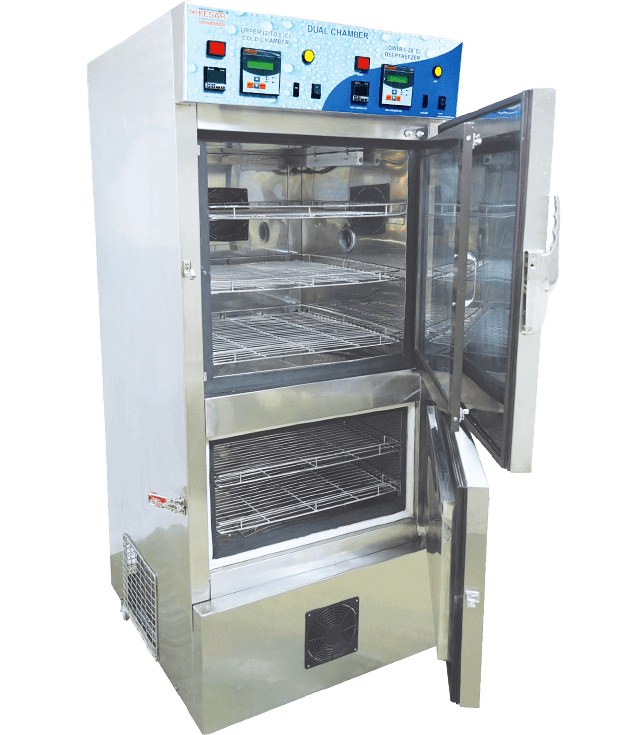

The Kesar dual chamber houses two independently controlled compartments in one cabinet, so samples can be held under two different conditions at once, for example 2-8 °C above and -20 °C or -40 °C below. This saves floor space and reduces operating cost compared with running two separate units.
Built on CNC-fabricated stainless steel or powder-coated steel with a stainless steel interior, insulated doors with a magnetic gasket and a transparent inner glass door, it also uses hermetic CFC-free compressors and heavy castor wheels. The maker states the chambers meet ICH Q1A stability guidelines.
Dual digital displays (HMI and PID) allow independent monitoring of each compartment, with alarms for deviation, door opening and power failure and USB and Ethernet data logging. The page notes that the dual concept is also available in stability chamber and BOD incubator versions.
Specifications
Technical specifications
8 parameters
Performance
- Temperature range
- Upper: 2-8 °C; lower: -20 °C or -40 °C
- Accuracy
- ±3.0 °C
- Uniformity
- ±10.0 °C
Control
- Control system
- PLC or PID based
Construction
- Material of construction
- Interior SS 304 dull finish; exterior G.I. powder coated (STD). GMP: SS 304 interior and exterior. CGMP: SS 316 interior, SS 304 exterior.
Models
- KGO2C-90
- Upper 90 L (2-8 °C) and lower 90 L (-20 °C), each internal 450 x 450 x 450 mm; external 750 x 1030 x 1800 mm; 2 trays each
- KGO2C-200/100
- Upper 200 L (2-8 °C) internal 600 x 600 x 600 mm; lower 100 L (-20 °C) internal 600 x 600 x 300 mm; external 850 x 1050 x 1900 mm; 2 trays each
- KGO2C-200
- Upper 200 L (2-8 °C) and lower 200 L (-20 °C), each internal 600 x 600 x 600 mm; external 850 x 1050 x 2200 mm; 2 trays each
Features
Key features
- 01
Independent compartments
Separate temperature (and humidity for stability versions) control for each section.
- 02
Space-saving design
Two test conditions in one footprint.
- 03
Magnetic-gasket insulated doors
Air-tight seal with a transparent inner glass door for viewing.
- 04
Dual displays
HMI and PID displays for each compartment.
- 05
Alarms and logging
Alerts for deviation, door opening and power failure; USB and Ethernet data logging.
- 06
CFC-free refrigeration
Hermetic compressors with CFC-free refrigerant; heavy castor wheels for mobility.
