Horizontal Laminar Air Flow
Horizontal laminar air flow (HLAF) workstation from Kesar giving ISO Class 5 HEPA-filtered clean air across the work area, in SS-304 or SS-316 construction.
Key specifications
- Air cleanliness
- ISO Class 5
- Airflow direction
- Horizontal
- Air velocity
- 0.45 ± 0.05 m/s
- HEPA filter efficiency
- 99.997 % at 0.3 µm (H14)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Horizontal Laminar Air Flow
Request a quoteOverview
Product overview

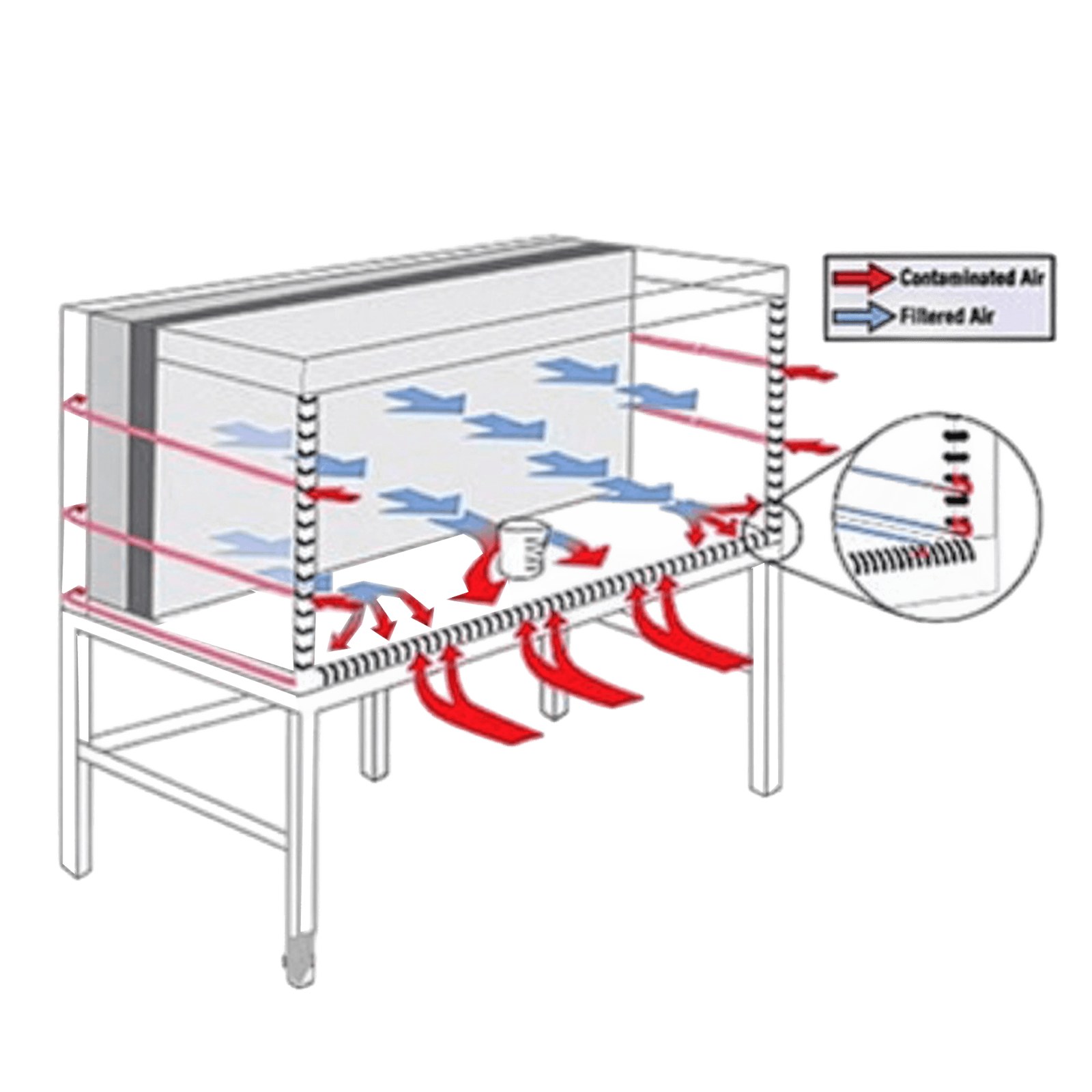

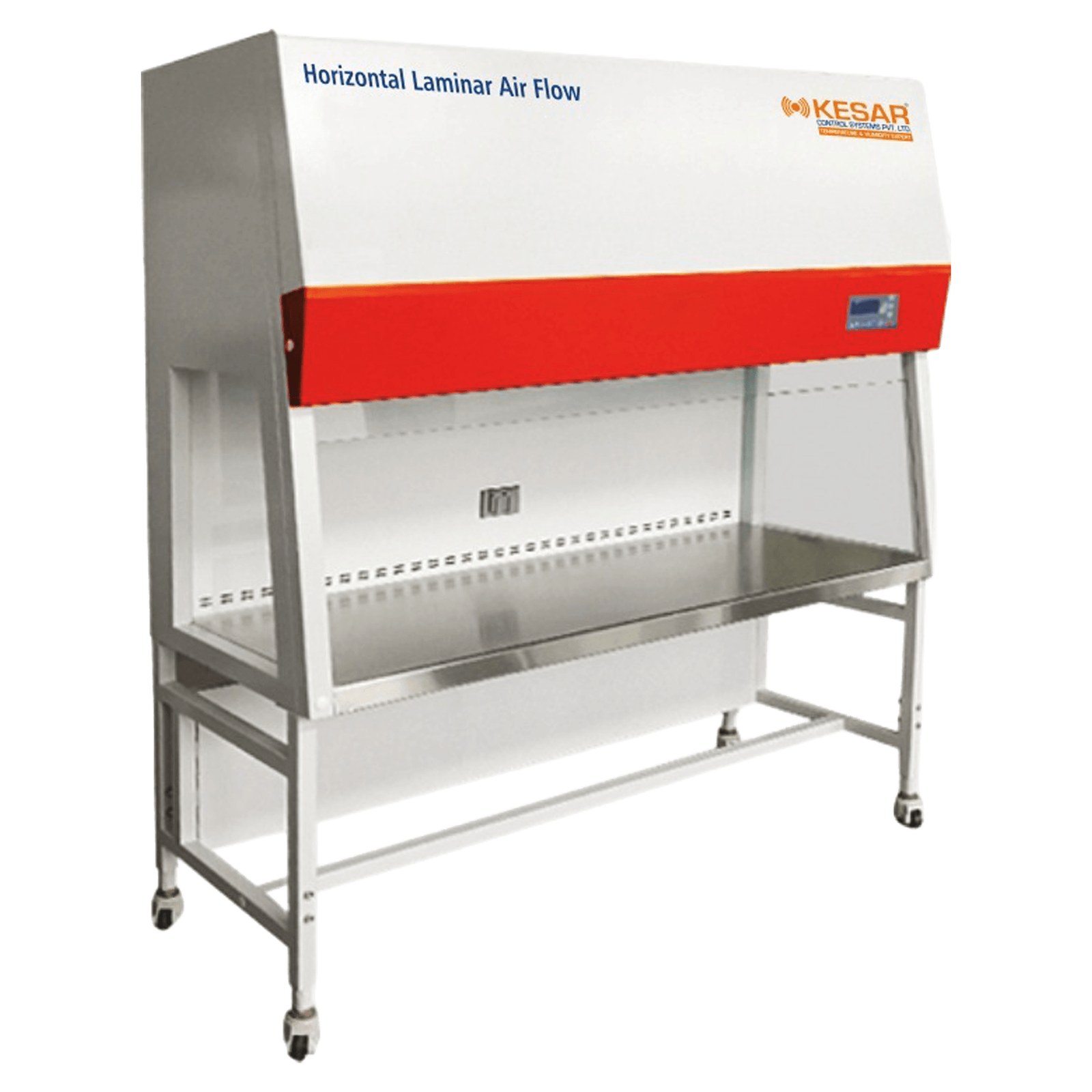

The Kesar Horizontal Laminar Air Flow unit supplies HEPA-filtered air horizontally across the work surface, giving a particle-free ISO Class 5 working zone for pharmaceutical, microbiology and sterile preparation work.
Filtration is two-stage: an EU4/G4 non-woven pre-filter and an H14 mini-pleat HEPA filter with 99.997 % efficiency at 0.3 micron. The cabinet is SS-304 or SS-316 with a mirror-finished work surface, smooth internal corners and transparent side panels.
A feather-touch LED panel controls the blower, lighting and UV germicidal lamp timer, with a magnehelic differential pressure gauge and hour meter. Noise is rated at 65 dB or lower, and an optional filter blockage alarm is listed.
Specifications
Technical specifications
12 parameters
Performance
- Air cleanliness
- ISO Class 5
- Airflow direction
- Horizontal
- Air velocity
- 0.45 ± 0.05 m/s
- HEPA filter efficiency
- 99.997 % at 0.3 µm (H14)
- Pre-filter efficiency
- 95 % at 5 µm (EU4/G4)
- Noise level
- ≤ 65 dB
- Lighting intensity
- ≥ 300 lux
Electrical
- Power supply
- Single phase 220-230 V, 50 Hz
Construction
- Material of construction
- SS-304 / SS-316
Models
- KGVLAF (610 size)
- HEPA area 610 x 610 mm; inner working area 610 x 610 x 610 mm; outer 710 x 1060 x 1450 mm
- KGVLAF (915 size)
- HEPA area 915 x 610 mm; inner working area 915 x 610 x 610 mm; outer 1015 x 1060 x 1450 mm
- KGVLAF (1220 size)
- HEPA area 1220 x 610 mm; inner working area 1220 x 610 x 610 mm; outer 1330 x 1060 x 1450 mm
Features
Key features
- 01
ISO Class 5 clean air
Horizontal unidirectional flow per ISO 14644-1.
- 02
Two-stage filtration
EU4/G4 pre-filter plus H14 mini-pleat HEPA.
- 03
Touch LED controller
Blower, lighting and pressure display control.
- 04
Magnehelic gauge
Differential pressure monitoring across the filter.
- 05
UV germicidal lamp
Sterilises the work area during idle periods.
- 06
Low noise
Operating noise of 65 dB or lower.
