Reference: KGMF series

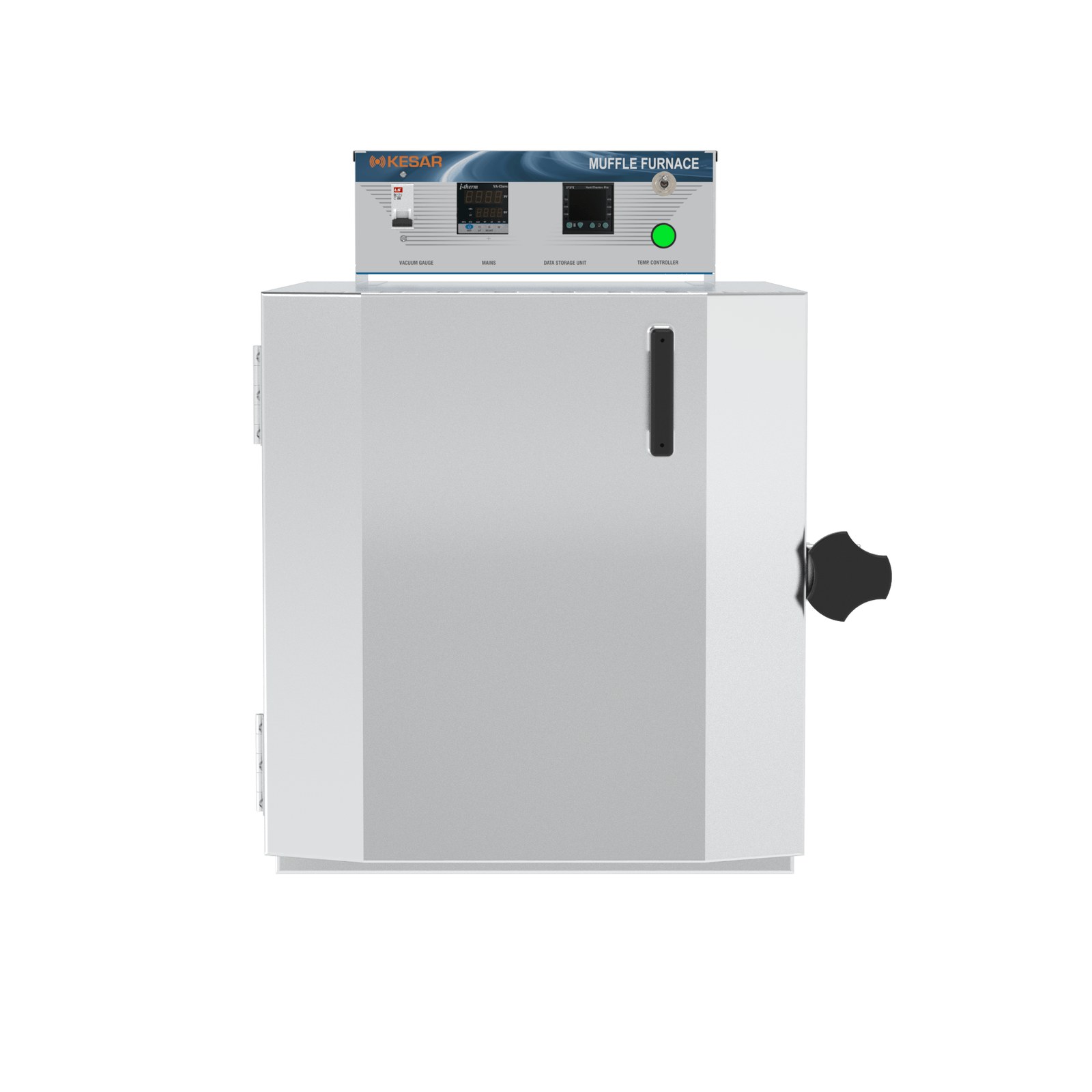

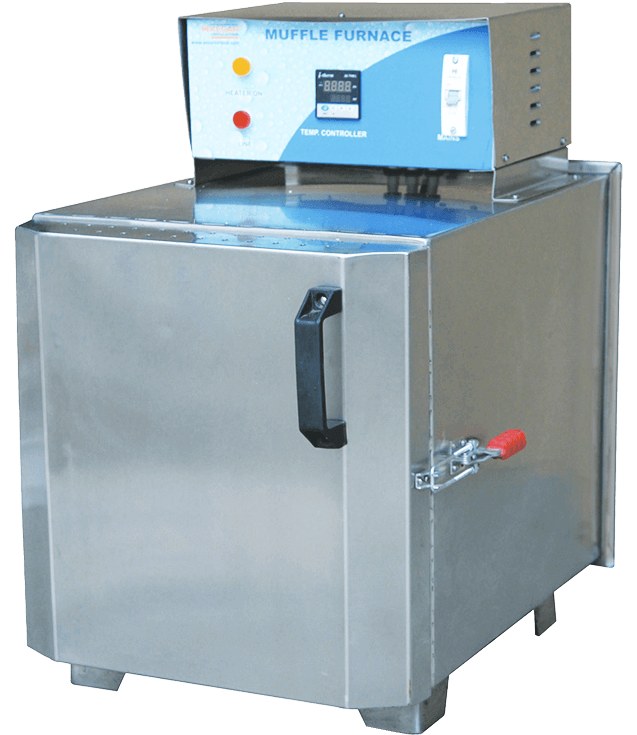

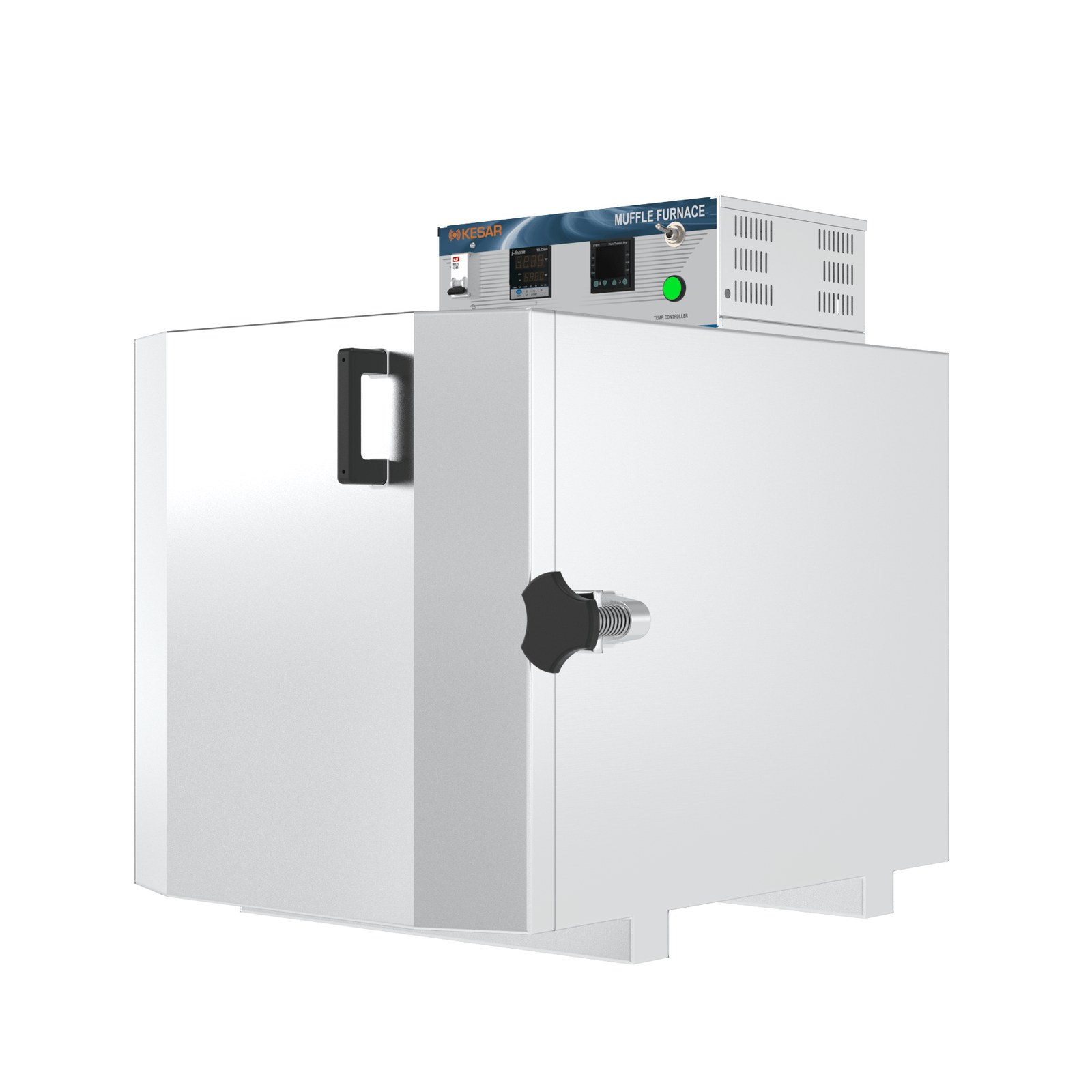

Muffle Furnace
High-temperature muffle furnace from Kesar (KGMF series, 2.3 to 28 litres, up to 1050 or 1150 °C) for ashing, heat treatment and material testing.
Key specifications
- Working temperature range
- 400 °C to 1050 °C or 400 °C to 1150 °C
- Temperature control accuracy
- ±3.0 °C
- Variants
- Muffle for 1050 °C; refractory for 1150 °C
- Power supply
- 230 V AC, single phase, 50 Hz
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Muffle Furnace
Request a quoteOverview
Product overview
The Kesar muffle furnace delivers controlled, even, flame-free heat for ash content determination, ceramic heating, heat treatment, ignition tests and gravimetric analysis in pharmaceutical, chemical and research laboratories.
Kanthal A1 heating elements and ceramic fibre wool insulation give uniform heating and reduce energy use while keeping external surfaces cooler. The exterior is stainless steel and G.I. powder-coated mild steel, with a heat-resistant air-tight door mechanism.
A dual-display microprocessor PID controller with a K-type thermocouple sets the temperature, with a programmable timer, auto-cut-off, overheat protection, data logging and alarms. It is offered as a 1050 °C muffle model and a 1150 °C refractory model in six chamber sizes.
Specifications
Technical specifications
12 parameters
Performance
- Working temperature range
- 400 °C to 1050 °C or 400 °C to 1150 °C
- Temperature control accuracy
- ±3.0 °C
- Variants
- Muffle for 1050 °C; refractory for 1150 °C
Electrical
- Power supply
- 230 V AC, single phase, 50 Hz
Control
- Controller
- Dual-display microprocessor PID; K-type (Cr/Al) thermocouple
Construction
- Heating elements
- Kanthal A1
Models
- KGMF-449
- Inner size 4" x 4" x 9"; 2.3 L; 2000 W
- KGMF-5510
- Inner size 5" x 5" x 10"; 4.25 L; 2500 W
- KGMF-6612
- Inner size 6" x 6" x 12"; 6.75 L; 3500 W
- KGMF-8812
- Inner size 8" x 8" x 12"; 12 L; 4500 W
- KGMF-9918
- Inner size 9" x 9" x 18"; 23.80 L; 7000 W
- KGMF-121212
- Inner size 12" x 12" x 12"; 28 L; 7500 W
Features
Key features
- 01
High-temperature heating
400 °C to 1050 °C, or 400 °C to 1150 °C for the refractory version.
- 02
Kanthal A1 elements
Uniform heating for precise thermal processing.
- 03
Ceramic fibre insulation
Reduces heat loss and keeps external surfaces cooler.
- 04
PID control
Dual-display microprocessor PID with programmable timer and set-point adjustment.
- 05
Safety
Auto-cut-off, overheat protection, secure door mechanism and alarms.
- 06
Data logging
Records temperature history for compliance tracking.
