Reference: KCSDH-100 / 150 / 200
Portable Refrigerated Dehumidifier
Portable refrigeration-type dehumidifier from Kesar (KCSDH-100, 150, 200) removing 100 to 200 litres of moisture per day for labs, pharma and storage areas.
Key specifications
- Moisture extraction at 30 °C and 80 % RH
- KCSDH-100: 100 L/day; KCSDH-150: 150 L/day; KCSDH-200: 200 L/day
- Moisture extraction at 23 °C and 60 % RH
- KCSDH-100: 50 L/day; KCSDH-150: 75 L/day; KCSDH-200: 100 L/day
- Coverage area (non A.C.)
- KCSDH-100: 800 sq ft (8000 ft3 / 226 m3); KCSDH-150: 1200 sq ft (12000 ft3 / 399 m3 as published); KCSDH-200: 1600 sq ft (16000 ft3 / 453 m3)
- Coverage area (A.C. without AHU)
- KCSDH-100: 400 sq ft (4000 ft3 / 113 m3); KCSDH-150: 600 sq ft (6000 ft3 / 169 m3); KCSDH-200: 800 sq ft (8000 ft3 / 226 m3)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Portable Refrigerated Dehumidifier
Request a quoteOverview
Product overview

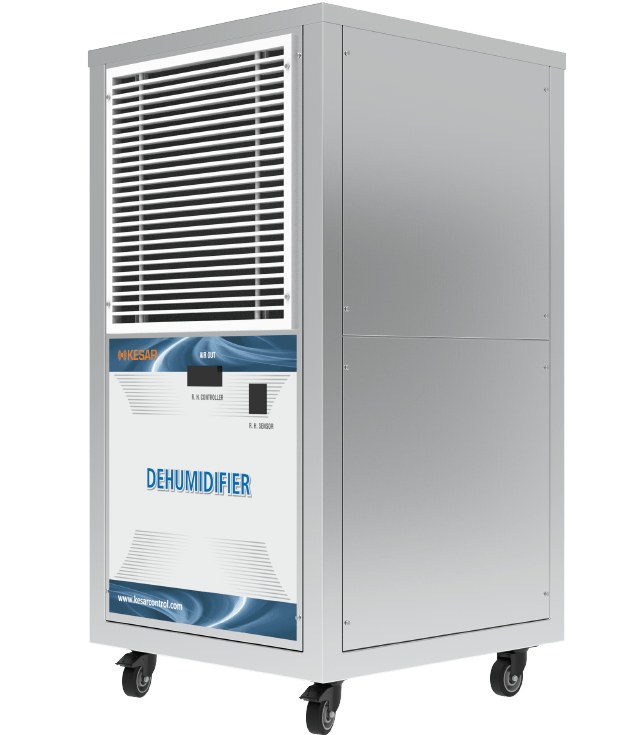

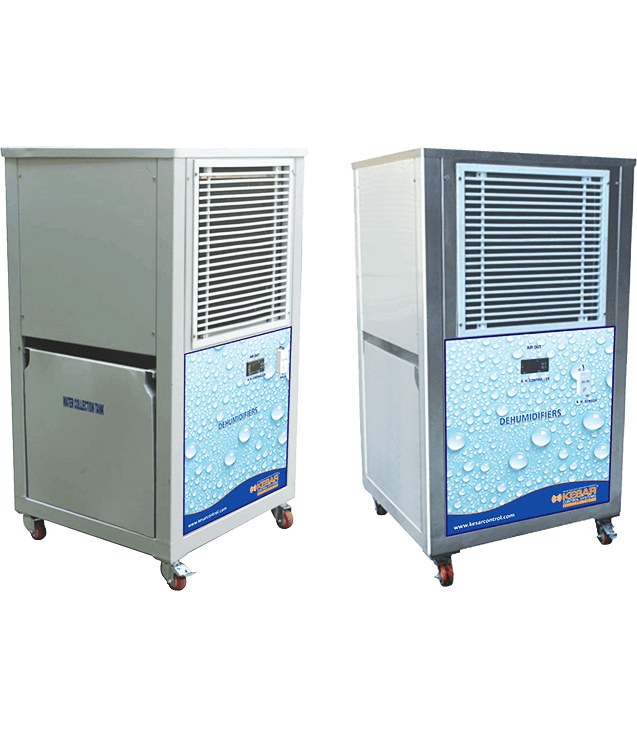

The Kesar portable refrigerated dehumidifier removes excess moisture from the air by condensing it on a cooling coil. It is aimed at laboratories, pharmaceutical facilities, storage units and industrial spaces where humidity must be controlled to prevent mould, corrosion and product degradation.

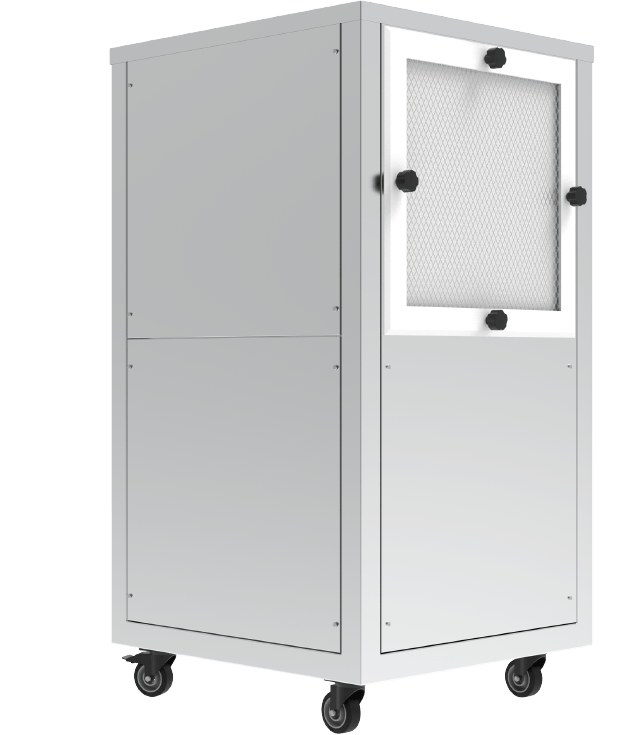

The SS-304 body is mounted on castor wheels for moving between spaces. A built-in 22-litre tank or direct drain handles condensate, and a 20-micron air filter removes dust.
A microprocessor humidity controller with digital display and timer regulates operation, restarts automatically after power interruption, and an overload protection safeguards components. Three models are offered with 100, 150 and 200 litres per day extraction at 30 °C and 80 %RH.
Specifications
Technical specifications
13 parameters
Capacity
- Moisture extraction at 30 °C and 80 % RH
- KCSDH-100: 100 L/day; KCSDH-150: 150 L/day; KCSDH-200: 200 L/day
- Moisture extraction at 23 °C and 60 % RH
- KCSDH-100: 50 L/day; KCSDH-150: 75 L/day; KCSDH-200: 100 L/day
Coverage
- Coverage area (non A.C.)
- KCSDH-100: 800 sq ft (8000 ft3 / 226 m3); KCSDH-150: 1200 sq ft (12000 ft3 / 399 m3 as published); KCSDH-200: 1600 sq ft (16000 ft3 / 453 m3)
- Coverage area (A.C. without AHU)
- KCSDH-100: 400 sq ft (4000 ft3 / 113 m3); KCSDH-150: 600 sq ft (6000 ft3 / 169 m3); KCSDH-200: 800 sq ft (8000 ft3 / 226 m3)
Mechanical
- Compressor
- Reciprocating: 3.5 kW / 5.25 kW / 7 kW
- Air flow (axial fan)
- 1850 / 2300 / 2600 m3/hr
- Refrigerant
- R-22
- Water collection tank
- 22 L
- Air filter
- 20 micron
- Noise level
- 72 / 82 / 82 dB
- Body material
- SS-304
- Dimensions (W x D x H)
- 21.5" x 20" x 38.5"
Electrical
- Power
- 440 V or 220 V AC, 50 Hz
Features
Key features
- 01
Refrigeration-based dehumidification
Cooling coil condenses moisture out of the air.
- 02
Digital humidity control
Microprocessor controller with display, adjustable set points and timer.
- 03
Auto restart
Previous settings restored after power interruption.
- 04
Drainage options
22-litre removable tank or direct drain facility.
- 05
Air filtration
20-micron filter removes airborne dust.
- 06
Portable SS-304 body
Castor wheels for easy movement; overload protection for components.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
