Reference: KGOV series
Vacuum Oven
Vacuum drying oven from Kesar (KGOV series, round and rectangular chambers) heating from ambient +50 °C to 200 °C under reduced pressure.
Key specifications
- Temperature range
- Ambient +50 °C to 200 °C
- Accuracy
- ±2.0 °C
- Vacuum range
- More than -700 mm of Hg
- Control system
- Digital PID controller with analog vacuum meter
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Vacuum Oven
Request a quoteOverview
Product overview

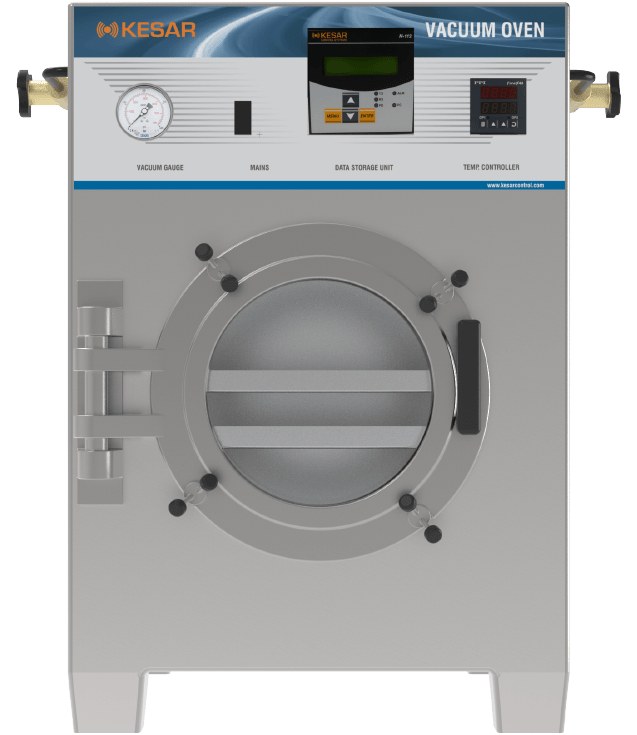

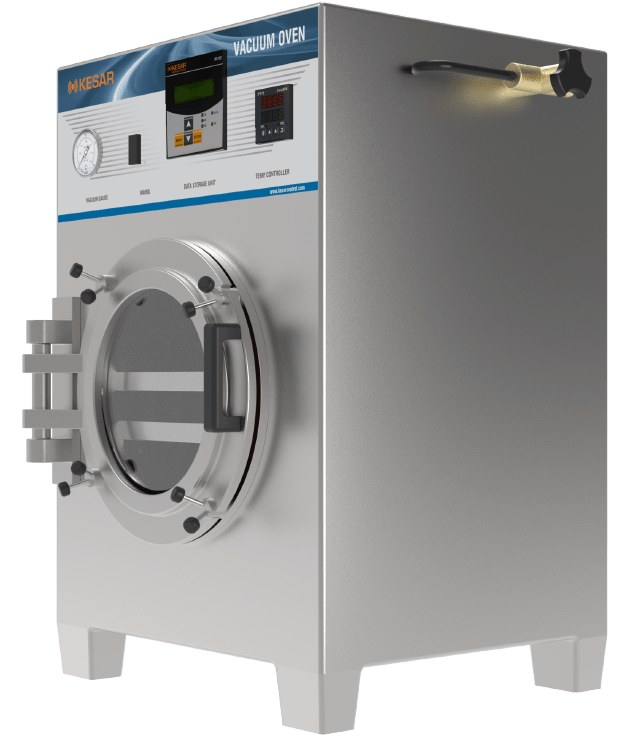

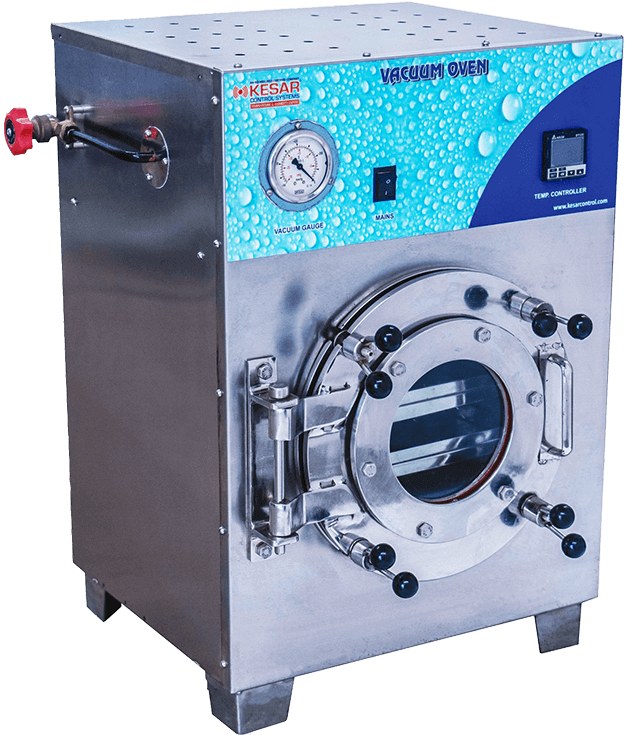

The Kesar vacuum oven dries, degasses and heat-treats materials under reduced pressure, removing moisture, solvents and volatiles from heat-sensitive samples with less oxidation and thermal decomposition than a conventional oven.
The double-walled stainless steel body with matt finish is insulated with glass wool. The door has a glass viewing window, silicone gasket and positive latch so a vacuum of better than -700 mm Hg can be held while samples are observed. Adjustable stainless steel shelves are included.
A microprocessor PID controller with digital display, an analog vacuum meter, overheat protection and a vacuum control NRV valve for setting the required pressure make up the control side. Round (KGOV-12, 28, 52) and rectangular (KGOV-28, 95, 137) chamber sizes are listed.
Specifications
Technical specifications
10 parameters
Performance
- Temperature range
- Ambient +50 °C to 200 °C
- Accuracy
- ±2.0 °C
- Vacuum range
- More than -700 mm of Hg
Control
- Control system
- Digital PID controller with analog vacuum meter
Models
- KGOV-12 (round)
- Chamber 9" dia x 12" depth
- KGOV-28 (round)
- Chamber 12" dia x 15" depth
- KGOV-52 (round)
- Chamber 15" dia x 18" depth
- KGOV-28 (rectangular)
- Chamber 12" x 12" x 12" (W x D x H)
- KGOV-95 (rectangular)
- Chamber 18" x 18" x 18" (W x D x H)
- KGOV-137 (rectangular)
- Chamber 20" x 20" x 21" (W x D x H)
Features
Key features
- 01
Vacuum drying
Removes moisture and solvents at reduced pressure to protect heat-sensitive samples.
- 02
Double-walled stainless steel
Matt-finish stainless steel inside and out with glass wool insulation.
- 03
Sealed viewing door
Glass window, silicone gasket and positive latch maintain vacuum.
- 04
Vacuum control
NRV valve allows fine adjustment of vacuum pressure; analog vacuum meter.
- 05
PID temperature control
Microprocessor PID with digital display of temperature and vacuum status.
- 06
Overheat protection
Mechanism shuts off the system to prevent excessive heating.
