Vertical Laminar Air Flow
Vertical laminar air flow (VLF) cabinet from Kesar delivering HEPA-filtered air top to bottom for an ISO Class 5 working zone, in SS-304 or SS-316.
Key specifications
- Air cleanliness
- ISO Class 5
- Airflow direction
- Vertical
- Air velocity
- 0.45 ± 0.05 m/s
- HEPA filter efficiency
- 99.997 % at 0.3 µm (H14)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Vertical Laminar Air Flow
Request a quoteOverview
Product overview

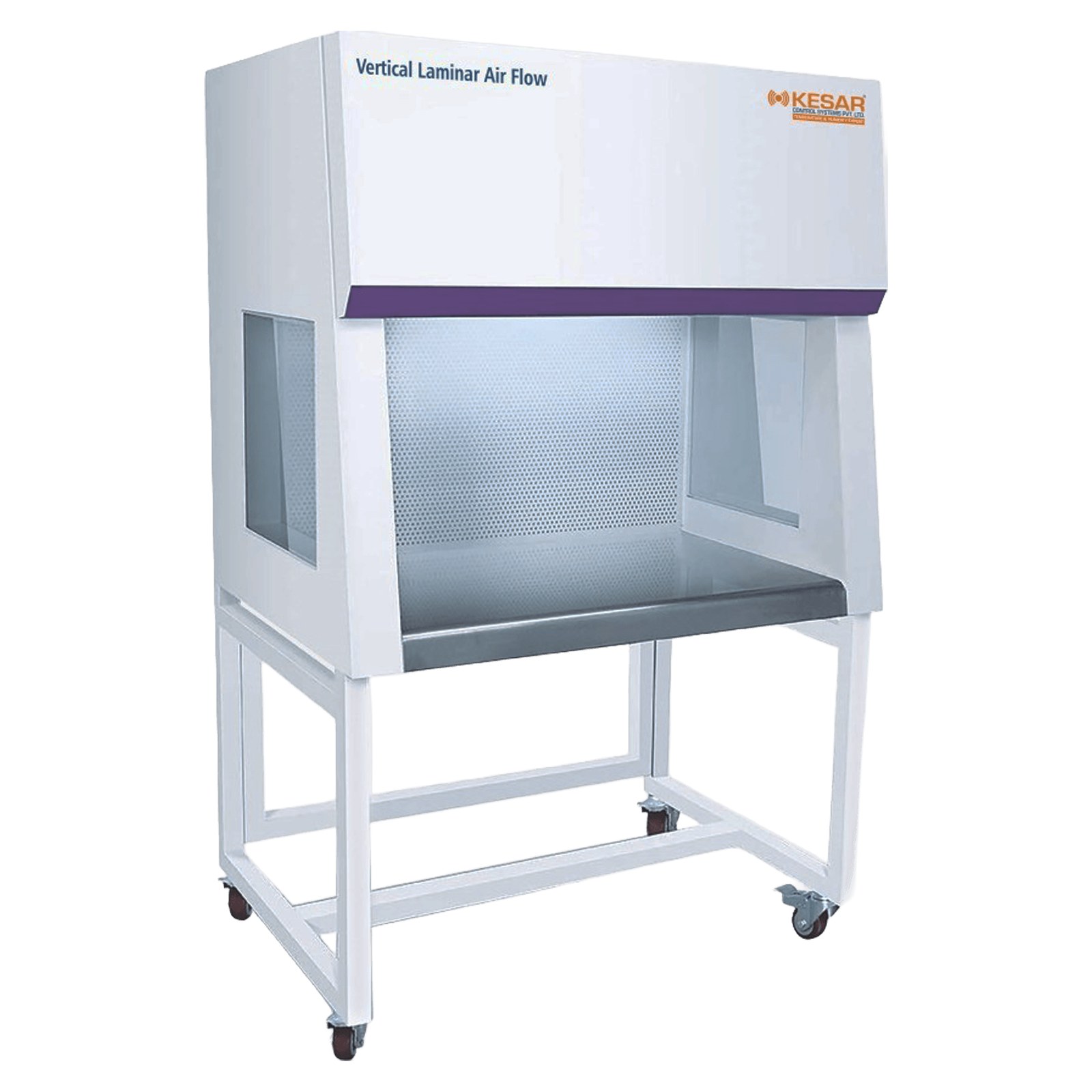

The Kesar Vertical Laminar Air Flow unit delivers HEPA-filtered air from top to bottom in a unidirectional stream that sweeps particles away from the work surface and maintains ISO Class 5 clean air.
It uses a two-stage system of a non-woven EU4/G4 pre-filter and an H14 mini-pleat HEPA filter at 99.997 % efficiency for particles of 0.3 micron and larger. The SS-304 or SS-316 cabinet has smooth inner surfaces, a perforated stainless steel work table and transparent side panels, and follows GMP guidelines.
Controls include a feather-touch LED panel for blower, lighting and UV lamp timer, a magnehelic pressure gauge and a digital hour meter. Applications listed include pharmaceutical and microbiology laboratories, tissue culture, sterile drug preparation, electronics assembly and food quality testing.
Specifications
Technical specifications
12 parameters
Performance
- Air cleanliness
- ISO Class 5
- Airflow direction
- Vertical
- Air velocity
- 0.45 ± 0.05 m/s
- HEPA filter efficiency
- 99.997 % at 0.3 µm (H14)
- Pre-filter efficiency
- 95 % at 5 µm
- Noise level
- ≤ 65 dB
- Lighting
- ≥ 300 lux
Electrical
- Power supply
- Single phase 220-230 V, 50 Hz
Construction
- Material of construction
- SS-304 / SS-316
Models
- KGVLAF (610 size)
- HEPA area 610 x 610 mm; inner working area 610 x 610 x 610 mm; outer 710 x 1060 x 1450 mm
- KGVLAF (915 size)
- HEPA area 915 x 610 mm; inner working area 915 x 610 x 610 mm; outer 1015 x 1060 x 1450 mm
- KGVLAF (1220 size)
- HEPA area 1220 x 610 mm; inner working area 1220 x 610 x 610 mm; outer 1330 x 1060 x 1450 mm
Features
Key features
- 01
ISO Class 5 clean air
Vertical unidirectional flow per ISO 14644-1.
- 02
Two-stage filtration
Pre-filter plus H14 mini-pleat HEPA, 99.997 % at 0.3 micron.
- 03
Perforated work table
Stainless steel perforated sheet table with smooth inner surfaces.
- 04
Touch LED controller
Blower, lighting and UV timer control with hour meter.
- 05
Magnehelic gauge
Differential pressure display.
- 06
UV germicidal lamp
Sterilisation during idle periods; low noise operation at 65 dB or less.
