Reference: FC5
FC5 Hornet Passive Alcohol Sensor
Compact passive alcohol screener that detects alcohol vapour without a mouthpiece or subject cooperation, with three test modes including open-container sampling.
Key specifications
- Sensor
- Electrochemical fuel cell
- Sampling
- Passive
- Power supply
- 4 AA batteries
- Battery life
- Approx. 4,700 tests
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
FC5 Hornet Passive Alcohol Sensor
Request a quoteOverview
Product overview
The FC5 Hornet is a low-cost passive alcohol screening tool for schools, traffic enforcement, probation, jails, mining and other safety-sensitive settings. It needs no mouthpiece or cooperation from the subject and can sample a person's breath, an open container or the surrounding air.
It uses the same alcohol-specific platinum fuel cell technology as Lifeloc's law enforcement breathalyzers, with a sensor the maker states is up to four times larger than those in traditional alcohol wands. Three test modes (Pos/Neg, Zero/Low/High levels and Open Container) and an automatic day/night backlit display adapt it to different screening situations.

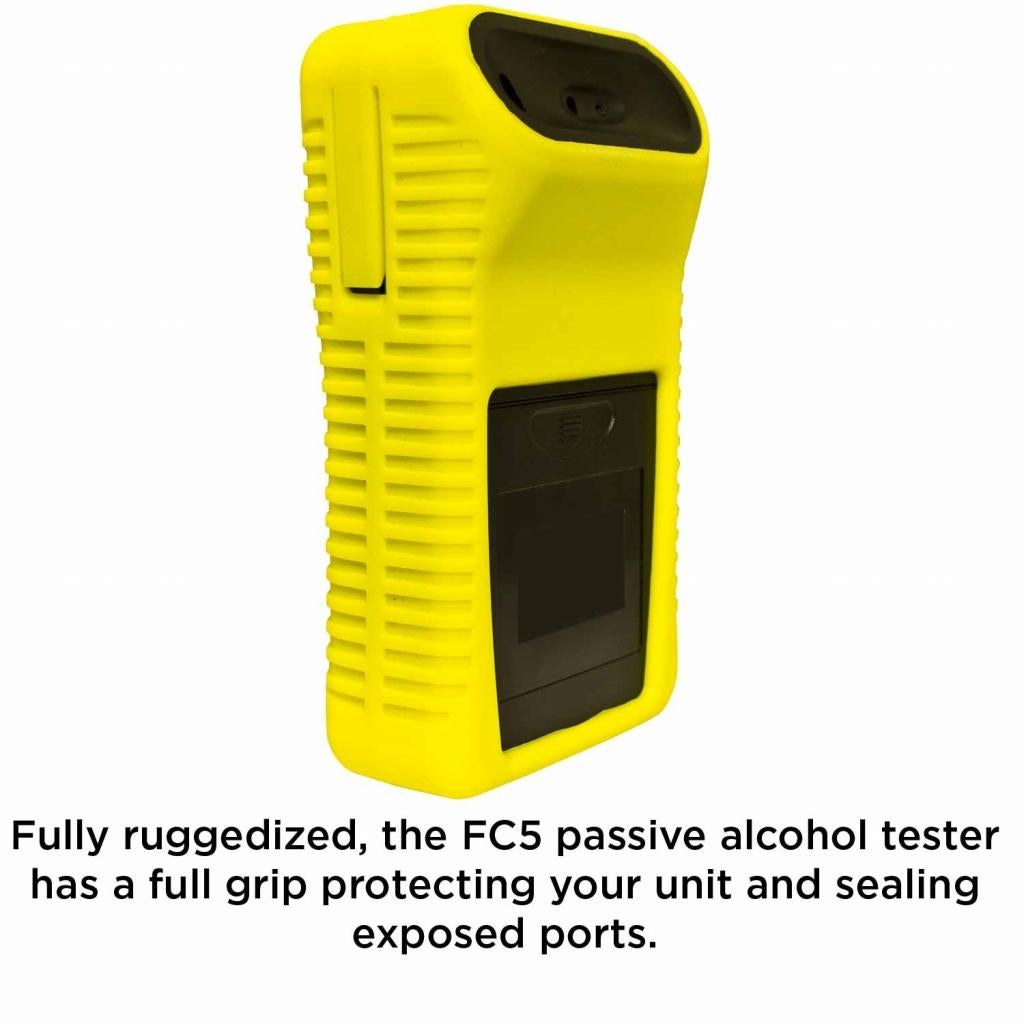

It is supplied with a removable safety-yellow silicone grip, a carry case and four AA batteries, and is made in the USA.
Specifications
Technical specifications
12 parameters
Specifications
- Sensor
- Electrochemical fuel cell
- Sampling
- Passive
- Power supply
- 4 AA batteries
- Battery life
- Approx. 4,700 tests
- Operating temperature
- 32 to 130 F (0 to 55 C)
- Display
- High resolution graphic display
- Size
- 1.25 x 2.5 x 5 in (31.7 x 63.5 x 127 mm)
- Weight with batteries and grip
- 11 oz (311 g)
- Trigger mode
- Automatic and manual
- Response time
- Immediate on negative; under 10 seconds on positive
- Recovery time
- Immediate on negative; under 30 seconds on positive
- Warranty
- 1 year limited
Features
Key features
- 01
Pos/Neg mode
Fast high-volume screening that triggers automatically when the subject blows toward the collector cone.
- 02
Zero/Low/High mode
Reports one of three alcohol levels, with Low below .02 BAC and High above .02 BAC.
- 03
Open Container mode
Samples the air space over drinks or spills using a double-pump action.
- 04
Icon-driven interface
Easy-to-read icons and a battery indicator remove language barriers.
- 05
Backlit day/night display
Lets the operator read results without showing the display to the subject.
- 06
Discreet design
Quiet operation; the yellow grip can be removed for covert use.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
