Alpha 2-4 LSCplus
Compact tabletop freeze dryer with Wireless Shelf Technology: 4 kg ice condenser at −85 °C, LSCplus control, Ethernet, GWP ≤ 6.
View product
Reference: Epsilon 2-12D LSCplus
Epsilon 2-12D LSCplus
Powerful floor-mounted pilot freeze dryer for small batch production and process development with a 12 kg ice condenser at -80 °C.
Key specifications
- Ice condenser capacity
- 12 kg
- Ice condenser temperature
- -80 °C
- Shelf dimensions (W x D)
- 350 x 450 mm
- Number of shelves
- 1 to 6
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Epsilon 2-12D LSCplus
Request a quoteOverview
Product overview

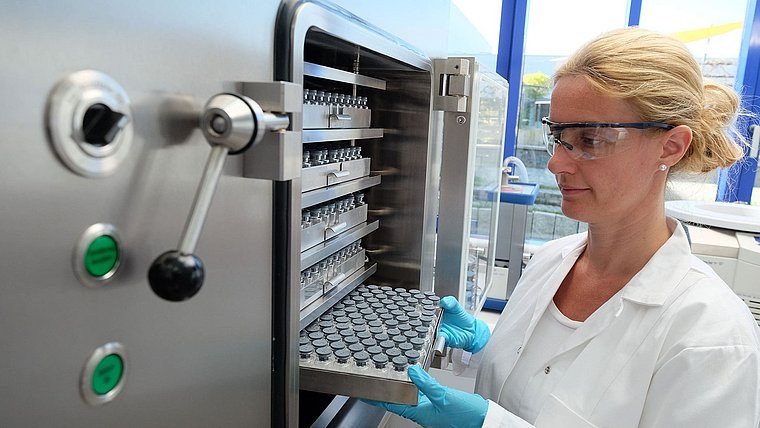

The Epsilon 2-12D LSCplus is a general-purpose, high-performance pilot unit with stainless steel shelves that have internal heat-transfer media channels, built for the demands of the pharmaceutical and biotechnology industries.
It offers up to six shelves with a total area of 0.95 m² and a shelf spacing of 51 mm, plus a hydraulic stoppering device with optional stainless steel bellows seal. Applications include bacteria, viruses, blood plasma, antibodies, vaccines, vitamins, biomass and plant extracts. A sample extraction system is available as an option.
Specifications
Technical specifications
11 parameters
Performance
- Ice condenser capacity
- 12 kg
- Ice condenser temperature
- -80 °C
Shelves
- Shelf dimensions (W x D)
- 350 x 450 mm
- Number of shelves
- 1 to 6
- Shelf area
- 0.16 m² to 0.95 m²
- Shelf spacing
- 381 mm to 51 mm
- Shelf temperature
- -60 °C to +60 °C
- Shelf temperature accuracy
- max. ±1 °C
Cooling
- Cooling system
- Independent systems, water cooled
- Ice condenser cooling system
- 4 kW compressors, two-stage
Dimensions
- Unit dimensions
- 1972 x 1570 x 1397 (H x W x D) mm
Features
Key features
- 01
Up to six shelves
0.16 m² to 0.95 m² shelf area, 350 x 450 mm each.
- 02
Hydraulic stoppering device
Optional stainless steel bellows seal.
- 03
Sample extraction system
Removes sample containers under vacuum through a DN50 lock without interrupting drying.
- 04
WTMplus 2.0 wireless temperature measurement
Optional wireless sensors, measuring range -60 °C to +135 °C, accuracy ±1.0 K.
- 05
Comparative pressure measurement
Two vacuum sensors with different principles indicate the end of primary drying.
- 06
Pharma options
Cleanroom installation, glove box connection, stoppering devices and H2O2 disinfection (depending on model).
- 07
Solvent-resistant version
Chemical-resistant valves, door seals and vacuum pump for solvent-containing products.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
Keep exploring
More from Martin Christ
Alpha 1-2 LSCbasic
Everyday tabletop freeze dryer: 2.5 kg ice condenser at −55 °C, LSCbasic touch, USB + LAN, GWP 2 — 315 × 345 × 470 mm, 32 kg.
View product
Gamma 2-16 LSCplus
Compact benchtop freeze dryer for larger sample quantities: 16 kg ice condenser at −85 °C, LSCplus, Ethernet, GWP ≤ 6.
View product
Epsilon 2-10D LSCplus
Pilot freeze dryer for small-batch production: 10 kg ice condenser at −88 °C, 1–7 shelves 350 × 400 mm (0.14–0.98 m²), ±1 °C.
View product
Talk to the technical team
Tell us the application. We will specify the system.
Share the workflow, capacity, and compliance constraints. We respond with a recommended configuration, not a generic catalogue list.
