Reference: Epsilon 2-40 to 2-220

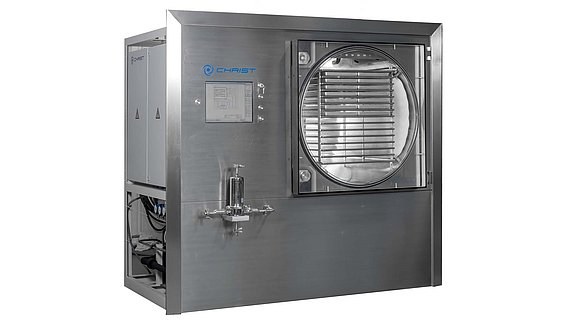

Epsilon Bulk Production Series
Single-chamber production freeze dryers for tray (bulk) drying with ice condensers directly in the drying chamber, from 40 to 220 kg ice capacity.
Key specifications
- Models
- Epsilon 2-40, 2-60, 2-90, 2-220
- Max. shelf area (m²)
- 3.6 / 5.4 / 8.1 / 15.12
- Max. number of shelves
- 10 / 10 / 10 / 14
- Shelf dimensions (W x D) in mm
- 600 x 600 / 600 x 900 / 600 x 1,350 / 900 x 1,200
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Epsilon Bulk Production Series
Request a quoteOverview
Product overview
The Epsilon single-chamber systems are a good choice when high drying performance with low capital and energy cost is the priority. Large shelf area and adjustable shelf spacing make them general-purpose systems with high ice condenser capacity, and liquid temperature-controlled shelves allow precise freezing and drying.
The single-chamber principle suits tray drying of bulk goods such as bacterial suspensions, nanoscale materials or diagnostics. Four preconfigured sizes are offered as a stand-alone unit or prepared for installation into a clean-room wall, with options such as WTMplus, freezing point determination, comparative pressure measurement and manual or semi-automatic loading.
Specifications
Technical specifications
10 parameters
Series
- Models
- Epsilon 2-40, 2-60, 2-90, 2-220
Shelves
- Max. shelf area (m²)
- 3.6 / 5.4 / 8.1 / 15.12
- Max. number of shelves
- 10 / 10 / 10 / 14
- Shelf dimensions (W x D) in mm
- 600 x 600 / 600 x 900 / 600 x 1,350 / 900 x 1,200
Performance
- Ice capacity (kg)
- 40 / 60 / 90 / 220
- Ice condenser temperature
- -75 °C
- Ice condenser performance (kg/24 h)
- 27 / 40 / 60 / 140
- Shelf temperature min. - max.
- -50 °C to +50 °C
Dimensions
- Chamber depth (mm)
- 880 / 1,180 / 1,640 / 2,415
- Chamber diameter (mm)
- 970 / 970 / 970 / 1,388
Features
Key features
- 01
Four sizes
Epsilon 2-40, 2-60, 2-90, 2-220; ice capacity 40 to 220 kg.
- 02
Tray drying
Shelves up to 900 x 1,200 mm, up to 14 shelves.
- 03
Precise temperature control
Liquid temperature-controlled shelves, -50 °C to +50 °C.
- 04
Process monitoring
WTMplus, LyoControl freezing point determination and comparative pressure measurement.
- 05
Installation options
Stand-alone or prepared for clean-room wall integration.
