LyoShuttle Trays

Fully automatic or semi-automatic loading and unloading system for trays, using a battery-powered wireless robot on rails with no moving components inside the freeze dryer.

Pharmaceutical / Laboratory

Configured to your application by our specialists
Installed and commissioned on site
Training and after-sales support across Jordan, the GCC and MENA

LyoShuttle Trays

Overview

Product overview

The LyoShuttle Trays system was designed for loading and unloading trays and is available in fully automatic or semi-automatic versions. A battery-powered wireless robot moves horizontally along rails at a uniform loading level, driven precisely and smoothly by a toothed belt, and communicates wirelessly with the controller, so there are no moving components inside the freeze dryer.

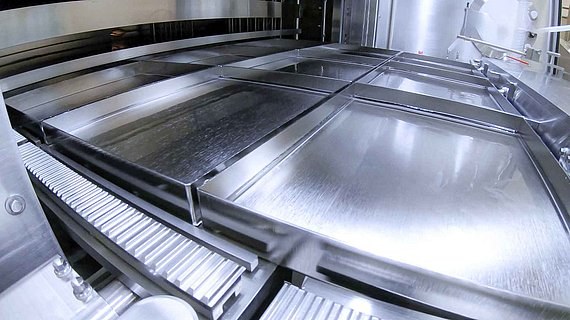

During loading the robot pushes the trays in row by row, with the rows linked by hooks. After the cycle the robot pulls the rows out, the hooks let them be separated again, and the trays can move on by conveyor to the next step. In the semi-automatic version the trays are positioned manually and then conveyed in automatically. The system can be combined with Motus filling systems.

Features

Key features

01
Wireless battery robot
Moves along rails; no moving parts inside the dryer.
02
Toothed belt drive
Precise, smooth movement along the rails.
03
Hook-linked tray rows
Rows are pushed in together and pulled out and separated again.
04
Automatic or semi-automatic
Trays positioned manually in the semi-automatic version.
05
Integration with filling
Can be combined with filling systems from Motus.
