LyoShuttle Loading and Unloading System

Patent-pending automatic loading robot for production freeze dryers that moves only in front of, behind and beneath the vials, with no moving parts above the product.

Pharmaceutical / Laboratory

Configured to your application by our specialists
Installed and commissioned on site
Training and after-sales support across Jordan, the GCC and MENA

LyoShuttle Loading and Unloading System

Overview

Product overview

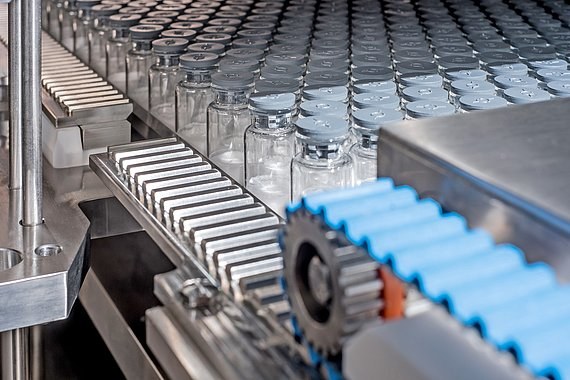

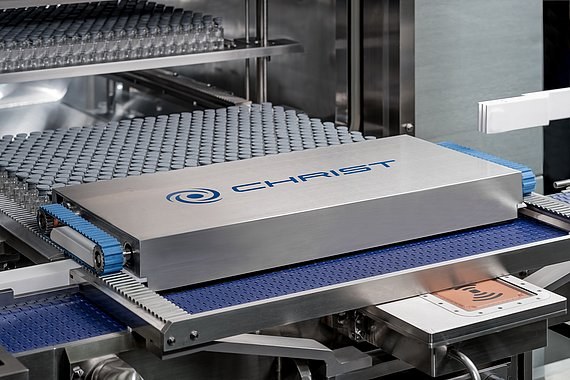

The LyoShuttle is an automated loading and unloading system in which a battery-powered robot moves horizontally on rails at a constant loading level beside the shelf set, driven by timing belts. The batteries charge wirelessly in the parked position and the robot communicates wirelessly with the controller.

Because the unloading beam moves beneath the loaded shelves, nothing moves above the vials, and no extra headroom is needed above capped vials, so the freeze dryer can be lower. The compact, GMP-oriented design suits isolators and LAF units, integrates with the LPCplus automation, and optional redundant batteries and chargers support cGMP availability.

Features

Key features

01
No moving parts above vials
Unloading beam travels below the shelves.
02
Lower freeze dryer
No additional 50 mm per shelf above capped vials.
03
Wireless operation
Battery-powered robot, wireless charging and communication.
04
GMP and containment-ready
Compact, easy to clean, suitable for isolators and LAF units.
05
LPCplus integration
Loading, unloading and drying visualized and documented continuously.
06
Optional redundancy
Redundant batteries and charging stations.
