Reference: RVC 2-18 CDplus

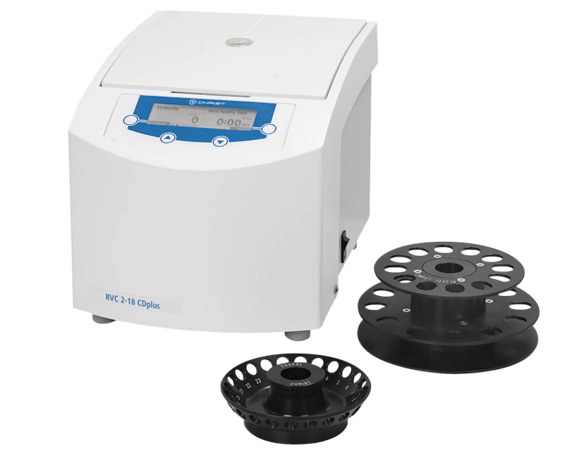

RVC 2-18 CDplus
Compact benchtop mini rotary vacuum concentrator for gentle, splash-free evaporation of DNA/RNA, proteins and other liquid samples.
Key specifications
- Dimensions of basic unit (H x W x D)
- 240 x 240 x 345 mm
- Weight
- 14 kg
- Vacuum pump
- MZ 2C (end vacuum 8 mbar) or MD 4C (end vacuum 2 mbar)
- Speed
- 1500 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
RVC 2-18 CDplus
Request a quoteOverview
Product overview
The RVC 2-18 CDplus is a compact benchtop mini concentrator for fast and efficient vacuum concentration. Variable-speed magnetic drive, automatic venting and internal control of vacuum application and release prevent sample splashing.
It handles DNA/RNA, proteins and other liquid specimens gently, with container volumes from 0.2 ml to 50 ml and up to 72 Eppendorf caps. The glass cover resists organic solvents such as TFA and DMSO, and a wide variety of rotors can be fitted.
Specifications
Technical specifications
7 parameters
Dimensions
- Dimensions of basic unit (H x W x D)
- 240 x 240 x 345 mm
- Weight
- 14 kg
Vacuum
- Vacuum pump
- MZ 2C (end vacuum 8 mbar) or MD 4C (end vacuum 2 mbar)
Performance
- Speed
- 1500 rpm
- Temperature adjustment range
- +30 °C to +60 °C
Capacity
- Container volume
- 0.2 ml - 50 ml
- Specimen capacity
- max. 72 Eppendorf caps
Features
Key features
- 01
Splash-free processing
Variable-speed magnetic drive, automatic venting and internal control of vacuum application and release.
- 02
Solvent-resistant glass cover
High resistance to organic solvents such as TFA and DMSO.
- 03
Compact footprint
240 x 240 x 345 mm, 14 kg.
- 04
Wide choice of rotors
Many rotors are available for configuring the concentrator to individual needs.
