Reference: RVC 2-33 CDplus
RVC 2-33 CDplus
Benchtop maxi rotary vacuum concentrator for large sample volumes, with up to 216 Eppendorf caps and containers up to 150 ml.
Key specifications
- Dimensions of basic unit (H x W x D)
- 315 x 390 x 536 mm
- Weight
- 44 kg
- Vacuum pump
- MZ 2C (end vacuum 8 mbar) or MD 4C (end vacuum 2 mbar)
- Speed
- max 1550 rpm (variable)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
RVC 2-33 CDplus
Request a quoteOverview
Product overview

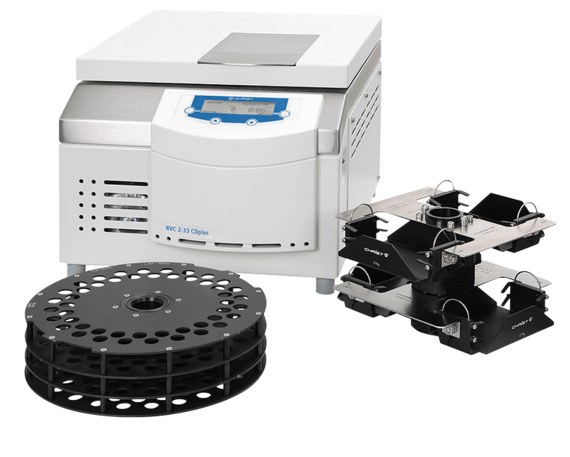

The RVC 2-33 CDplus is a compact benchtop maxi concentrator for fast, efficient vacuum concentration of large sample volumes. Variable-speed magnetic drive, automatic venting and internal control of vacuum application and release prevent splashing.
Container volumes range from 1 ml to 150 ml with up to 216 Eppendorf caps. It handles DNA/RNA, proteins and other liquid specimens gently, the glass cover resists solvents such as TFA and DMSO, and many rotors can be fitted.
Specifications
Technical specifications
7 parameters
Dimensions
- Dimensions of basic unit (H x W x D)
- 315 x 390 x 536 mm
- Weight
- 44 kg
Vacuum
- Vacuum pump
- MZ 2C (end vacuum 8 mbar) or MD 4C (end vacuum 2 mbar)
Performance
- Speed
- max 1550 rpm (variable)
- Temperature adjustment range
- +30 °C to +80 °C
Capacity
- Container volume
- 1 ml - 150 ml
- Specimen capacity
- max. 216 Eppendorf caps
Features
Key features
- 01
Splash-free processing
Variable-speed magnetic drive, automatic venting and internal control of vacuum application and release.
- 02
Solvent-resistant glass cover
High resistance to organic solvents such as TFA and DMSO.
- 03
Large capacity
Up to 216 Eppendorf caps, containers from 1 ml to 150 ml.
- 04
Wide choice of rotors
Many rotors are available for configuring the concentrator to individual needs.
