Reference: RVC 2-33 CDplus Infrared

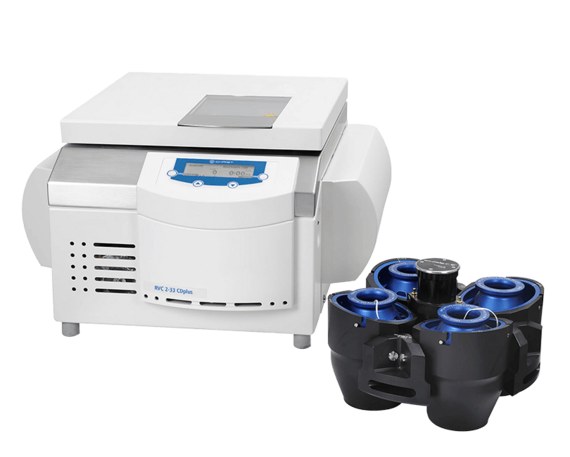

RVC 2-33 CDplus Infrared
Rotary vacuum concentrator with halogen infrared heating for fast, efficient solvent concentration and programmable operation.
Key specifications
- Dimensions of basic unit (H x W x D)
- 315 x 550 x 536 mm
- Weight
- 48 kg
- Vacuum pump
- MD 4C (end vacuum 2 mbar) or RC 6 (end vacuum 2x10-3 mbar)
- Speed
- max 1750 rpm (variable)
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
RVC 2-33 CDplus Infrared
Request a quoteOverview
Product overview
This version of the RVC 2-33 CDplus is a compact, versatile benchtop unit for everyday laboratory use. Heating with four infrared lamps gives fast, efficient vacuum concentration.
Robust measurement data transmission, specimen temperature measurement and programmable operation support optimal results. It accepts container volumes of 1 ml to 500 ml with up to 216 Eppendorf caps, speeds up to 1750 rpm, and the glass cover resists organic solvents such as TFA and DMSO. A wide variety of rotors is available.
Specifications
Technical specifications
8 parameters
Dimensions
- Dimensions of basic unit (H x W x D)
- 315 x 550 x 536 mm
- Weight
- 48 kg
Vacuum
- Vacuum pump
- MD 4C (end vacuum 2 mbar) or RC 6 (end vacuum 2x10-3 mbar)
Performance
- Speed
- max 1750 rpm (variable)
- Temperature adjustment range
- +30 °C to +80 °C
Capacity
- Container volume
- 1 ml - 500 ml
- Specimen capacity
- max. 216 Eppendorf caps
Heating
- Heating
- Four infrared lamps (halogen IR emitter)
Features
Key features
- 01
Infrared heating
Four halogen infrared lamps for efficient energy supply.
- 02
Specimen temperature measurement
With robust measurement data transmission.
- 03
Programmable operation
For reproducible concentration runs.
- 04
Solvent-resistant glass cover
High resistance to organic solvents such as TFA and DMSO.
- 05
Wide choice of rotors
Many rotors are available for configuring the concentrator to individual needs.
