Reference: Push systems (PBP, PBC, PIP)
Vial Push Systems
Pusher loading and unloading systems for production freeze dryers in three designs, handling up to 450 vials/min loading and 600 vials/min unloading.
Key specifications
- Loading speed
- up to 450 vials/min
- Unloading speed
- up to 600 vials/min
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Vial Push Systems
Request a quoteOverview
Product overview

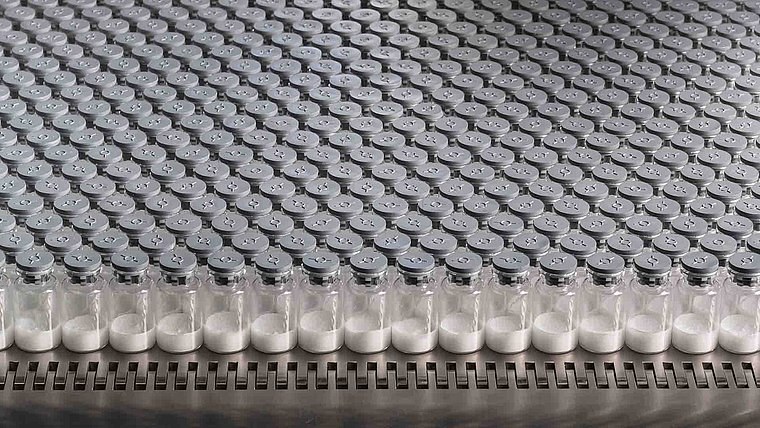

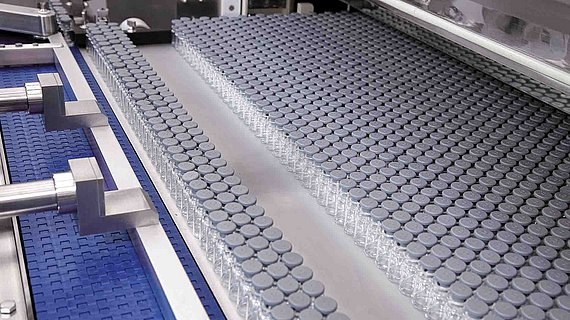

The push systems load vials as structured rows via a conveyor and counting star, and push the row across the shelf of the freeze dryer. Three designs are offered: the Push-BackPusher (PBP) with a backpusher that pushes out one or several rows, the Push-BackChain (PBC) with a chain pusher, and the Push-InsidePush (PIP), where the LyoShuttle robot works from underneath the shelf.
The systems reach up to 450 vials per minute when loading and 600 vials per minute when unloading, with precise counting and placement. They connect to a filling line and capping machine, can distribute vials among several freeze dryers, integrate with RABS or isolators, and use antistatic format parts.
Specifications
Technical specifications
2 parameters
Performance
- Loading speed
- up to 450 vials/min
- Unloading speed
- up to 600 vials/min
Features
Key features
- 01
Push-BackPusher (PBP)
Backpusher with stainless steel covered rod unloads single or multiple rows.
- 02
Push-BackChain (PBC)
Chain pusher unloads single or multiple rows onto the conveyor.
- 03
Push-InsidePush (PIP)
LyoShuttle robot travels beneath the shelf to push out rows.
- 04
High speed and precision
450 vials/min loading, 600 vials/min unloading.
- 05
Containment integration
Compatible with RABS and isolators; antistatic format parts.
