Reference: alphaCART
alphaCART Mobile Confocal Raman System
Mobile fibre-coupled confocal Raman system with a freely positionable probe for bulky, immovable or precious samples and measurements through glass.
Key specifications
- Spectral range
- ca. 90 to 3500 cm-1 (depends on excitation wavelength)
- Wavelengths available
- 532, 633 or 785 nm (others on request)
- Laser power outputs
- 30 to >200 mW
- Camera
- Thermoelectrically cooled scientific-grade spectroscopic CCD
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
alphaCART Mobile Confocal Raman System
Request a quoteOverview
Product overview
alphaCART is a mobile confocal Raman system for applications that need the lab brought to the sample. Its fibre-coupled Raman probe can be positioned in front of bulky, fragile or immovable objects, and its high confocality allows measurements through protective glass or windows, for example into reaction chambers.
Laser, probe and spectrometer are linked by optical fibres, giving the same diffraction-limited spatial resolution, confocality and sensitivity as witec360 systems. It can be configured with 532, 633 or 785 nm lasers, a choice of objectives, white-light illumination with a colour video camera, and optional polarisation-sensitive measurements.

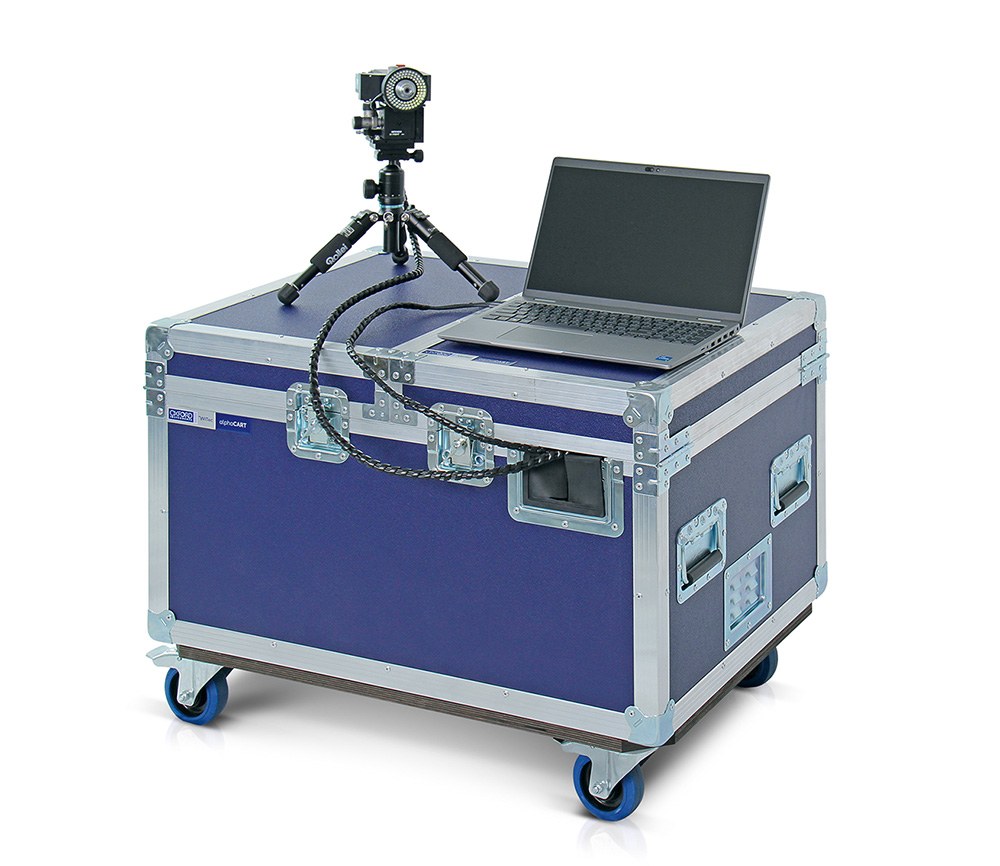

The stand-alone system fits in an optional rolling flight case (about 100 x 60 x 60 cm) for field work, and the probe can also be connected to a stationary witec360 microscope.
Specifications
Technical specifications
7 parameters
Spectral
- Spectral range
- ca. 90 to 3500 cm-1 (depends on excitation wavelength)
Laser
- Wavelengths available
- 532, 633 or 785 nm (others on request)
- Laser power outputs
- 30 to >200 mW
Detection
- Camera
- Thermoelectrically cooled scientific-grade spectroscopic CCD
Optical
- Coupling
- Laser, probe and spectrometer connected by optical fibres
Transport
- Rolling flight case (optional)
- ca. 100 x 60 x 60 cm
Control
- Computer
- Laptop with Microsoft Windows 11 included
Features
Key features
- 01
Freely positionable probe
Fibre-coupled Raman probe for bulky, precious or immovable objects.
- 02
Measurement through glass
High confocality enables analysis through protective glass and windows.
- 03
Sample survey
Optional white-light illumination and colour video camera.
- 04
Laser options
532, 633 or 785 nm with 30 to >200 mW output.
- 05
Portable
Optional rolling flight case containing all components.
- 06
witec360 compatible
Works with witec360 upgrades and accessories, and with its Software Suite.
