Reference: cryoRaman

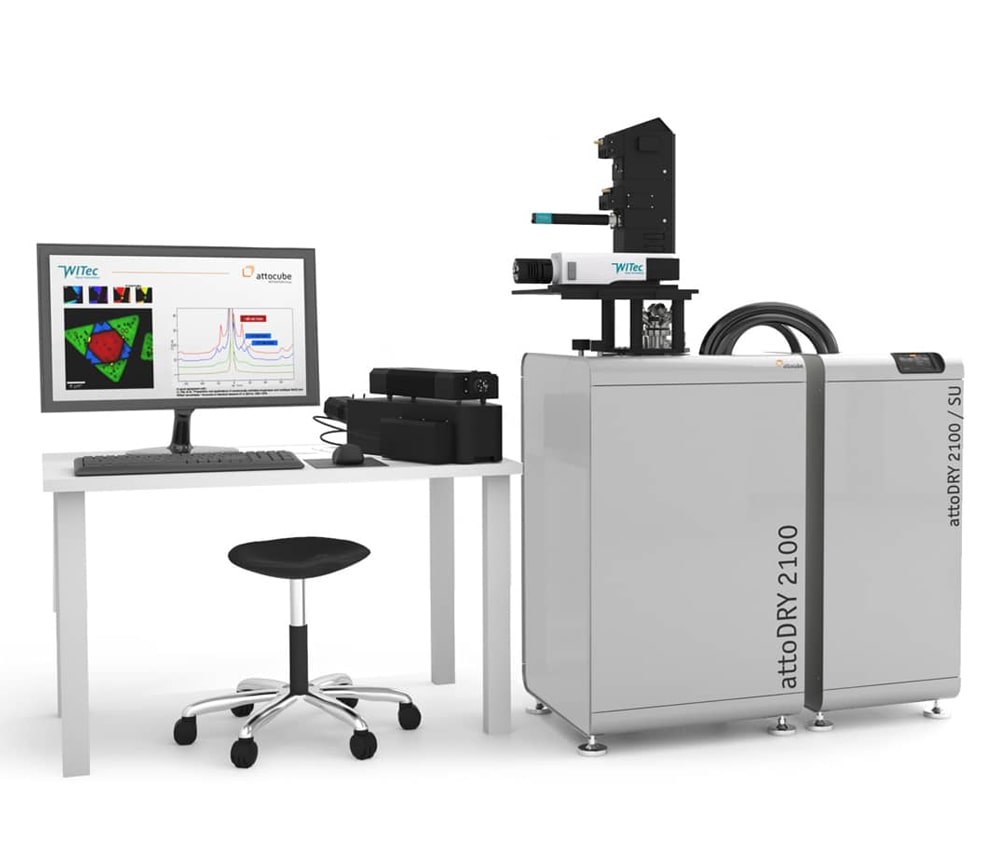

cryoRaman Cryogenic Raman Imaging Microscope
Raman imaging microscope for low-temperature research from 1.8 K to 300 K, combining the witec360 platform with attoDRY cryostats, nanopositioners and up to 12 T magnets.
Key specifications
- Operating temperature range
- 1.8 to 300 K
- Cryostat
- Low-vibration closed-cycle attoDRY series
- Magnetic field
- Solenoid magnets up to 12 T, or vector magnets
- Nanopositioner
- attocube AN series
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
cryoRaman Cryogenic Raman Imaging Microscope
Request a quoteOverview
Product overview
cryoRaman brings confocal Raman imaging to very low temperature experiments, aimed at researchers studying materials whose properties emerge near absolute zero. It combines the performance and modularity of the witec360 with advanced cryostat and nanopositioner technology.
Operating temperatures run from 1.8 K to 300 K using low-vibration closed-cycle attoDRY cryostats, with an attocube nanopositioner and cryogenically compatible Raman-specific objectives. Solenoid magnets up to 12 T or vector magnets are available, along with full polarisation control and TCSPC modes.
Standard features include software-controlled laser power, automated switching from optical microscopy to spectroscopic imaging and automated spectrometer calibration. The system won a 2022 R&D 100 Award in the Analytical/Test category.
Specifications
Technical specifications
7 parameters
Cryogenics
- Operating temperature range
- 1.8 to 300 K
- Cryostat
- Low-vibration closed-cycle attoDRY series
Magnet
- Magnetic field
- Solenoid magnets up to 12 T, or vector magnets
Positioning
- Nanopositioner
- attocube AN series
Optics
- Objectives
- attocube cryogenic Raman-specific objectives
Excitation
- Wavelengths
- Visible to NIR with optimised spectrometers
Polarisation
- Control
- Full polarisation control in excitation and detection
Features
Key features
- 01
Wide temperature range
1.8 K to 300 K operation.
- 02
Magnetic fields
Solenoid magnets up to 12 T or vector magnets.
- 03
Low-vibration cryostat
Closed-cycle attoDRY series cryostats.
- 04
Cryogenic optics
attocube nanopositioner and cryogenic Raman objectives.
- 05
Polarisation and TCSPC
Full polarisation control and time-correlated single photon counting modes.
- 06
Automation
Software-controlled laser power and automated spectrometer calibration.
