Reference: MFP-3D Origin

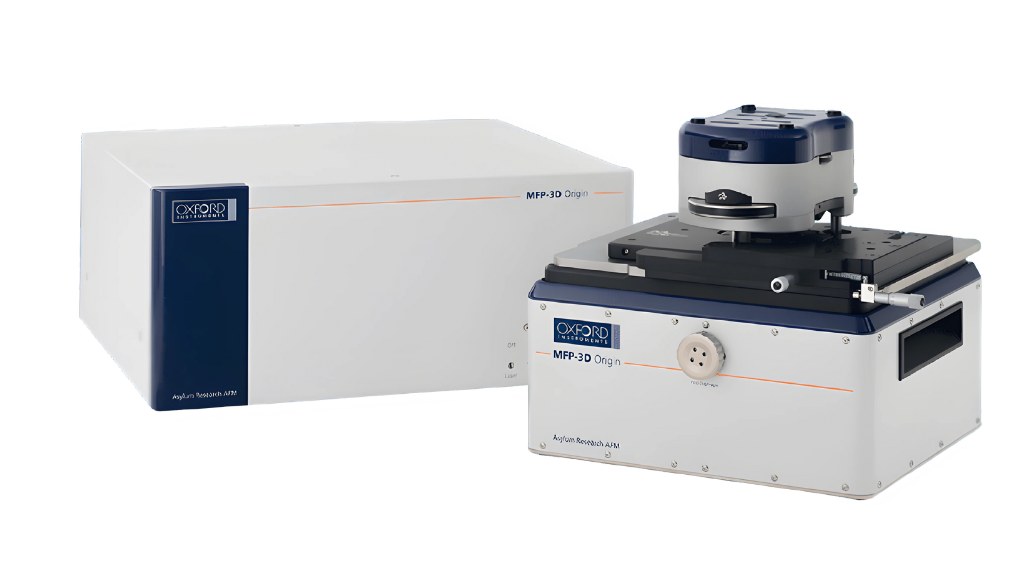

MFP-3D Origin Atomic Force Microscope
Research-grade AFM at an accessible price point with a flexured, sensored scanner covering atomic resolution to 120 µm scans, in air and fluid.
Key specifications
- XY scan range
- 120 µm
- Z range
- 15 µm standard, 40 µm optional
- Sample heating (accessory)
- Up to 275 °C
- Upgrade path
- MFP-3D Origin+ or MFP-3D Infinity
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
MFP-3D Origin Atomic Force Microscope
Request a quoteOverview
Product overview
MFP-3D Origin is a research-grade AFM designed to deliver high performance at a low price point. A single scanner scales from atomic resolution to 120 µm XY scans, with 15 µm Z range (40 µm optional), and works in both air and fluid.
Its flexured and sensored scanner design improves accuracy and ease of use, and automated features such as SmartStart, ModeMaster, GetReal and GetStarted make setup quick. Included modes cover contact, tapping, phase, force curves, KPFM, EFM, MFM and PFM, with optional modes including AM-FM viscoelastic mapping, conductive AFM, SThM and STM.
Temperature control for heating samples to 275 °C and controlled gas or liquid options are available, and the system can be upgraded to the MFP-3D Origin+ or MFP-3D Infinity.
Specifications
Technical specifications
5 parameters
Range
- XY scan range
- 120 µm
- Z range
- 15 µm standard, 40 µm optional
Temperature
- Sample heating (accessory)
- Up to 275 °C
Upgrade
- Upgrade path
- MFP-3D Origin+ or MFP-3D Infinity
Warranty
- Standard warranty
- One year comprehensive
Features
Key features
- 01
Large scan range
120 µm XY range and 15 µm Z (40 µm optional).
- 02
Low-noise forces
Accurate, lowest-noise force measurements.
- 03
Automated setup
SmartStart, ModeMaster, GetReal and GetStarted.
- 04
Modes beyond topography
Nanomechanical, nanoelectrical and electromechanical modes.
- 05
Heating
Sample heating up to 275 °C.
- 06
Upgradeable
Easy upgrade to MFP-3D Origin+ or Infinity.
