Reference: Vero ES

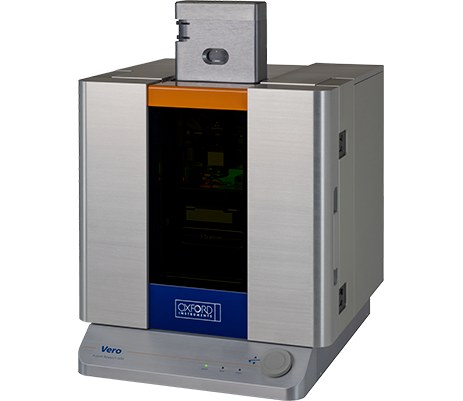

Vero ES Environmental Atomic Force Microscope
Environmental AFM combining QPDI detection with a fully sealed sample cell for gas and liquid perfusion, heating and cooling from 0 to 250 °C, and fast scanning.
Key specifications
- Scan speed
- 10-100x faster than typical AFMs
- Detection technology
- Quadrature Phase Differential Interferometry (QPDI)
- Sample temperature control range
- 0 to 250 °C (heating to 250 °C, or heating and cooling 0 to 120 °C)
- Gas and liquid
- Perfusion through a sealed cell
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Vero ES Environmental Atomic Force Microscope
Request a quoteOverview
Product overview
Vero ES builds on the Cypher ES and adds QPDI, which measures true tip displacement and lowers cantilever detection noise by up to 10x or more on many cantilevers. It is designed for stable, high-resolution imaging with a noise floor stated as half that of any other AFM and scanning 10 to 100 times faster than typical AFMs.
Fully sealed sample cells enable gas and liquid perfusion with no leak risk and are compatible with fast scanning and all environmental accessories. Temperature control covers 0 to 250 °C in two options (heating to 250 °C, or heating and cooling from 0 to 120 °C), and sample cells keep only fused silica and the PEEK or stainless steel probe clip in contact with liquid for compatibility with harsh chemicals. An optional glovebox configuration supports oxygen- or water-sensitive materials.
It can be upgraded to the Vero VRS1250 for video-rate imaging.
Specifications
Technical specifications
5 parameters
- Scan speed
- 10-100x faster than typical AFMs
- Detection technology
- Quadrature Phase Differential Interferometry (QPDI)
- Sample temperature control range
- 0 to 250 °C (heating to 250 °C, or heating and cooling 0 to 120 °C)
- Gas and liquid
- Perfusion through a sealed cell
- Upgrade path
- Vero VRS1250
Features
Key features
- 01
Sealed sample cell
Gas and liquid perfusion with no leak risk.
- 02
Temperature control
Heating to 250 °C or heating and cooling from 0 to 120 °C.
- 03
Chemical compatibility
Only fused silica and the probe clip contact the liquid.
- 04
QPDI detection
True tip displacement and lower cantilever detection noise.
- 05
Glovebox option
Configuration for oxygen- or water-sensitive materials.
- 06
Upgrade path
Upgradeable to Vero VRS1250.
