Reference: Artemis 6000

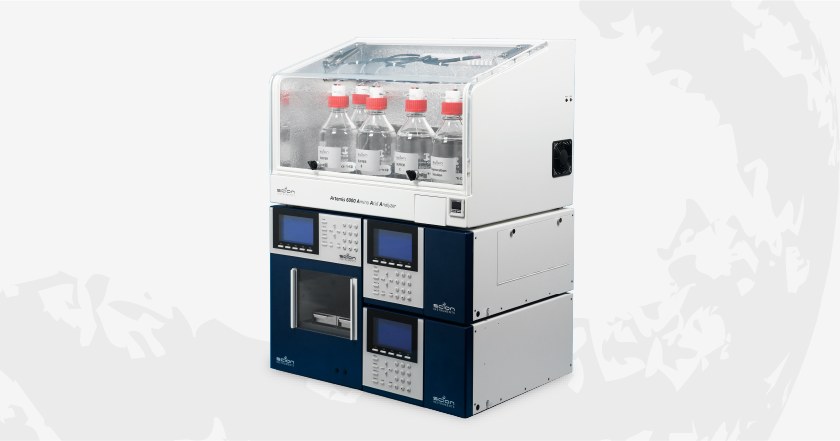

SCION Artemis 6000 Amino Acid Analyzer
Turn-key amino acid analyzer from SCION Instruments with pre-tuned inject-and-run methods, 8 pMol detection limit and 21 CFR Part 11 compliant data system.
Key specifications
- Detection limit
- As low as 8 pMol (Asp 3 pMol)
- Peak resolution (hydrolysate amino acids)
- Average > 1.5; all peaks > 1.2
- Peak resolution (free amino acids)
- All peaks > 1.0
- Run time, hydrolysate sample
- 30 to 50 min
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SCION Artemis 6000 Amino Acid Analyzer
Request a quoteOverview
Product overview
The Artemis 6000 is a configured, turn-key amino acid analysis package based on SCION's liquid chromatography experience. Pre-tuned conditions allow an inject-and-run approach for applications such as protein hydrolysate and physiological fluids.
SCION quotes a detection limit as low as 8 pMol (Asp 3 pMol), average peak resolution above 1.5 and run times of 30 to 50 minutes for hydrolysate samples or 70 to 180 minutes for physiological samples. Analysis is fully automated with protections such as auto washing and leakage protection, and the modular design eases maintenance. Pipes in contact with buffers and samples use inert, non-metal materials, and buffers are kept under inert gas in a refrigerated organiser.
Protein Hydrolysate (PH) and Physiological Fluid (PF) systems are available as complete packages with buffers, reagents, columns and verified methods, used in pharmaceutical, food and agricultural testing.
Specifications
Technical specifications
6 parameters
Sensitivity
- Detection limit
- As low as 8 pMol (Asp 3 pMol)
Separation
- Peak resolution (hydrolysate amino acids)
- Average > 1.5; all peaks > 1.2
- Peak resolution (free amino acids)
- All peaks > 1.0
Throughput
- Run time, hydrolysate sample
- 30 to 50 min
- Run time, physiological sample
- 70 to 180 min
Software
- Data system
- 21 CFR Part 11 compliant, multi-language support
Features
Key features
- 01
Turn-key inject-and-run
Configured packages with pre-tuned recommended conditions.
- 02
High sensitivity and resolution
Detection limit down to 8 pMol with average peak resolution above 1.5.
- 03
Automated protection
Auto washing and leakage protection during fully automated analysis.
- 04
Inert flow path
Non-metal materials in contact with buffers and samples avoid interference.
- 05
PH and PF systems
Protein Hydrolysate and Physiological Fluid versions with buffers, reagents, columns and methods.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
