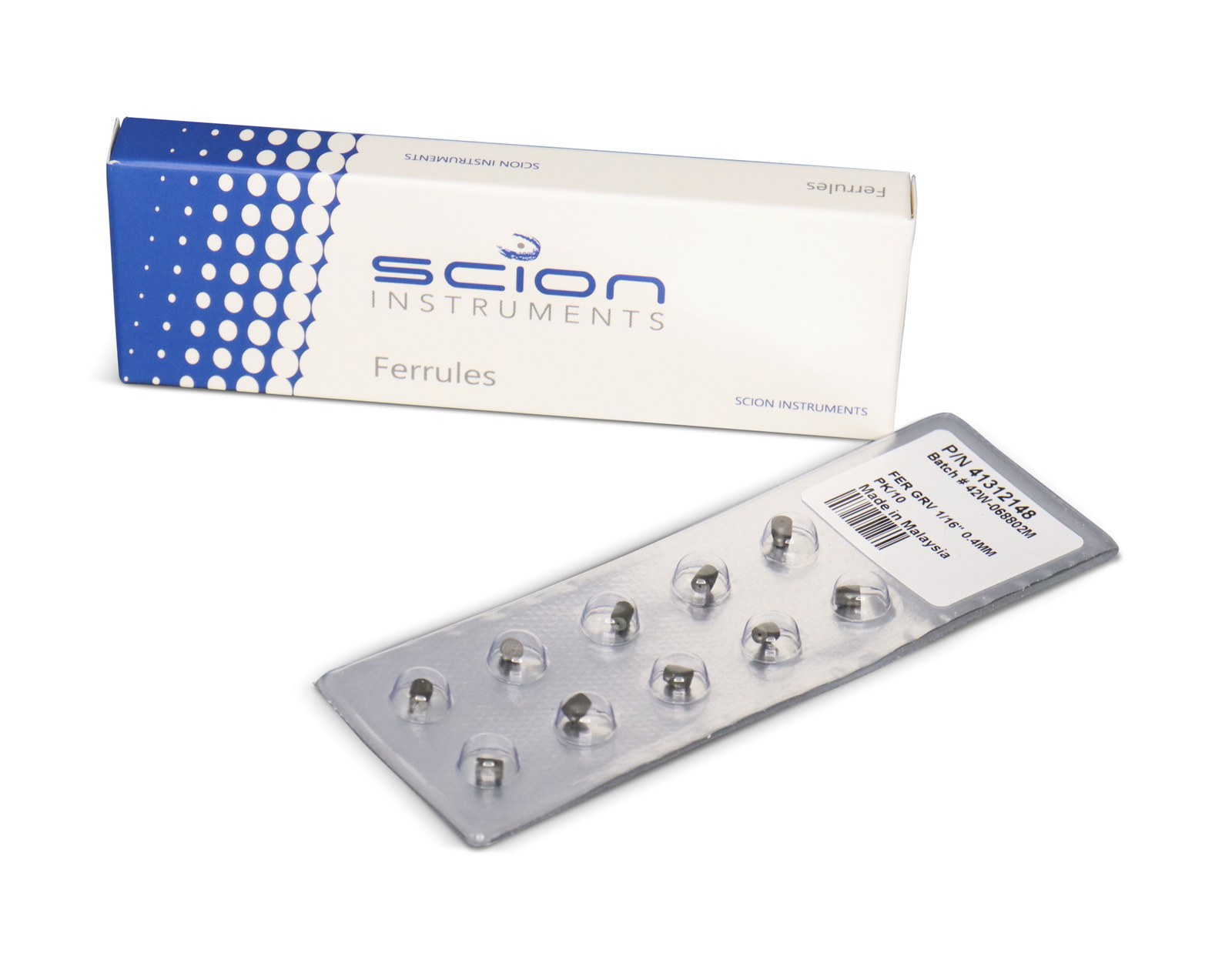

SCION GC Ferrules (Graphite and Graphite/Vespel)
Reusable 100% graphite ferrules and single-use 15% graphite / 85% Vespel ferrules, suitable for MS connections, in multiple hole sizes sold in packs of 10.
Key specifications
- Graphite Ferrule with 0.5 mm Hole for 1/16 in Fittings, pk/10
- 41312141
- Graphite Ferrule with 0.8 mm Hole for 1/16 in Fittings, pk/10
- 41312143
- Graphite Sealing Ferrule for 1078/1079 Injectors, pk/10
- 41312146
- 15% Graphite / 85% Vespel Ferrule 0.4 mm Hole, pk/10
- 41312148
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SCION GC Ferrules (Graphite and Graphite/Vespel)
Request a quoteOverview
Product overview
SCION ferrules seal the column connection to the injector or detector. The 100% graphite type is soft, reusable and suited to high temperatures, but is not suitable for connection to a mass spectrometer.
For MS applications the 15% graphite / 85% Vespel ferrule is single use and does not crumble. Hole size should match the column: 0.4 mm for 0.1 and 0.25 mm ID, 0.5 mm for 0.32 mm ID and 0.8 mm for 0.53 mm ID columns. Two-hole ferrules allow one injection to feed two detectors.
Variants are listed for 1/16, 1/8 and 1/4 inch fittings, packed columns and 1078/1079 injectors, all in packs of 10.
Specifications
Technical specifications
8 parameters
Graphite
- Graphite Ferrule with 0.5 mm Hole for 1/16 in Fittings, pk/10
- 41312141
- Graphite Ferrule with 0.8 mm Hole for 1/16 in Fittings, pk/10
- 41312143
- Graphite Sealing Ferrule for 1078/1079 Injectors, pk/10
- 41312146
Graphite/Vespel
- 15% Graphite / 85% Vespel Ferrule 0.4 mm Hole, pk/10
- 41312148
- 15% Graphite / 85% Vespel Ferrule 0.5 mm Hole, pk/10
- 41312149
- 15% Graphite / 85% Vespel Ferrule 0.8 mm Hole, pk/10
- 41312150
- 15% Graphite / 85% Vespel Ferrule 2 x 0.4 mm Holes, pk/10
- 41312154
- 15% Graphite / 85% Vespel Ferrule 2 x 0.5 mm Holes, pk/10
- 41312155
Features
Key features
- 01
100% graphite ferrules
Soft, reusable, high-temperature; not for MS connection.
- 02
15% graphite / 85% Vespel
Single use, does not crumble, suitable for MS connection.
- 03
Hole sizes for each column ID
0.4 mm for 0.1/0.25 mm ID, 0.5 mm for 0.32 mm ID, 0.8 mm for 0.53 mm ID.
- 04
Two-hole ferrules
Allow one injection to two detectors.
