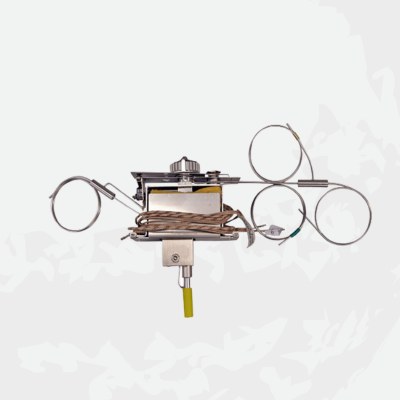

SCION GC Injector Parts
Spares and parts for SCION GC injectors: split/splitless, PTV, cold on-column, flash and packed/wide-bore inlets.
Key specifications
- Maximum programmable temperature
- 450 °C
- Large volume injection
- Up to 250 uL
- Maximum programmable temperature
- 450 °C
- Maximum liner ID
- 4 mm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SCION GC Injector Parts
Request a quoteOverview
Product overview
This page describes the injector types used on SCION gas chromatographs and points to the spare-parts documents for each. The split/splitless injector is isothermal with septum purge, accepts liners up to 4 mm ID and has a dual split vent design.
The programmable temperature vaporizer (PTV) is a universal inlet (split, splitless, COC, PTV) programmable up to 450 degC, suited to thermolabile compounds and complex matrices, and supports large volume injection up to 250 uL with CO2, liquid nitrogen or air cooling. The cold on-column injector also programs to 450 degC with glass inserts that guide column and needle.
Flash and packed/wide-bore injectors are isothermal inlets for direct injection onto wide-bore or packed columns. Electronic flow control types EFC 21, 23, 24 and 25 are specified depending on the injector.
Specifications
Technical specifications
5 parameters
PTV
- Maximum programmable temperature
- 450 °C
- Large volume injection
- Up to 250 uL
Cold on-column
- Maximum programmable temperature
- 450 °C
Split/splitless
- Maximum liner ID
- 4 mm
Flow control
- EFC types
- EFC 21, 23, 24 and 25 depending on injector
Features
Key features
- 01
Split/Splitless injector
Isothermal, septum purge, liners to 4 mm ID, dual split vent.
- 02
PTV injector
Programmable to 450 degC, large volume injection up to 250 uL.
- 03
Cold on-column injector
Programmable to 450 degC with glass inserts guiding column and needle.
- 04
Flash and packed/wide-bore injectors
Isothermal inlets for direct injection onto wide-bore or packed columns.
