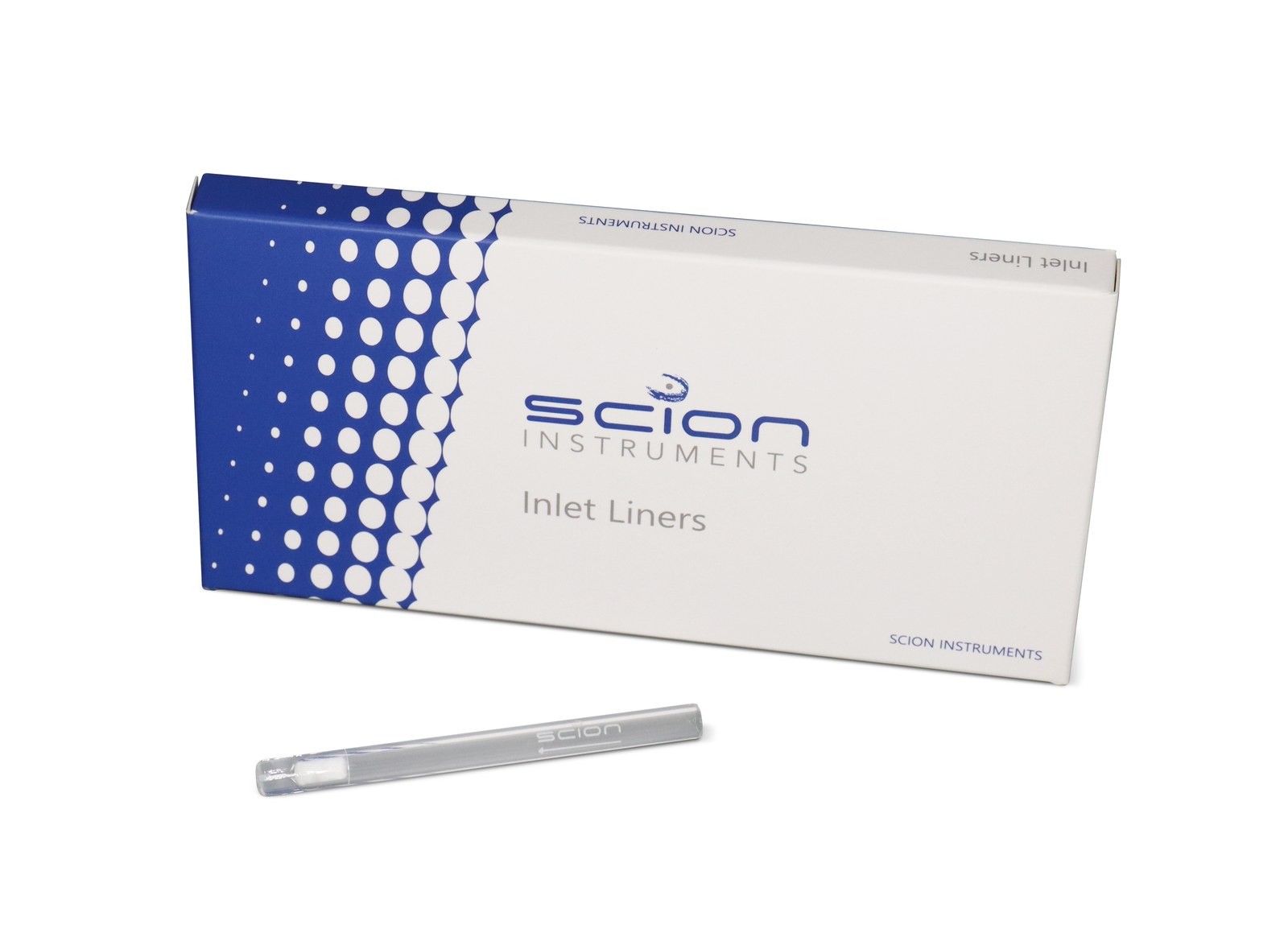

SCION GC Inlet Liners
Deactivated glass and quartz-wool inlet liners for SCION 1177 S/SL, PTV and on-column injectors, plus ultra-inert versions and injector O-rings.
Key specifications
- LINER 1177 78.5 L x 6.3 OD x 4 MM ID S/SL STRAIGHT QWOOL, pk/5
- 41312100
- LINER 1177 78.5 L x 6.3 OD x 4 MM ID S/SL FOCUS, pk/5
- 41312101
- LINER 1177 78.5 L x 6.3 OD x 1.2 MM ID S/SL STRAIGHT (Split, SPME), pk/5
- 41312108
- LINER 1177 4 MM ID S/SL STRAIGHT QWOOL ULTRA INERT, pk/5
- 41312114
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SCION GC Inlet Liners
Request a quoteOverview
Product overview
SCION qualified GC liners protect the column from the injection system and help the sample vaporize and transfer reproducibly. They use high-quality glass or quartz wool, are deactivation-treated to minimise activity and come in geometries tuned for specific applications.
The range covers the 1177 split/splitless injector in 1.2 to 4 mm ID versions (straight, focus, taper, double taper, gooseneck, with or without quartz wool), advanced ultra-inert liners that limit breakdown of active compounds, and liners for PTV (1078/1079) and on-column (1093/SPI) injectors, including SPME types.
Viton or graphite O-ring injector seals are listed too; graphite permits inlet temperatures up to 450 degC.
Specifications
Technical specifications
11 parameters
1177 S/SL
- LINER 1177 78.5 L x 6.3 OD x 4 MM ID S/SL STRAIGHT QWOOL, pk/5
- 41312100
- LINER 1177 78.5 L x 6.3 OD x 4 MM ID S/SL FOCUS, pk/5
- 41312101
- LINER 1177 78.5 L x 6.3 OD x 1.2 MM ID S/SL STRAIGHT (Split, SPME), pk/5
- 41312108
1177 Ultra inert
- LINER 1177 4 MM ID S/SL STRAIGHT QWOOL ULTRA INERT, pk/5
- 41312114
- LINER 1177 0.75 MM ID SPME STRAIGHT, pk/5
- 41312113
O-rings
- INJECTOR SEAL O-RING 1177 6.5 MM ID VITON, pk/10
- 41312118
- INJECTOR SEAL O-RING 1177 6.5 MM ID GRAPHITE, pk/10
- 41312119
- Maximum inlet temperature with graphite O-ring
- 450 °C
On-column
- LINER 1093/SPI 54 L x 4.6 OD x 0.8 MM ID COC CONNECTITE R 0.50, pk/5
- 41312122
PTV
- LINER 1078/1079 54 L x 5 OD x 0.5 MM ID S/SL STRAIGHT, pk/5
- 41312123
- LINER 1078/1079 54 L x 5 OD x 3.4 MM ID S/SL DOUBLE TAPER FOCUS, pk/5
- 41312124
Features
Key features
- 01
1177 S/SL liners
1.2 to 4 mm ID in straight, focus, taper, double taper and gooseneck geometries.
- 02
Ultra-inert liners
Prevent breakdown of active compounds for better peak symmetry in hot injections.
- 03
PTV and on-column liners
For 1078/1079 PTV and 1093/SPI injectors.
- 04
Injector O-rings
Viton or graphite; graphite allows inlets up to 450 degC.
