SCION GC Septa (BTO, Marathon and Advanced Green)
Three SCION septum families for GC injectors: ultra-low-bleed BTO for MS, long-life Marathon and Advanced Green, in 9, 9.5 and 11.5 mm sizes.
Key specifications

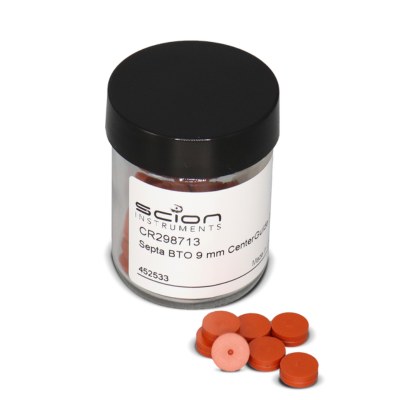

- BTO Septa with CenterGuide, 9 mm, pk/50
- CR298713
- BTO Septa 3/8 in (9.5 mm), pk/50
- CR298705
- BTO Septa with CenterGuide, 11.5 mm, pk/50
- CR298777
- Maximum operating temperature
- 400 °C
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SCION GC Septa (BTO, Marathon and Advanced Green)
Request a quoteOverview
Product overview

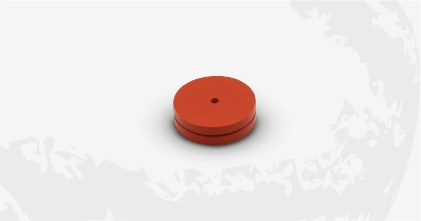

SCION supplies several septum types for GC injection ports. BTO (bleed and temperature optimized) septa are the choice for mass spectrometry, with ultra-low bleed, a 400 degC maximum operating temperature and an optional CenterGuide for easy penetration and less septum damage.
Marathon septa are a softer, very low-bleed material gentle on autosampler needles, quoted at up to 400 injections without failure and 350 degC maximum. Advanced Green septa offer a longer lifetime, reduced injection port sticking and low bleed, also with 350 degC maximum.
Sizes of 9, 9.5 and 11.5 mm are listed, in packs of 25 or 50, each with its own part number.
Specifications
Technical specifications
11 parameters
BTO
- BTO Septa with CenterGuide, 9 mm, pk/50
- CR298713
- BTO Septa 3/8 in (9.5 mm), pk/50
- CR298705
- BTO Septa with CenterGuide, 11.5 mm, pk/50
- CR298777
- Maximum operating temperature
- 400 °C
Marathon
- Marathon Septa with CenterGuide, 9 mm, pk/25
- CR239778
- Marathon Septa with CenterGuide, 11.5 mm, pk/25
- CR239787
- Maximum operating temperature
- 350 °C
Advanced Green
- Advanced Green Septa with CenterGuide, 9 mm, pk/50
- CR246713
- Advanced Green Septa 3/8 in (9.5 mm), pk/50
- CR246124
- Advanced Green Septa with CenterGuide, 11.5 mm, pk/50
- CR246725
- Maximum operating temperature
- 350 °C
Features
Key features
- 01
BTO septa
Ultra-low bleed, up to 400 degC, for MS use; CenterGuide versions.
- 02
Marathon septa
Softer material, up to 400 injections, 350 degC maximum.
- 03
Advanced Green septa
Longer lifetime, reduced sticking, low bleed, 350 degC maximum.
