Reference: 6410/6430/6440

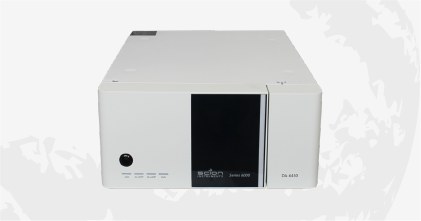

SCION LC6000 6410/6430/6440 Detector Spares and Consumables
Lamps, flow cells and tubing for the SCION 6410 UV, 6430 diode array and 6440 fluorescence HPLC detectors.
Key specifications
- D2 Lamp for UV Detector
- LC20210166
- Flow Cell
- LC20210187
- PTFE Tubing 1/8th, 3M
- LC20210282
- PEEK Tubing, Red Stripe, 1/16th 0.005ID, 10M
- LC21000001
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SCION LC6000 6410/6430/6440 Detector Spares and Consumables
Request a quoteOverview
Product overview
This page lists spares for three SCION LC 6000 detectors: the 6410 ultraviolet detector, the 6430 diode array detector and the 6440 fluorescence detector, each with its part number.
Examples are the D2 lamp and flow cell for the 6410, thermo and standard flow cells, thermo cell control unit, halogen, D2 and Hg lamps for the 6430, and 150 W xenon lamps (standard and extended life), Hg lamp and 12 uL flow cell for the 6440, along with PEEK and PTFE tubing.
Specifications
Technical specifications
20 parameters
6410 Ultra-Violet (UV) Detector
- D2 Lamp for UV Detector
- LC20210166
- Flow Cell
- LC20210187
- PTFE Tubing 1/8th, 3M
- LC20210282
- PEEK Tubing, Red Stripe, 1/16th 0.005ID, 10M
- LC21000001
- Clean Cut Tubing Cutter
- LC21000005
6430 Diode Array Detector
- Thermo Cell for 6430 DAD
- LC20200033
- Standard Flow Cell for 6430 DAD (no thermo)
- LC20200036
- Thermo Cell Control Unit
- LC20200037
- Halogen Lamp (20W)
- LC20210094
- D2 Lamp (See-Through) for DAD detector
- LC20210125
- Hg Lamp
- LC20210108
- PEEK Tubing, Red Stripe, 1/16th 0.005ID, 10M
- LC21000001
- Clean Cut Tubing Cutter
- LC21000005
6440 Fluorescence Detector
- Xenon Lamp 150W
- LC20210147
- Xenon Lamp 150W, Extended Life
- LC20210148
- Hg Lamp
- LC20210149
- Flow Cell (12µL)
- LC20210150
- PTFE Tubing 1/8th, 3M
- LC20210282
- PEEK Tubing, Red Stripe, 1/16th 0.005ID, 10M
- LC21000001
- Clean Cut Tubing Cutter
- LC21000005
Features
Key features
- 01
6410 UV detector parts
D2 lamp, flow cell and tubing.
- 02
6430 diode array parts
Thermo and standard flow cells, halogen, D2 and Hg lamps.
- 03
6440 fluorescence parts
150 W xenon lamps (standard and extended life), Hg lamp and 12 uL flow cell.
