Reference: 1-14

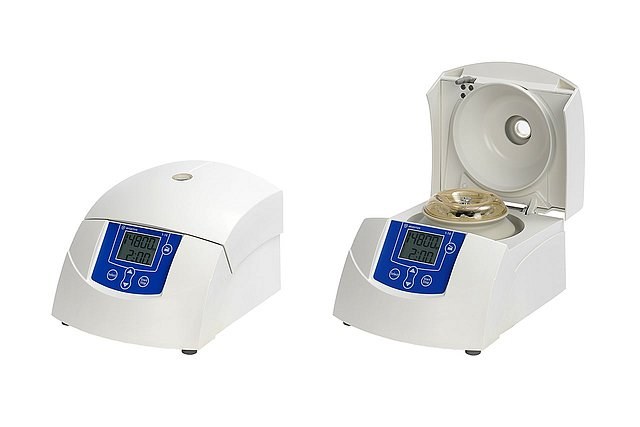

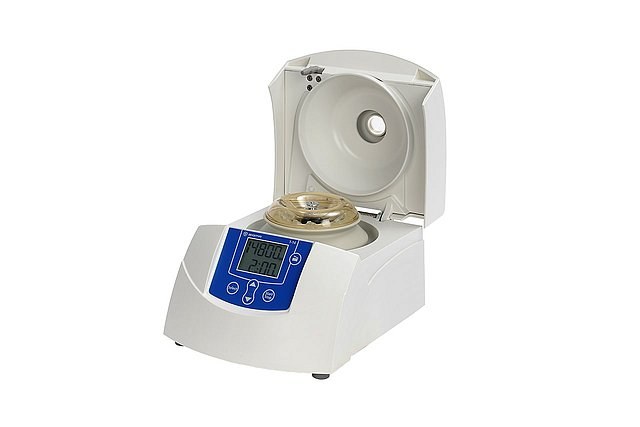

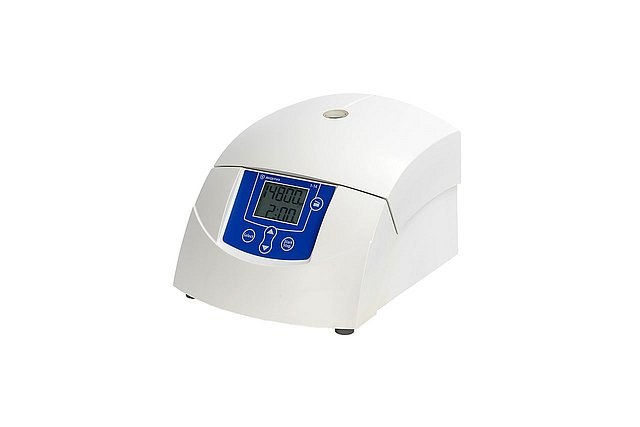

Sigma 1-14 Microcentrifuge
Compact unrefrigerated microcentrifuge for up to 24 x 2 ml tubes, reaching 16,163 x g at 14,800 rpm, with a motorised lid lock and a wide choice of rotors.
Key specifications
- Max. capacity, fixed-angle rotor
- 24 x 2 ml
- Max. RCF
- 16,163 x g
- Max. speed
- 14,800 rpm
- Min. speed
- 200 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 1-14 Microcentrifuge
Request a quoteOverview
Product overview
The Sigma 1-14 is a compact benchtop microcentrifuge built to fit into any laboratory while still meeting demanding technical requirements. Two fixed-angle rotors hold up to 24 x 1.5/2.0 ml tubes, and further rotors cover PCR strips, microhaematocrit capillary tubes and filter tubes.
It is used for DNA, RNA and protein isolation, clinical chemistry and general work in research labs, food labs, universities and pharmaceutical laboratories. Sigma describes it as quiet even at top speed, with short braking times, simple operation and a motorised lid lock for effortless closing.
A refrigerated version is available as the Sigma 1-14K.
Specifications
Technical specifications
12 parameters
Capacity
- Max. capacity, fixed-angle rotor
- 24 x 2 ml
Performance
- Max. RCF
- 16,163 x g
- Max. speed
- 14,800 rpm
- Min. speed
- 200 rpm
- Max. speed / RCF, fixed-angle rotor
- 14,800 rpm / 16,162 x g
- Noise level at max. speed (fixed-angle rotor 12094)
- ≤ 54 dB(A)
- Max. acceleration time (fixed-angle rotor 12094)
- ≤ 15 s
- Max. braking time (fixed-angle rotor 12094)
- ≤ 12 s
Electrical
- Power consumption
- 95 W
Dimensions & Weight
- Height x Width x Depth
- 176 x 266 x 212 mm
- Height with open lid
- 310 mm
- Weight without rotor
- 6 kg
Features
Key features
- 01
Wide rotor range
Rotors for 1.5/2.0 ml tubes, PCR strips, microhaematocrit capillaries and filter tubes.
- 02
Motorised lid lock
The lid closes effortlessly and locks automatically.
- 03
Low noise
Quiet running even at maximum speed, with a rated level of up to 54 dB(A) for the fixed-angle rotor.
- 04
Short run-up and braking
Acceleration of up to 15 s and braking of up to 12 s with the fixed-angle rotor.
