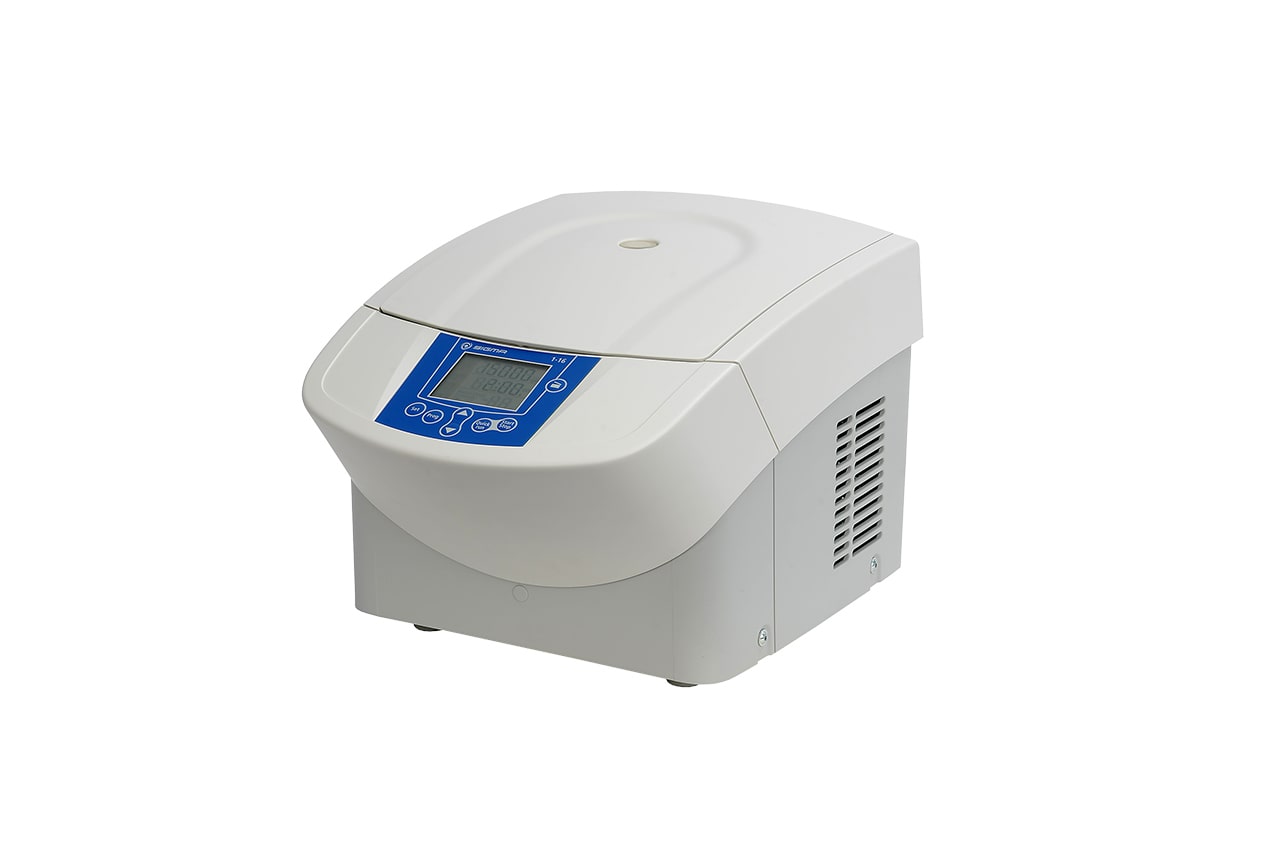

SIGMA 1-16
High-grade microlitre centrifuge: 36 × 2 ml, 15,000 rpm, 20,627 × g, stainless bowl and motorised lid — also as refrigerated 1-16K.
View product
SIGMA 3-16T
Air-cooled 1.6-litre benchtop centrifuge with Spincontrol T touch: 4 × 400 ml, 15,800 rpm, 23,723 × g — Sigma’s new all-rounder family.
Key specifications
- Swing-out
- 4 × 400 ml
- Max. RCF
- 23,723 × g
- Max. speed
- 15,800 rpm
- Interface
- Spincontrol T touchscreen
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
SIGMA 3-16T
Request a quoteOverview
Product overview
The Sigma 3-16T is Sigma Laborzentrifugen’s space-saving air-cooled benchtop centrifuge with up to 4 × 400 ml in a swing-out rotor and 6 × 94 ml in a fixed-angle rotor. Maximum speed is 15,800 rpm and 23,723 × g. The Spincontrol T touchscreen stores programs, exports USB data, and connects to the Sigma Timer app. ECO Mode stands the unit down when idle. Automatic rotor detection, digital imbalance monitoring, and rotor/bucket service-life monitoring are standard. A refrigerated 3-17KT and an IVD version sit on the same line.
Rotors and accessories cover routine tubes through more demanding process steps — biosafe swing-out and fixed-angle rotors, plus clinic and cell culture packages, are options on this line.
Al-Shaker specifies 3-16T versus 3-17KT refrigeration, IVD, and the first rotor set, then installs, trains, and supports the centrifuge across Jordan, the GCC, and MENA.
Specifications
Technical specifications
6 parameters
Capacity
- Swing-out
- 4 × 400 ml
Performance
- Max. RCF
- 23,723 × g
- Max. speed
- 15,800 rpm
Control
- Interface
- Spincontrol T touchscreen
Installation
- Dimensions (H × W × D)
- 337 × 460 × 521 mm
- Weight without rotor
- 50 kg
Features
Key features
- 01
Spincontrol T
Touch programs, USB export, quality-management options, and the Sigma Timer app.
- 02
4 × 400 ml on the bench
1.6-litre swing-out capacity without stepping up to a floor-standing frame.
- 03
Safety in the firmware
Automatic rotor identification, digital imbalance, and service-life monitoring of rotors and buckets.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
Keep exploring
More from SIGMA

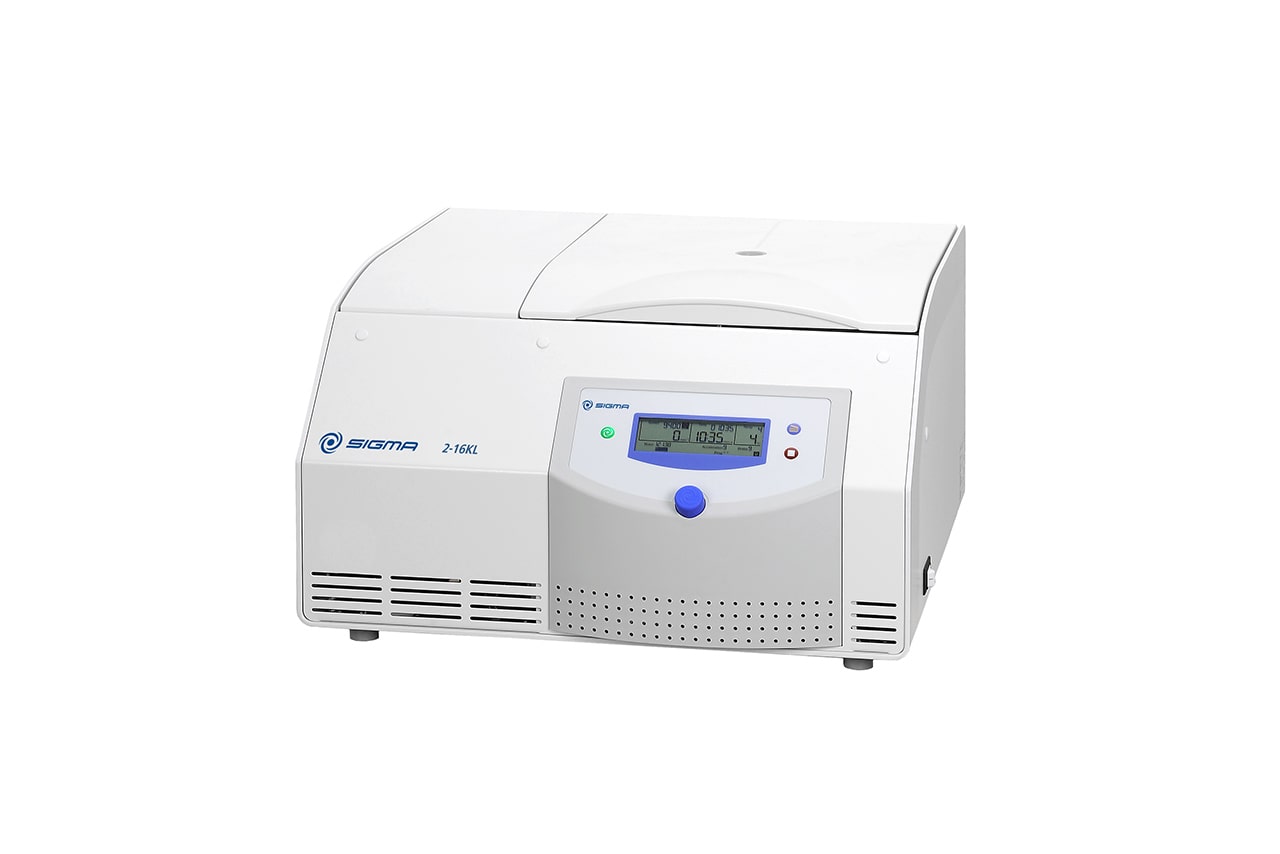

SIGMA 2-16KL
All-purpose refrigerated benchtop: 4 × 100 ml, 15,300 rpm, 21,913 × g, −10 to +40 °C with Rapid Temp — also as heated 2-16KHL.
View product

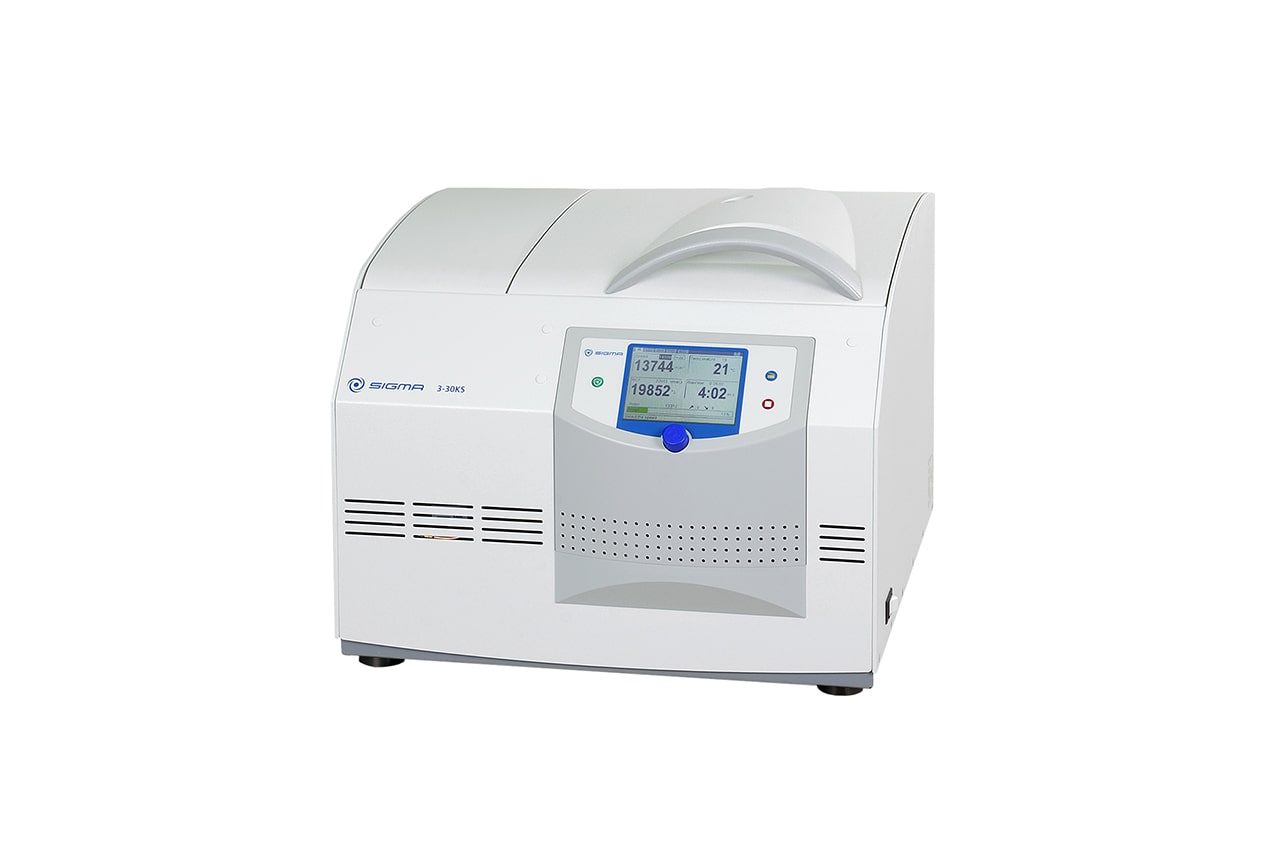

SIGMA 3-30KS
Refrigerated high-speed benchtop between a laboratory centrifuge and an ultracentrifuge: 30,000 rpm, 70,121 × g, −20 to +40 °C.
View product

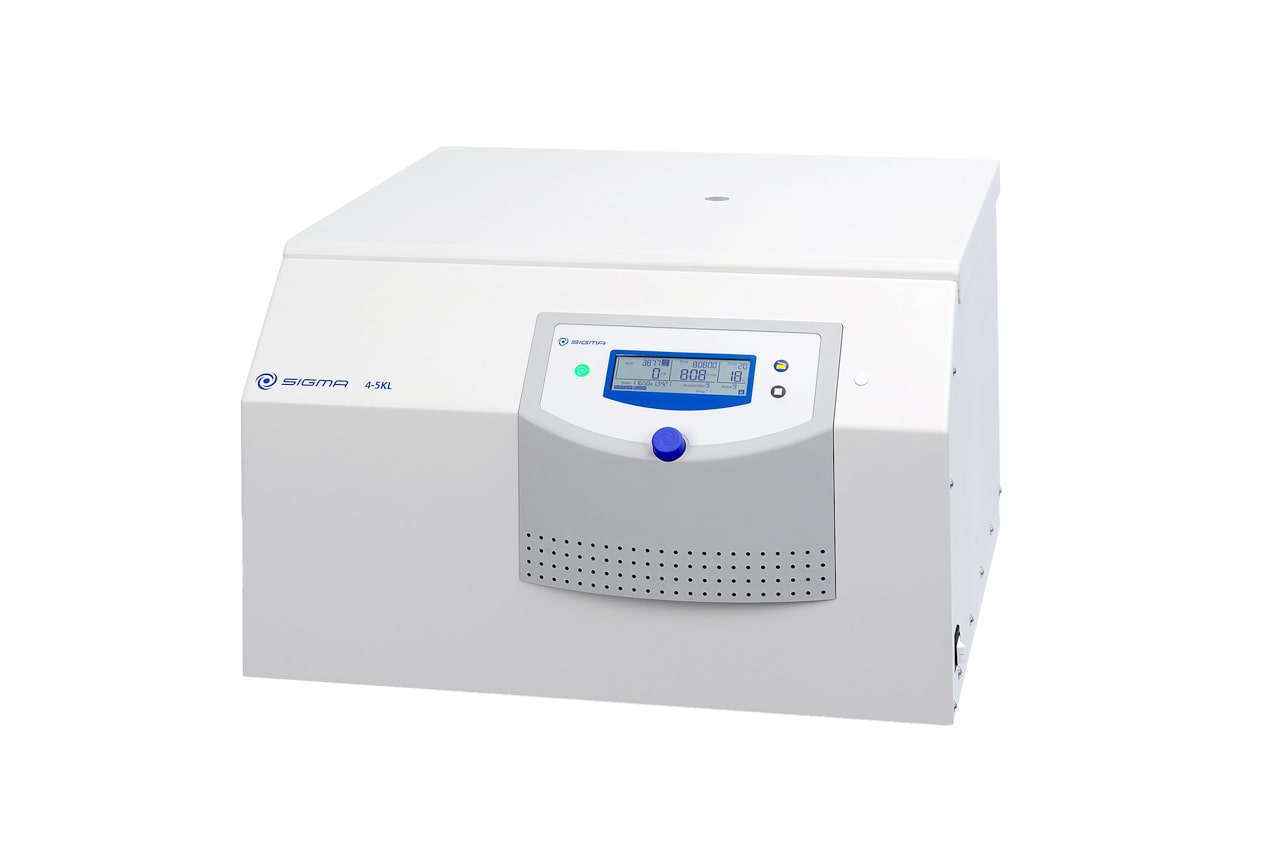

SIGMA 4-5KL
