Reference: 1-14K

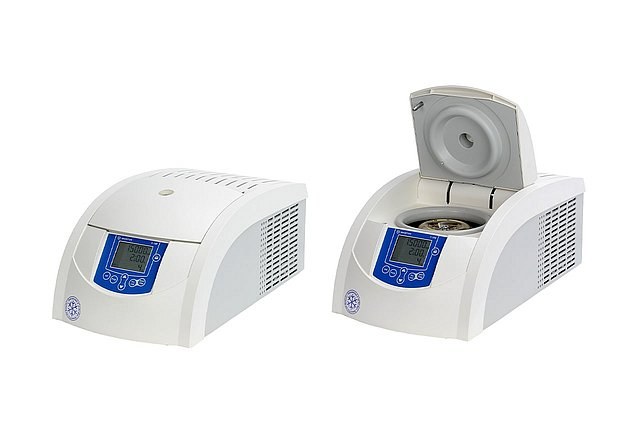

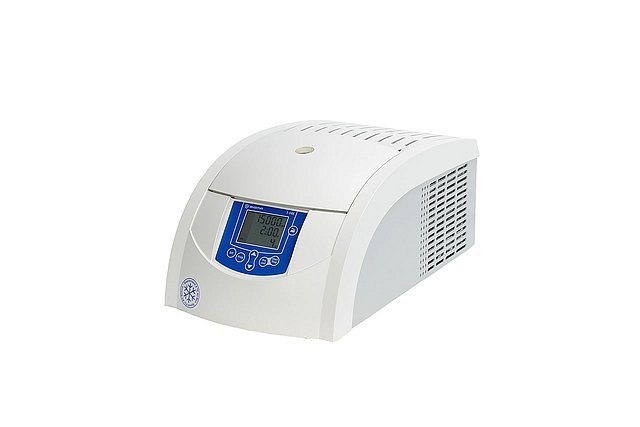

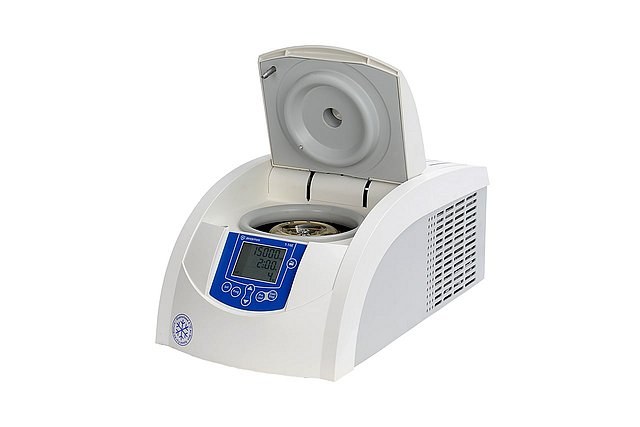

Sigma 1-14K Refrigerated Microcentrifuge
Refrigerated microcentrifuge for up to 24 x 2 ml tubes, 16,602 x g at 15,000 rpm and a chamber range of -10 to +40 °C; Sigma calls it the most compact refrigerated centrifuge on the market.
Key specifications
- Max. capacity, swing-out rotor
- 6 x 2 ml
- Max. capacity, fixed-angle rotor
- 24 x 2 ml
- Max. RCF
- 16,602 x g
- Max. speed
- 15,000 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 1-14K Refrigerated Microcentrifuge
Request a quoteOverview
Product overview
The Sigma 1-14K is the refrigerated counterpart of the Sigma 1-14. Its small footprint fits in every lab, and Sigma states that it easily reaches +4 °C at maximum speed. Two fixed-angle rotors hold up to 24 x 1.5/2.0 ml tubes, and a 6 x 2 ml swing-out rotor is also available.
Rotors for PCR strips, microhaematocrit capillary tubes and filter tubes make it an all-round instrument for DNA, RNA and protein isolation, clinical chemistry, and routine work in research, food, university and pharmaceutical labs.
It runs quietly, brakes quickly and closes via a motorised lid lock.
Specifications
Technical specifications
21 parameters
Capacity
- Max. capacity, swing-out rotor
- 6 x 2 ml
- Max. capacity, fixed-angle rotor
- 24 x 2 ml
Performance
- Max. RCF
- 16,602 x g
- Max. speed
- 15,000 rpm
- Min. speed
- 200 rpm
- Max. speed / RCF, swing-out rotor
- 15,000 rpm / 16,099 x g
- Max. speed / RCF, fixed-angle rotor
- 15,000 rpm / 16,602 x g
- Noise level at max. speed (fixed-angle rotor 12094)
- ≤ 49 dB(A)
- Noise level at max. speed (swing-out rotor 11128 + bucket 13128)
- ≤ 50 dB(A)
- Max. acceleration time (fixed-angle rotor 12094)
- ≤ 16 s
- Max. acceleration time (swing-out rotor 11128 + bucket 13128)
- ≤ 18 s
- Max. braking time (fixed-angle rotor 12094)
- ≤ 18 s
- Max. braking time (swing-out rotor 11128 + bucket 13128)
- ≤ 25 s
Temperature
- Temperature setting range
- -10 to +40 °C
Electrical
- Power consumption
- 230 W
Dimensions & Weight
- Height x Width x Depth
- 236 x 273 x 515 mm
- Height with open lid
- 404 mm
- Weight without rotor
- 19 kg
Refrigeration
- Refrigerant
- R513a
- Refrigerant charge / pressure
- 0.105 / 23 kg / bar
- CO2 equivalent
- 0.066 t
Features
Key features
- 01
Refrigerated chamber
Temperature setting range -10 to +40 °C.
- 02
Compact footprint
236 x 273 x 515 mm and 19 kg without rotor.
- 03
Wide rotor range
Fixed-angle rotors for 24 x 2 ml, a 6 x 2 ml swing-out rotor, PCR-strip, capillary and filter-tube rotors.
- 04
Motorised lid lock
Effortless lid closing.
