Reference: 1-16K

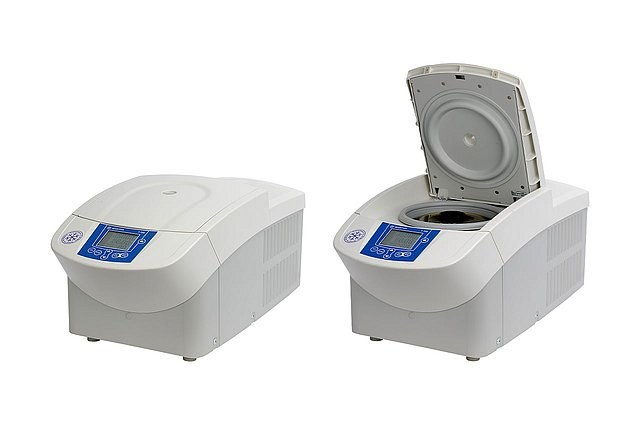

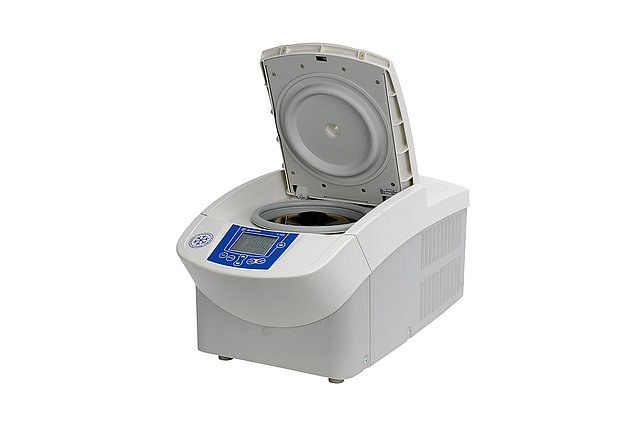

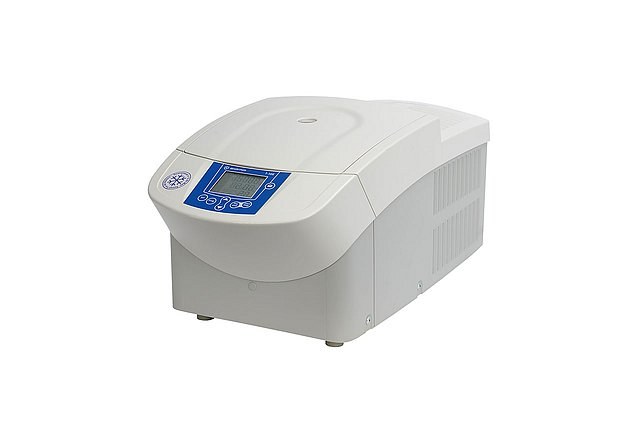

Sigma 1-16K Refrigerated Microcentrifuge
Refrigerated microcentrifuge with RCF above 20,600 x g, a closable 36 x 2 ml biosafe rotor, demand-controlled fan cooling and ten stored programs.
Key specifications
- Max. capacity, fixed-angle rotor
- 36 x 2 ml
- Max. RCF
- 20,627 x g
- Max. speed
- 15,000 rpm
- Min. speed
- 200 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 1-16K Refrigerated Microcentrifuge
Request a quoteOverview
Product overview
The Sigma 1-16K is the refrigerated version of the Sigma 1-16. It combines a space-saving design with a high-grade stainless steel bowl, short acceleration and braking times and a motorised lid lock. RCF reaches 20,627 x g at 15,000 rpm, and Sigma states that +4 °C is reliably maintained at maximum speed.
A fan control adapts fan speed to the required cooling capacity, which Sigma says makes the unit noticeably quieter and cuts power consumption. The rotor range covers PCR strips, filter tubes, 2 ml and 5 ml tubes and microhaematocrit capillaries, including a closable 36 x 2 ml biosafe rotor and a 12 x 5 ml rotor.
Ten standard programs can be stored. An IVD model is also available.
Specifications
Technical specifications
15 parameters
Capacity
- Max. capacity, fixed-angle rotor
- 36 x 2 ml
Performance
- Max. RCF
- 20,627 x g
- Max. speed
- 15,000 rpm
- Min. speed
- 200 rpm
- Max. speed / RCF, fixed-angle rotor
- 15,000 rpm / 20,627 x g
- Noise level at max. speed (fixed-angle rotor 12134)
- ≤ 48 dB(A)
- Max. acceleration time (fixed-angle rotor 12134)
- ≤ 16 s
- Max. braking time (fixed-angle rotor 12134)
- ≤ 16 s
Electrical
- Power consumption
- 420 W
Dimensions & Weight
- Height x Width x Depth
- 291 x 310 x 660 mm
- Height with open lid
- 547 mm
- Weight without rotor
- 34 kg
Refrigeration
- Refrigerant
- R513a
- Refrigerant charge / pressure
- 0.136 / 23 kg / bar
- CO2 equivalent
- 0.086 t
Features
Key features
- 01
Refrigerated operation
Reliably achieves +4 °C at maximum speed.
- 02
Fan control
Fan speed follows cooling demand for lower noise and energy use.
- 03
Biosafe rotor
Closable rotor for 36 x 2 ml tubes.
- 04
Program memory
Ten standard programs can be stored.
- 05
Product options
IVD model, centrifuge package with a 24 x 2 ml rotor, and a 36 x 2 ml biosafe rotor.
