Reference: 1-7

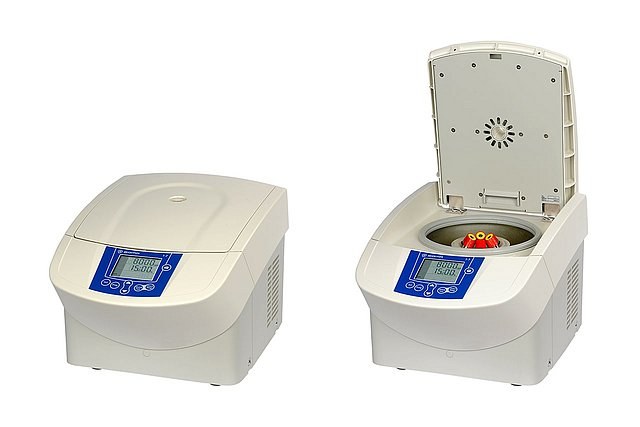

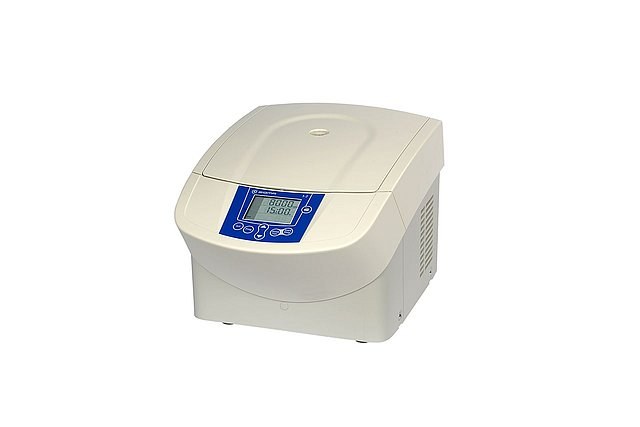

Sigma 1-7 Compact Benchtop Centrifuge
Quiet unrefrigerated small centrifuge for blood and urine specimens, 6 x 15 ml, 8,000 rpm and 6,153 x g, with ten stored programs and a motorised lid lock.
Key specifications
- Max. capacity, fixed-angle rotor
- 6 x 15 ml
- Max. RCF
- 6,153 x g
- Max. speed
- 8,000 rpm
- Min. speed
- 200 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 1-7 Compact Benchtop Centrifuge
Request a quoteOverview
Product overview
The Sigma 1-7 is built for separating blood and urine specimens in medical practices and small laboratories. Thanks to its performance it is also used in environmental analytics, schools and universities.
Sigma says it is the only centrifuge in its segment that supports up to ten saved programs, allowing routine protocols to be stored. It runs with low vibration and low noise, and the motorised lid lock allows effortless closing. Its fixed-angle rotor takes up to 6 x 15 ml and reaches 6,153 x g at 8,000 rpm, with short acceleration and braking times.
A centrifuge and rotor package is offered as an option.
Specifications
Technical specifications
12 parameters
Capacity
- Max. capacity, fixed-angle rotor
- 6 x 15 ml
Performance
- Max. RCF
- 6,153 x g
- Max. speed
- 8,000 rpm
- Min. speed
- 200 rpm
- Max. speed / RCF, fixed-angle rotor
- 8,000 rpm / 6,153 x g
- Noise level at max. speed (fixed-angle rotor 91429)
- ≤ 58 dB(A)
- Max. acceleration time (fixed-angle rotor 91429)
- ≤ 13 s
- Max. braking time (fixed-angle rotor 91429)
- ≤ 11 s
Electrical
- Power consumption
- 55 W
Dimensions & Weight
- Height x Width x Depth
- 271 x 310 x 418 mm
- Height with open lid
- 527 mm
- Weight without rotor
- 13 kg
Features
Key features
- 01
Program memory
Up to ten saved programs, which Sigma says is unique in its segment.
- 02
Quiet running
Low vibration; rated up to 58 dB(A) at maximum speed.
- 03
Fast cycles
Acceleration up to 13 s, braking up to 11 s.
- 04

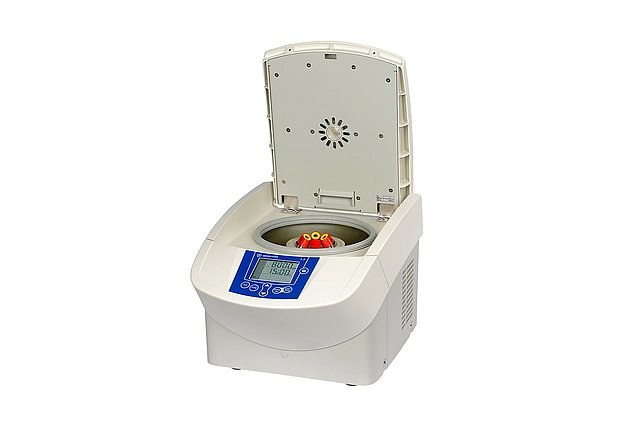

Motorised lid lock
Effortless closing of the lid.
