Reference: 2-7

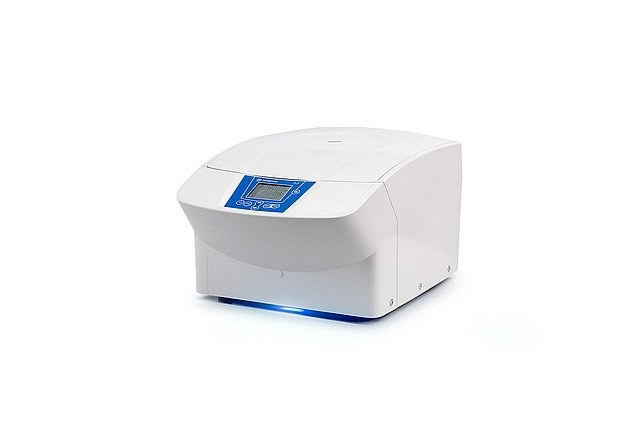

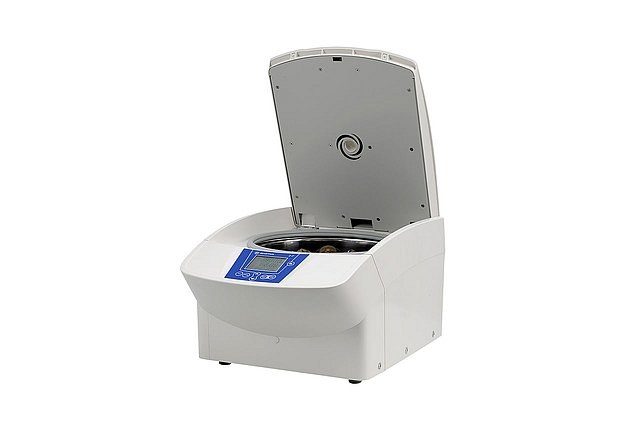

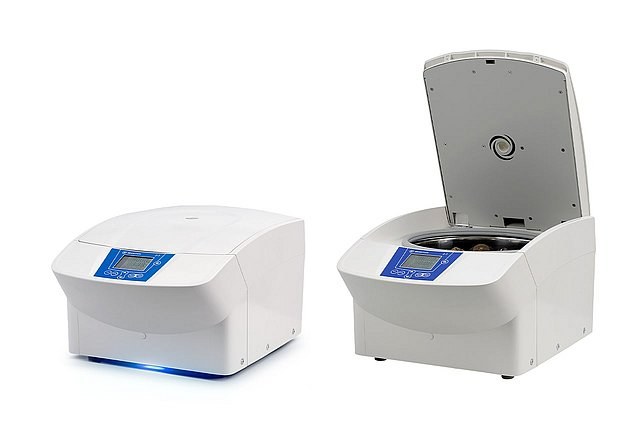

Sigma 2-7 Benchtop Centrifuge
Compact unrefrigerated benchtop centrifuge, up to 4 x 100 ml and 2,540 x g, with a blue LED run indicator, ten program slots and optional delayed start for blood collection tubes.
Key specifications
- Max. capacity, swing-out rotor
- 4 x 100 ml
- Max. capacity, fixed-angle rotor
- 30 x 15 ml
- Max. RCF
- 2,540 x g
- Max. speed
- 4,000 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 2-7 Benchtop Centrifuge
Request a quoteOverview
Product overview
The Sigma 2-7 is a compact benchtop centrifuge that combines high capacity with ergonomic operation and quiet running. Its maximum RCF of 2,540 x g suits clinical diagnostics, veterinary medicine, pharmaceutics, environmental analysis, industrial production, universities and research facilities.
A blue LED running indicator shows from a distance when a run has finished. Ten program locations are provided, and optional programmable standstill and start times support delayed starts, which Sigma developed for working with blood collection tubes in clinical IVD so the required clotting time can be preset.
Many swing-out and fixed-angle rotors, buckets and adapters accept tubes and flasks from 1.5 ml to 100 ml as well as microtiter and deepwell plates. An IVD model and clinic and cell culture packages are available.
Specifications
Technical specifications
17 parameters
Capacity
- Max. capacity, swing-out rotor
- 4 x 100 ml
- Max. capacity, fixed-angle rotor
- 30 x 15 ml
Performance
- Max. RCF
- 2,540 x g
- Max. speed
- 4,000 rpm
- Min. speed
- 100 rpm
- Max. speed / RCF, swing-out rotor
- 4,000 rpm / 2,486 x g
- Max. speed / RCF, fixed-angle rotor
- 4,000 rpm / 2,540 x g
- Noise level at max. speed (fixed-angle rotor 12073)
- 54 dB(A)
- Noise level at max. speed (swing-out rotor 11071 + bucket 13299 + Cover)
- 53 dB(A)
- Max. acceleration time (fixed-angle rotor 12073)
- 18 s
- Max. acceleration time (swing-out rotor 11071 + bucket 13299 + Cover)
- 13 s
- Max. braking time (fixed-angle rotor 12073)
- 14 s
- Max. braking time (swing-out rotor 11071 + bucket 13299 + Cover)
- 10 s
Electrical
- Power consumption
- 210 W
Dimensions & Weight
- Height x Width x Depth
- 293 x 378 x 535 mm
- Height with open lid
- 643 mm
- Weight without rotor
- 23 kg
Features
Key features
- 01
LED run indicator
A blue LED shows from far away whether the run has ended.
- 02
Program memory
Ten program storage locations.
- 03
Delayed start
Optional programmable standstill and start times, designed for blood collection tubes.
- 04
Rotor flexibility
Tubes and flasks from 1.5 to 100 ml, microtiter and deepwell plates.
- 05
Product options
IVD model and clinic and cell culture packages.
