Reference: 3-17KT

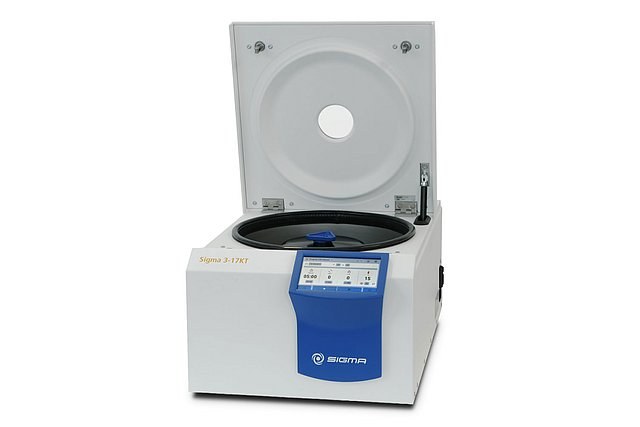

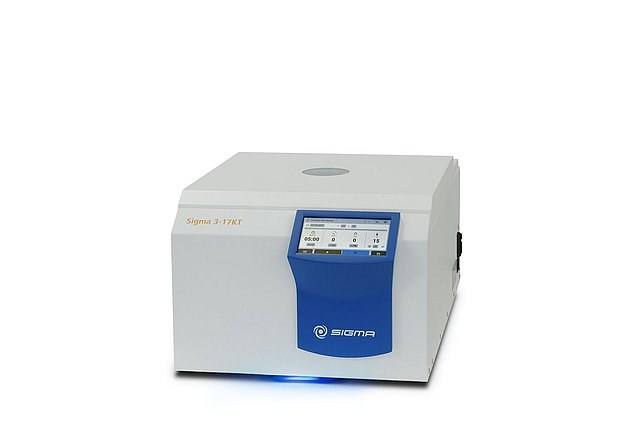

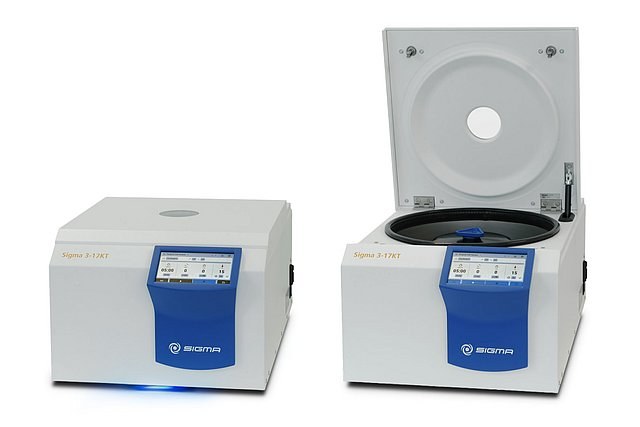

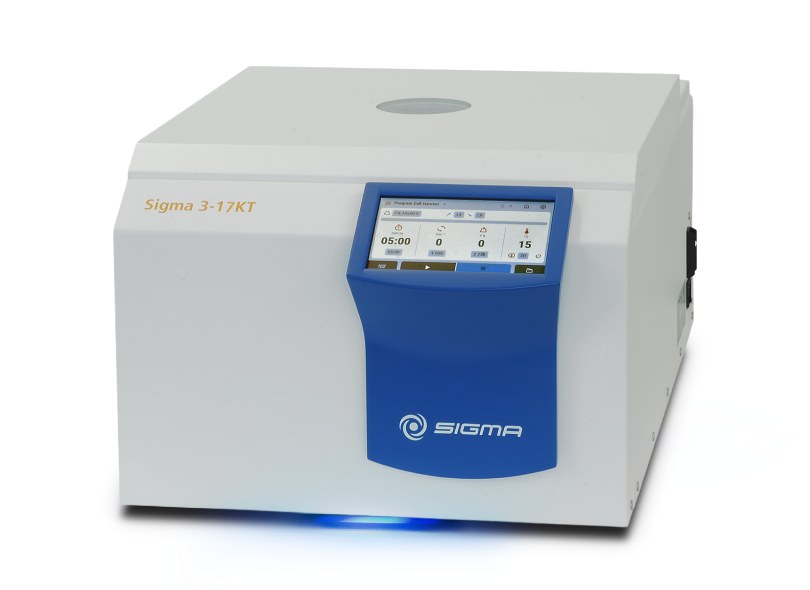

Sigma 3-17KT Refrigerated Benchtop Centrifuge with Touch Control
Compact refrigerated centrifuge, -20 to +40 °C, up to 4 x 400 ml and 25,559 x g, with Spincontrol T touchscreen, Rapid Temp pre-cooling and ECO Mode.
Key specifications
- Max. capacity, swing-out rotor
- 4 x 400 ml
- Max. capacity, fixed-angle rotor
- 6 x 94 ml
- Max. RCF
- 25,559 x g
- Max. speed
- 16,400 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 3-17KT Refrigerated Benchtop Centrifuge with Touch Control
Request a quoteOverview
Product overview
The Sigma 3-17KT pairs a compact design with powerful, precisely controlled cooling across -20 to +40 °C. A Rapid Temp button pre-cools the chamber and accessories to a defined temperature. Capacity is up to 4 x 400 ml, and RCF reaches 25,559 x g at 16,400 rpm.
A wide range of fixed-angle and swing-out rotors and accessories covers many vessel types. The Spincontrol T touch unit offers clear menus, quality management functions, run-data export via USB stick, service data retrieval through a QR code and support for the Sigma Timer app.
ECO Mode switches the unit to standby after a customisable time, dims the display and shuts off the compressor, saving energy and reducing noise in the lab. Non-refrigerated and IVD versions exist, and biosafe rotors and clinic and cell culture packages are available.
Specifications
Technical specifications
21 parameters
Capacity
- Max. capacity, swing-out rotor
- 4 x 400 ml
- Max. capacity, fixed-angle rotor
- 6 x 94 ml
Performance
- Max. RCF
- 25,559 x g
- Max. speed
- 16,400 rpm
- Min. speed
- 100 rpm
- Max. speed / RCF, swing-out rotor
- 4,500 rpm / 3,894 x g
- Max. speed / RCF, fixed-angle rotor
- 16,400 rpm / 25,559 x g
- Noise level at max. speed (FA-24x2)
- ≤ 61 dB(A)
- Noise level at max. speed (SB-4x400)
- ≤ 56 dB(A)
- Max. acceleration time (FA-24x2)
- ≤ 42 s
- Max. acceleration time (SB-4x400)
- ≤ 78 s
- Max. braking time (FA-24x2)
- ≤ 46 s
- Max. braking time (SB-4x400)
- ≤ 68 s
Temperature
- Temperature setting range
- -20 – +40 °C
Electrical
- Power consumption
- 1,400 W
Dimensions & Weight
- Height x Width x Depth
- 337 x 460 x 716 mm
- Height with open lid
- 755 mm
- Weight without rotor
- 75 kg
Refrigeration
- Refrigerant
- R452a
- Refrigerant charge / pressure
- 0.18 / 27 kg / bar
- CO2 equivalent
- 0.385 t
Features
Key features
- 01
Fast, fine-tuned cooling
Temperature range -20 to +40 °C with Rapid Temp pre-cooling.
- 02
Touch control
Spincontrol T with quality management and USB run-data export.
- 03
QR service data
Service-relevant data can be retrieved via QR code.
- 04
Sigma Timer app
Usable with the Sigma Timer app.
- 05
ECO Mode
Standby after a set time with display dimming and compressor off.
