Reference: 3-18KS

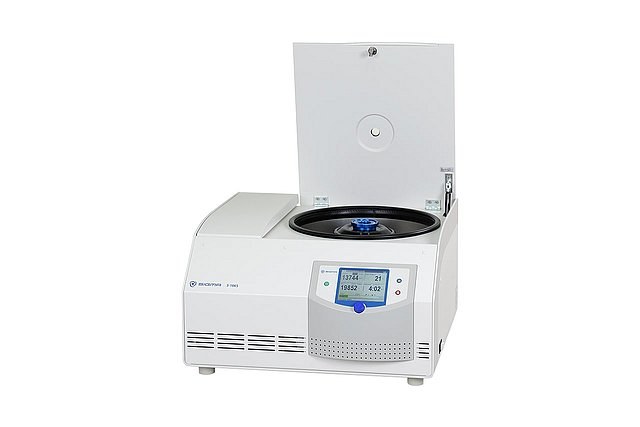

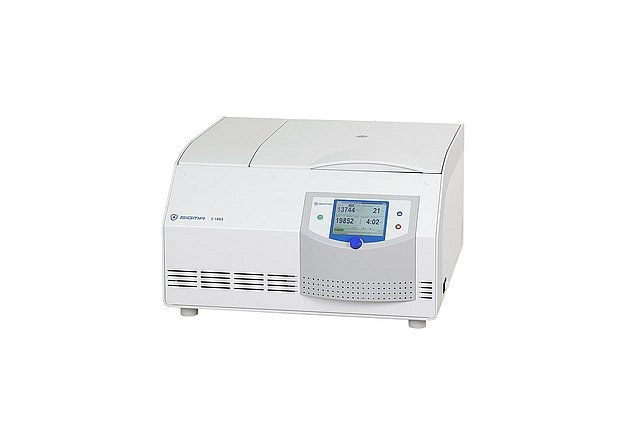

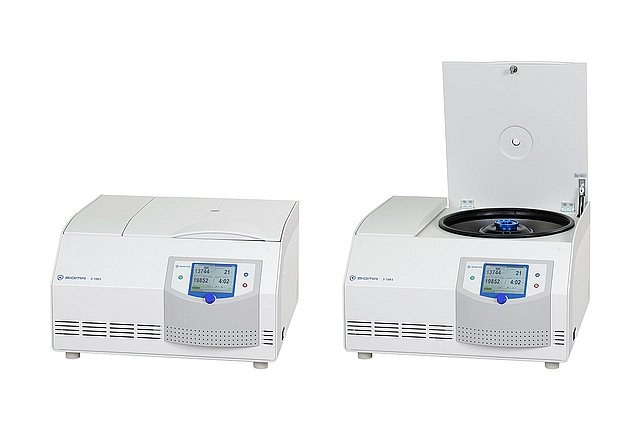

Sigma 3-18KS Refrigerated Benchtop Centrifuge
High-end refrigerated benchtop centrifuge, 30,070 x g at 18,000 rpm, up to 4 x 400 ml, with Spincontrol S one-knob control, automatic lid lock and many biosafe rotor options.
Key specifications
- Max. capacity, swing-out rotor
- 4 x 400 ml
- Max. capacity, fixed-angle rotor
- 6 x 94 ml
- Max. RCF
- 30,070 x g
- Max. speed
- 18,000 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 3-18KS Refrigerated Benchtop Centrifuge
Request a quoteOverview
Product overview
The Sigma 3-18KS is meant for users who place very high demands on a refrigerated benchtop centrifuge and want a broad range of operating options. RCF exceeds 30,000 x g, and the patented Spincontrol S one-knob controller with automatic lid lock keeps operation simple.
Capacity is up to 4 x 400 ml. A large selection of fixed-angle and swing-out rotors, buckets and adapters, including many biosafe configurations, is offered. Because high-RCF fixed-angle rotors can be used, Sigma says the unit covers a broader application spectrum than competing devices.
Options include an IVD version, inert gas port, biosafe rotors and cell culture packages. A refrigerated and heated variant, the 3-18KHS, is also offered.
Specifications
Technical specifications
21 parameters
Capacity
- Max. capacity, swing-out rotor
- 4 x 400 ml
- Max. capacity, fixed-angle rotor
- 6 x 94 ml
Performance
- Max. RCF
- 30,070 x g
- Max. speed
- 18,000 rpm
- Min. speed
- 100 rpm
- Max. speed / RCF, swing-out rotor
- 14,000 rpm / 16,215 x g
- Max. speed / RCF, fixed-angle rotor
- 18,000 rpm / 30,070 x g
- Noise level at max. speed (fixed-angle rotor 12154)
- ≤ 55 dB(A)
- Noise level at max. speed (swing-out rotor 11180 + bucket 13190)
- ≤ 60 dB(A)
- Max. acceleration time (fixed-angle rotor 12154)
- ≤ 29 s
- Max. acceleration time (swing-out rotor 11180 + bucket 13190)
- ≤ 18 s
- Max. braking time (fixed-angle rotor 12154)
- ≤ 47 s
- Max. braking time (swing-out rotor 11180 + bucket 13190)
- ≤ 21 s
Temperature
- Temperature setting range
- -20 to +40 °C
Electrical
- Power consumption
- 1,010 W
Dimensions & Weight
- Height x Width x Depth
- 355 x 630 x 600 mm
- Height with open lid
- 785 mm
- Weight without rotor
- 78 kg
Refrigeration
- Refrigerant
- R513a
- Refrigerant charge / pressure
- 0.405 / 23 kg / bar
- CO2 equivalent
- 0.256 t
Features
Key features
- 01
High RCF
Up to 30,070 x g at 18,000 rpm.
- 02
Spincontrol S
Patented one-knob controller with automatic lid lock.
- 03
Large capacity
Up to 4 x 400 ml swing-out or 6 x 94 ml fixed-angle.
- 04
Biosafe configurations
Many biosafe swing-out and fixed-angle rotor options.
- 05
Options
IVD version, inert gas port, cell culture packages.
