Reference: 3-18KT

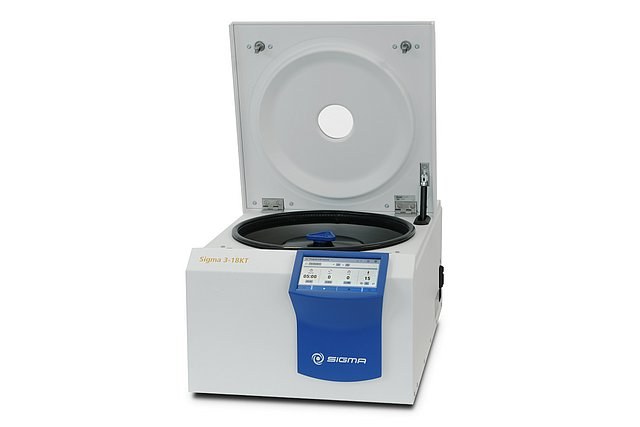

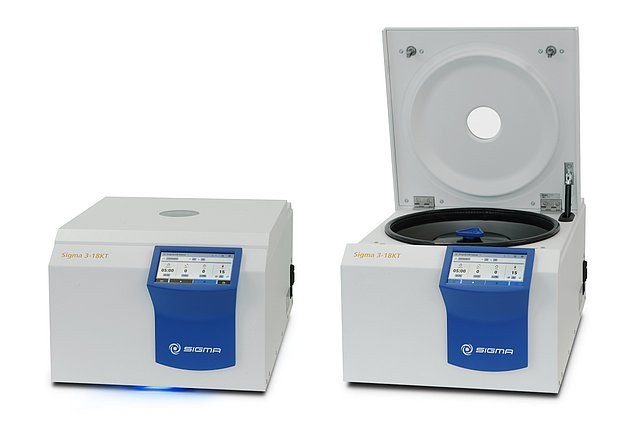

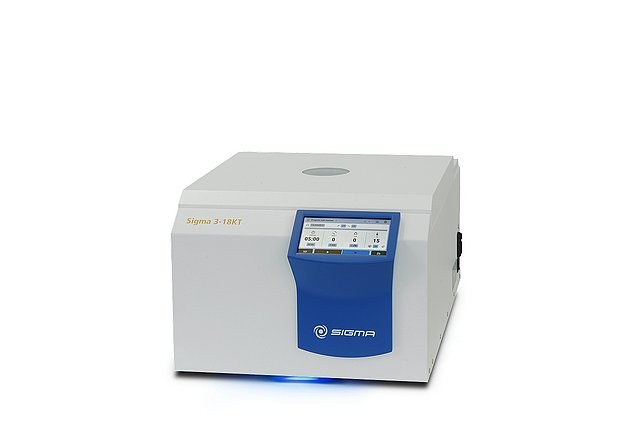

Sigma 3-18KT Refrigerated Benchtop Centrifuge with Touch Control
Premium refrigerated benchtop centrifuge with over 30,000 g, +4 °C sample temperature at maximum speed, Spincontrol T Expert touch control and an aerosol-tight 8 x 50 ml rotor.
Key specifications
- Max. capacity, swing-out rotor
- 4 x 400 ml
- Max. capacity, fixed-angle rotor
- 6 x 94 ml
- Max. RCF
- 31,655 x g
- Max. speed
- 18,000 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 3-18KT Refrigerated Benchtop Centrifuge with Touch Control
Request a quoteOverview
Product overview
The Sigma 3-18KT is aimed at users with strict demands on performance and process reliability in minimal space. It offers a versatile rotor range, RCF of 31,655 x g at 18,000 rpm and a guaranteed sample temperature of 4 °C at maximum speed.
A highlight is the FA-8x50-V fixed-angle rotor for 8 x 50 ml conical vessels: it meets the latest aerosol-tightness standard, has the RapidTurn lid mechanism for quick opening and closing, offers the highest capacity in its class and centres the pellet with its 40 degree angle.
The Spincontrol T Expert controller adds quality management, USB export of operating data, service data via QR code, Sigma Timer app support and optional user management and export mode. ECO Mode can switch off refrigeration and dim the display after a preset time. IVD, biosafe-rotor and clinic and cell culture options are available.
Specifications
Technical specifications
21 parameters
Capacity
- Max. capacity, swing-out rotor
- 4 x 400 ml
- Max. capacity, fixed-angle rotor
- 6 x 94 ml
Performance
- Max. RCF
- 31,655 x g
- Max. speed
- 18,000 rpm
- Min. speed
- 100 rpm
- Max. speed / RCF, swing-out rotor
- 4,700 rpm / 4,248 x g
- Max. speed / RCF, fixed-angle rotor
- 18,000 rpm / 31,655 x g
- Noise level at max. speed (FA-24x2)
- ≤ 58 dB(A)
- Noise level at max. speed (SB-4x400)
- ≤ 62 dB(A)
- Max. acceleration time (FA-24x2)
- ≤ 25 s
- Max. acceleration time (SB-4x400)
- ≤ 51 s
- Max. braking time (FA-24x2)
- ≤ 22 s
- Max. braking time (SB-4x400)
- ≤ 41 s
Temperature
- Temperature setting range
- -20 – +40 °C
Electrical
- Power consumption
- 1,400 W
Dimensions & Weight
- Height x Width x Depth
- 337 x 460 x 716 mm
- Height with open lid
- 755 mm
- Weight without rotor
- 80 kg
Refrigeration
- Refrigerant
- R452a
- Refrigerant charge / pressure
- 0.18 / 27 kg / bar
- CO2 equivalent
- 0.385 t
Features
Key features
- 01
High speed and RCF
18,000 rpm and 31,655 x g.
- 02
FA-8x50-V rotor
Aerosol-tight, RapidTurn lid, 40 degree angle, highest capacity in class.
- 03
Spincontrol T Expert
Touch menu with quality management, USB export, QR service data, optional user management.
- 04
Sigma Timer app
Compatible with the Sigma Timer app.
- 05
ECO Mode
Optional refrigeration shut-off and display dimming after a preset time.
