Reference: 4-16S

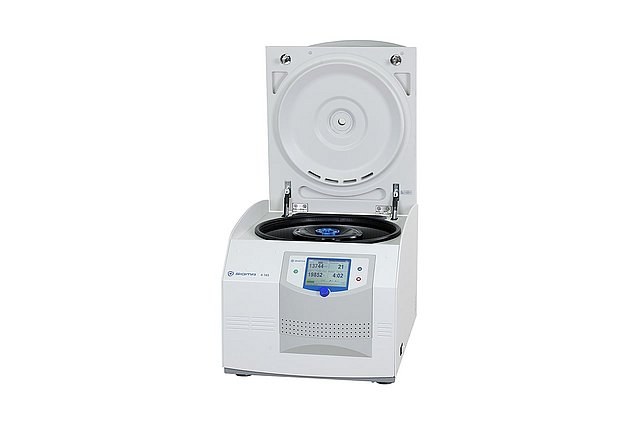

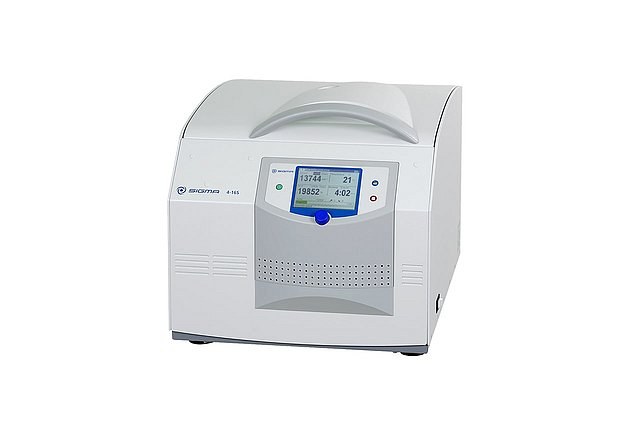

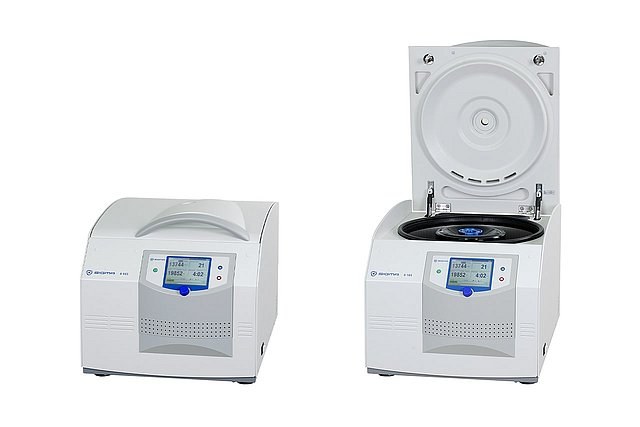

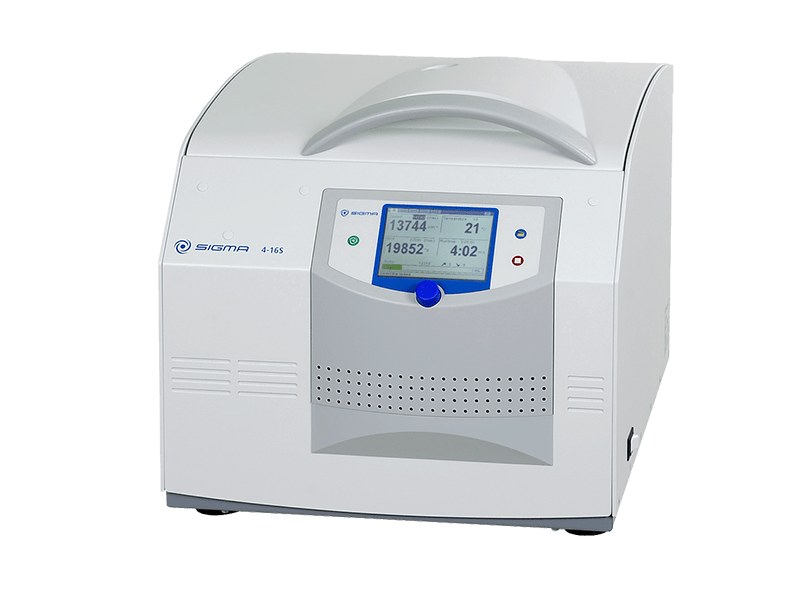

Sigma 4-16S Benchtop Centrifuge

Unrefrigerated benchtop centrifuge with up to 4 x 750 ml swing-out or 6 x 250 ml fixed-angle capacity, 21,917 x g and Spincontrol S one-knob control.

Key specifications

Max. capacity, swing-out rotor
4 x 750 ml
Max. capacity, fixed-angle rotor
6 x 250 ml
Max. RCF
21,917 x g
Max. speed
13,500 rpm
  • Configured to your application by our specialists
  • Installed and commissioned on site
  • Training and after-sales support across Jordan, the GCC and MENA

Overview

Product overview

The Sigma 4-16S is a benchtop centrifuge with versatile rotor configurations and outstanding capacity. Large specimen volumes are handled efficiently with up to 4 x 750 ml in a swing-out rotor or 6 x 250 ml in a fixed-angle rotor, and smooth running gives reproducible sedimentation results.

Many swing-out and fixed-angle rotors, buckets and adapters are offered, including biosafe configurations, for tubes and flasks from 0.2 to 750 ml as well as microtiter and deepwell plates. Sigma highlights a 6 x 250 ml rotor with 13,131 x g maximum RCF and the ability to centrifuge 50 ml culture tubes above 23,000 x g.

The patented Spincontrol S one-knob controller offers 30 acceleration and 30 braking profiles, named protocol storage, automatic rotor identification, run-time and speed monitoring and password-protected access. Suitable for research labs, hospitals, universities, pharmaceutical labs, cell culture and biotechnology. Refrigerated 4-16KS and refrigerated-and-heated 4-16KHS versions exist.

Specifications

Technical specifications

17 parameters

Capacity

Max. capacity, swing-out rotor
4 x 750 ml
Max. capacity, fixed-angle rotor
6 x 250 ml

Performance

Max. RCF
21,917 x g
Max. speed
13,500 rpm
Min. speed
100 rpm
Max. speed / RCF, swing-out rotor
5,700 rpm / 5,485 x g
Max. speed / RCF, fixed-angle rotor
13,500 rpm / 21,917 x g
Noise level at max. speed (fixed-angle rotor 12449)
≤ 58 dB(A)
Noise level at max. speed (swing-out rotor 11660 + bucket 13450 + Cover)
≤ 65 dB(A)
Max. acceleration time (fixed-angle rotor 12449)
≤ 26 s
Max. acceleration time (swing-out rotor 11660 + bucket 13450 + Cover)
≤ 21 s
Max. braking time (fixed-angle rotor 12449)
≤ 37 s
Max. braking time (swing-out rotor 11660 + bucket 13450 + Cover)
≤ 23 s

Electrical

Power consumption
1,050 W

Dimensions & Weight

Height x Width x Depth
489 x 496 x 650 mm
Height with open lid
940 mm
Weight without rotor
82 kg
Features

Key features

  • 01

    Large capacity

    4 x 750 ml swing-out or 6 x 250 ml fixed-angle.

  • 02

    Spincontrol S

    Patented one-knob controller with 30 acceleration and 30 braking profiles.

  • 03

    Process library

    Routine protocols stored with user-defined names.

  • 04

    Safety

    Automatic rotor identification, run-time and speed monitoring, password-protected access.

  • 05

    Options

    Biosafe swing-out and fixed-angle rotors, RS 232 interface.
